3 Description of Parts

3.1

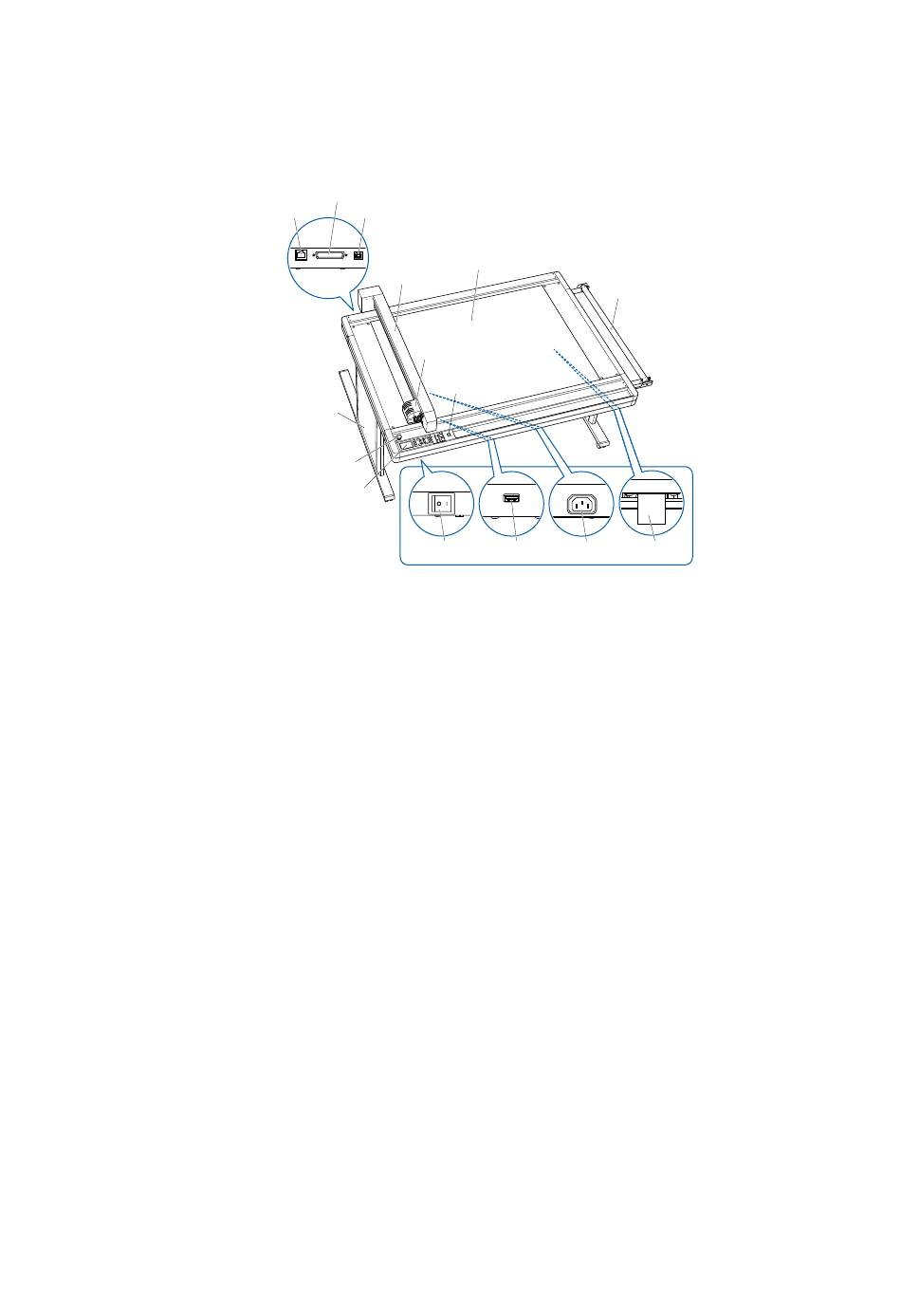

Plotter Nomenclature

The names of the plotter parts are as follows.
(12) Network interface connector
(1) Control pane ........................................... Used to access various plotter functions.
(2) Power switch .......................................... Used to turn the plotter on and off.
(3) AC line inlet ............................................ Inlet where the power cable is connected.
(4) Vacuum hose connection port ................ Connect to the blower with a hose. (2 inch) (VC model only)
(5) Media stocker ......................................... Set a roll paper (media material) after passing the shaft through
(6) Writing panel .......................................... Cutting/Plotting/Creasing work is performed on the panel.
(7) CHART HOLD key.................................. Lamp lights up when the [CHART HOLD] key is pressed, you
(8) Tool carriage ........................................... Part to drive the cutter/pen.
(9) Y bar ....................................................... Holds the tool carriage; moves left/right.
(10) USB interface connector ........................ Used to connect the plotter to the computer with a USB interface
(11) RS-232C interface connector ................. Used to connect the plotter to the computer with a RS-232C
(12) Network (LAN) interface connector ........ The connector used when connecting this plotter with the
(13) Stand ...................................................... A stand to put the machine on.
(14) Emergency Stop Switch ......................... Press to stop the unit. Please use this in case of emergency.
(15) USB memory dedicated port .................. The port that is used only for the USB memory.
FCX2000-UM-251-9370
(11) RS-232C interface connector
(10) USB interface connector
(9) Y bar
(8) Tool carriage
(13) Stand
(14) Emergency Stop Switch
(1) Control panel
(2) Power switch
the roll paper.
can see that the electrostatic adsorption is functioning. Lamp
is turned off by pressing again, the electrostatic adsorption is
released. (ES model only)
cable.
interface cable.
network (LAN)interface cable.
(6) Writing panel
(5) Media stocker
(7) CHART HOLD key
(15) USB memory (3) AC line inlet (4) Vacuum hose
dedicated port
Back side of the main body
3-1
3 Description of Parts
connection port (2 inch)
