9.13 Adjusting the Tool Interval

This enables adjustment of the distance between the origins for Tool 1 and Tool 2.
Perform this procedure if adjustment values could not copy from the SUB-NVRAM when replacing the main
board or if the Pen Block Assembly was replaced.
Note:
Pens are used to draw lines for this adjustment. As described below, mount pens in the Tool 1 and Tool 2
positions, then specify their conditions.
How to adjust the Tool Interval
(1) Load a medium that is suitable for plotting.
(2) Mount pens in the Tool 1 and Tool 2 positions.
(3) Set the plotting conditions to the following settings with the normal mode:
Force: 12, Speed: 40, Quality: 3, Tool: Pen
(4) Turn on the power while pressing the SLOW and ENTER keys.

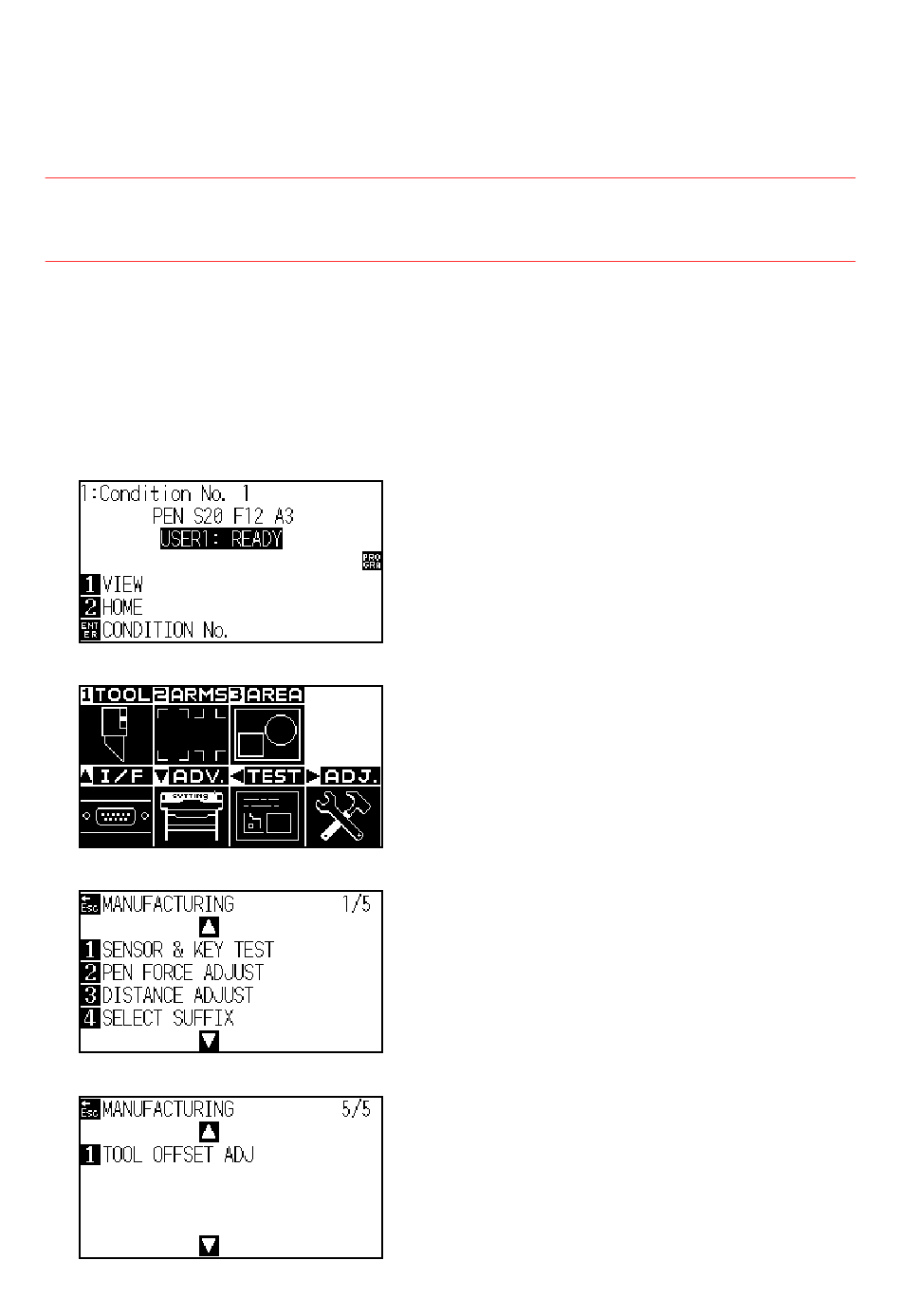

(5) Press the PAUSE/MENU key at the following menu.
(6) The following menu is displayed, and then press the RIGHT ARROW key (ADJ).
(7) The following menu is displayed.
(8) Press the DOWN ARROW key to display the following menu.
