8 DISASSEMBLY AND ASSEMBLY
8.4 Belt tension & Gear Adjustment
8.4.1

Adjusting the X Motor Belt Tension

(1) Detach the left top cover (Refer to the section 8.1.6.).

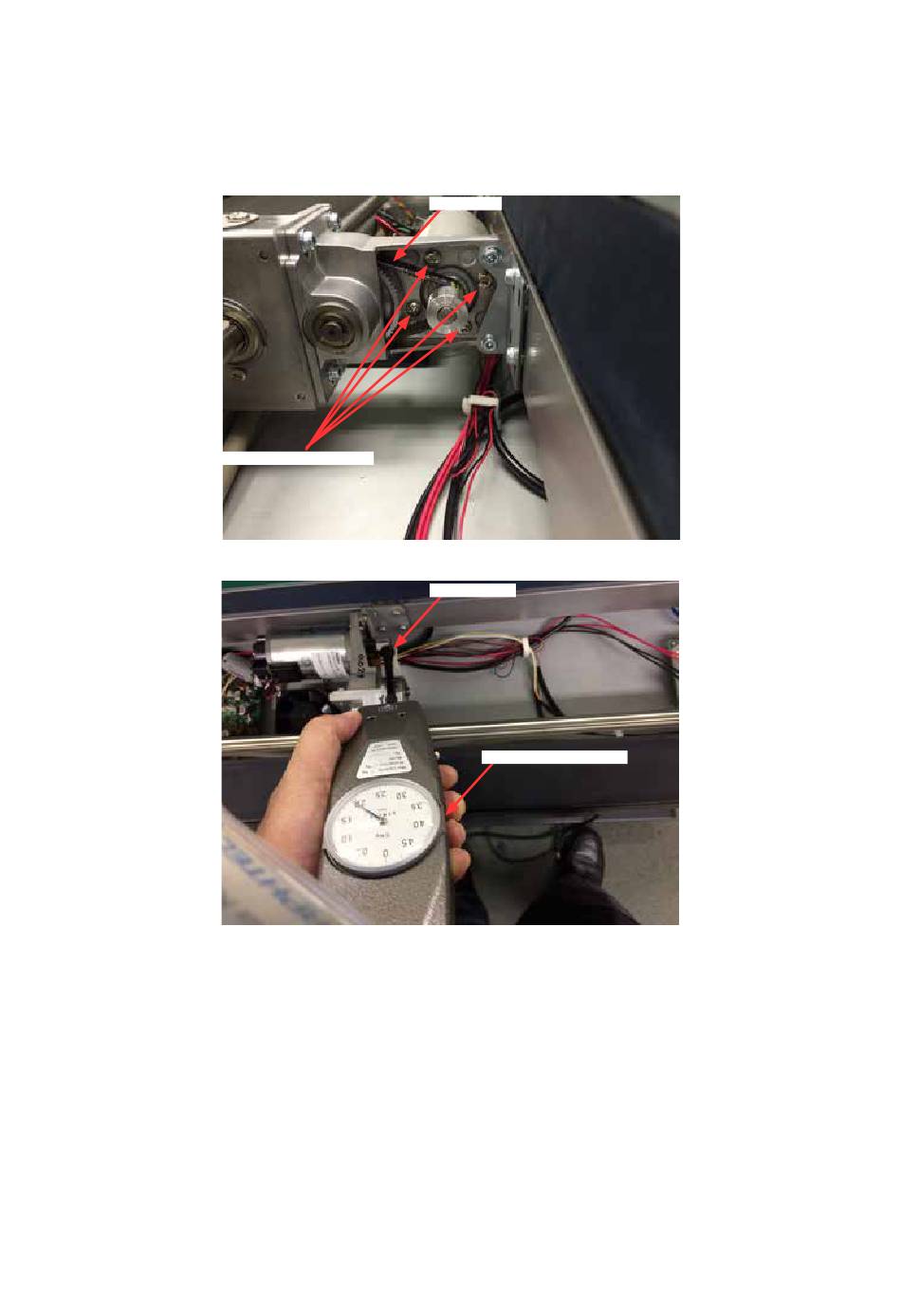

(2) Loosening the four M4L8 binding head screws holding the X motor.
X Motor belt
M4L8 binding head screw
(3) Push the X motor pulley with a 5 kgf push-pull gauge as shown in the picture below.
X Motor pulley
Push-Pull tension gauge
(4) Adjust the belt tension to be 2.0 kgs +/- 0.2, then tighten the four M4L8 binding head screws.
FCX2000-UM-251-9370 8-43
