Cutter Plunger - GRAPHTEC FCX2000 Service Manual

3.2

Cutter Plunger

This chapter describes the structures and types of the cutter plungers (cutter pens).
Cutter Plunger Nomenclature
There are three different plungers to suit the diameter of the cutter blade to be mounted (the φ1.5 mm cutter
plunger is provided as a standard accessory).
PHP35-CB09-HS/PHP35-CB15-HS
Cutter blade Plunger
Plunger-cap

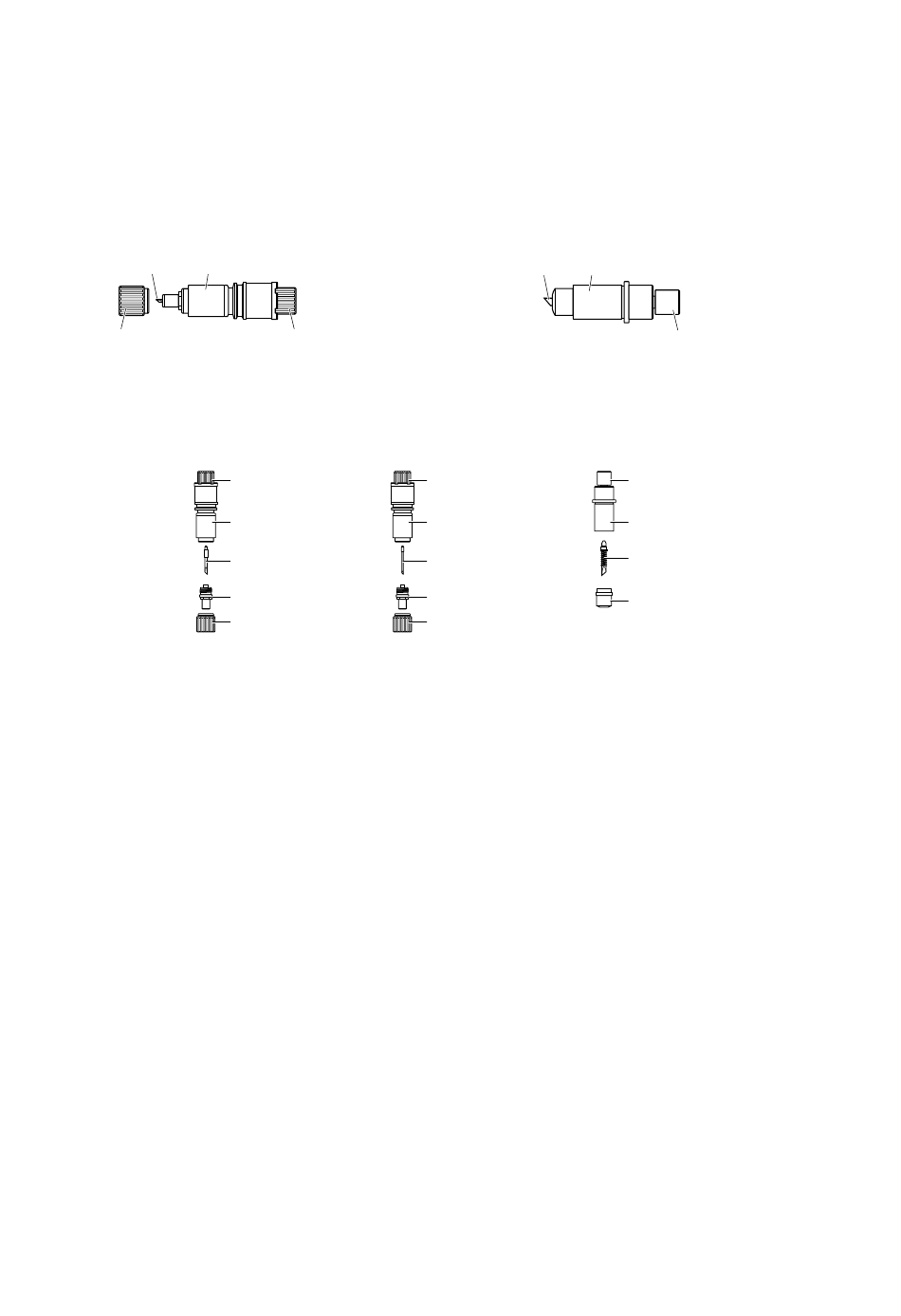

Structure of Cutter Plunger
φ1.5 mm diameter cutter Plunger
FCX2000-UM-251-9370
Blade-length adjustment knob
(Blue: For φ0.9 mm-diameter blades)
(Red: For φ1.5 mm-diameter blades)
φ0.9 mm diameter cutter Plunger
Blade-length adjustment knob
(Red)
Plunger
φ1.5 mm diameter cutter blade
Chuck
Plunger-cap
PHP34-CB30-HS
Cutter blade
Plunger
φ3.0 mm diameter cutter Plunger
Blade-length adjustment knob
(Blue)
Plunger
φ0.9 mm diameter cutter blade
Chuck
Plunger-cap
3-3
3 Description of Parts
Blade-length adjustment knob
(For φ3.0 mm-diameter blades)
Blade-length adjustment knob
Plunger
φ3.0 mm diameter cutter blade
Chuck
