2.7.2

Installing the Warning Light Option OPH-A41

This option of FCX2000 is not installing the bracket and Warning Light cables.
Therefore, this option needs to install the bracket and Warning Light cables before installing the Warning
Light Assembly.
Installing procedure

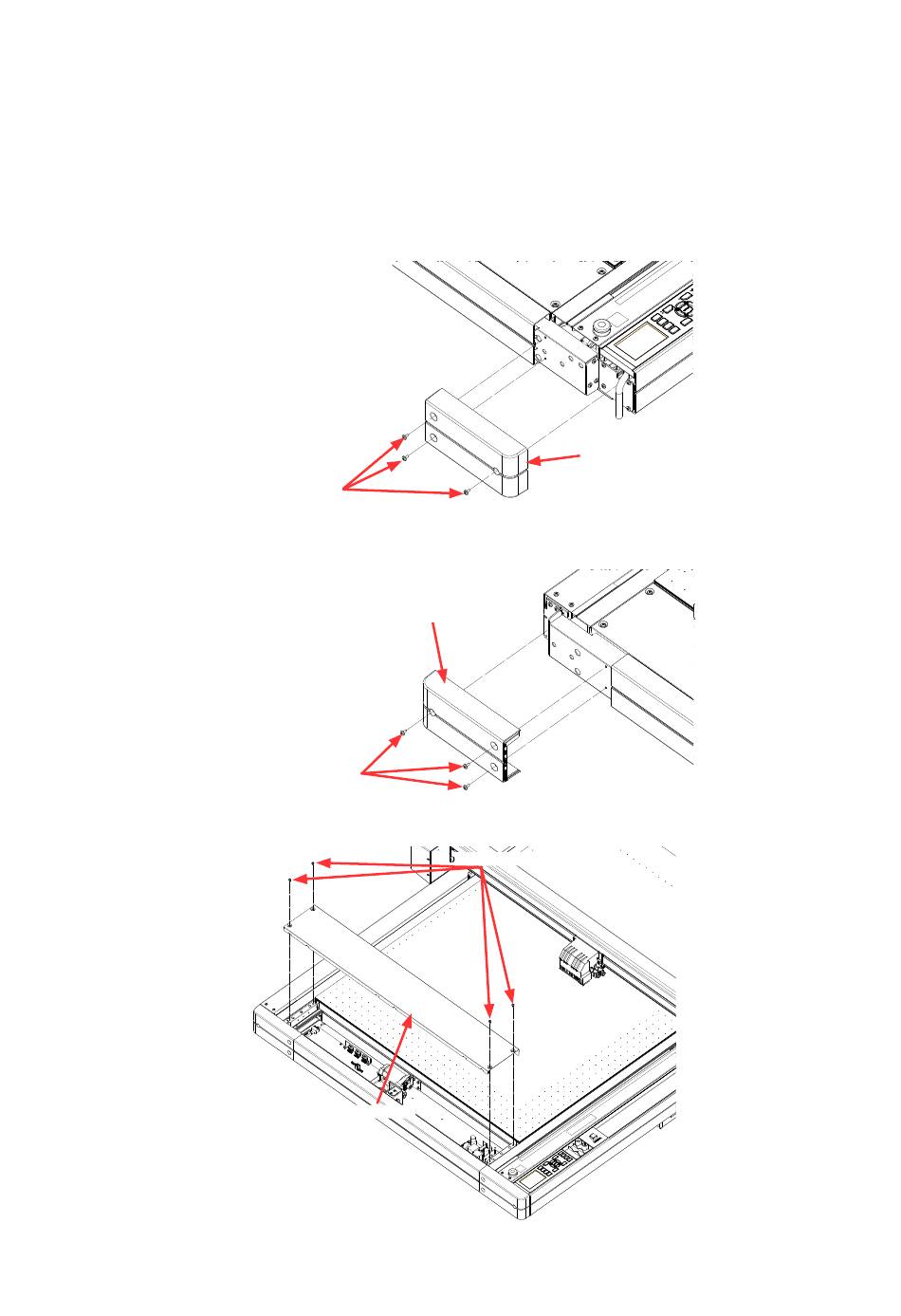

(1) Remove the three M4L8 binding head screws holding the left front corner cover, and then detach the left
front corner cover.
M4L8 binding head screw
(2) Remove the three M4L8 binding head screws holding the left rear corner cover, and then detach the left
rear corner cover.
M4L8 binding head screw
(3) Remove the four M4L8 binding head screws holding the left top cover, and then detach the left top cover.
FCX2000-UM-251-9370
Left rear corner cover
M4L8 binding head screw
Left top cover
2-14
2 Setup procedure
Left front corner cover
