GRAPHTEC FCX2000 Service Manual page 67

To make 3 cuts with set value and ±1 of set value
(1) Load the media for test cutting in the plotter.
(2) Press the [COND/TEST] key in the default screen.

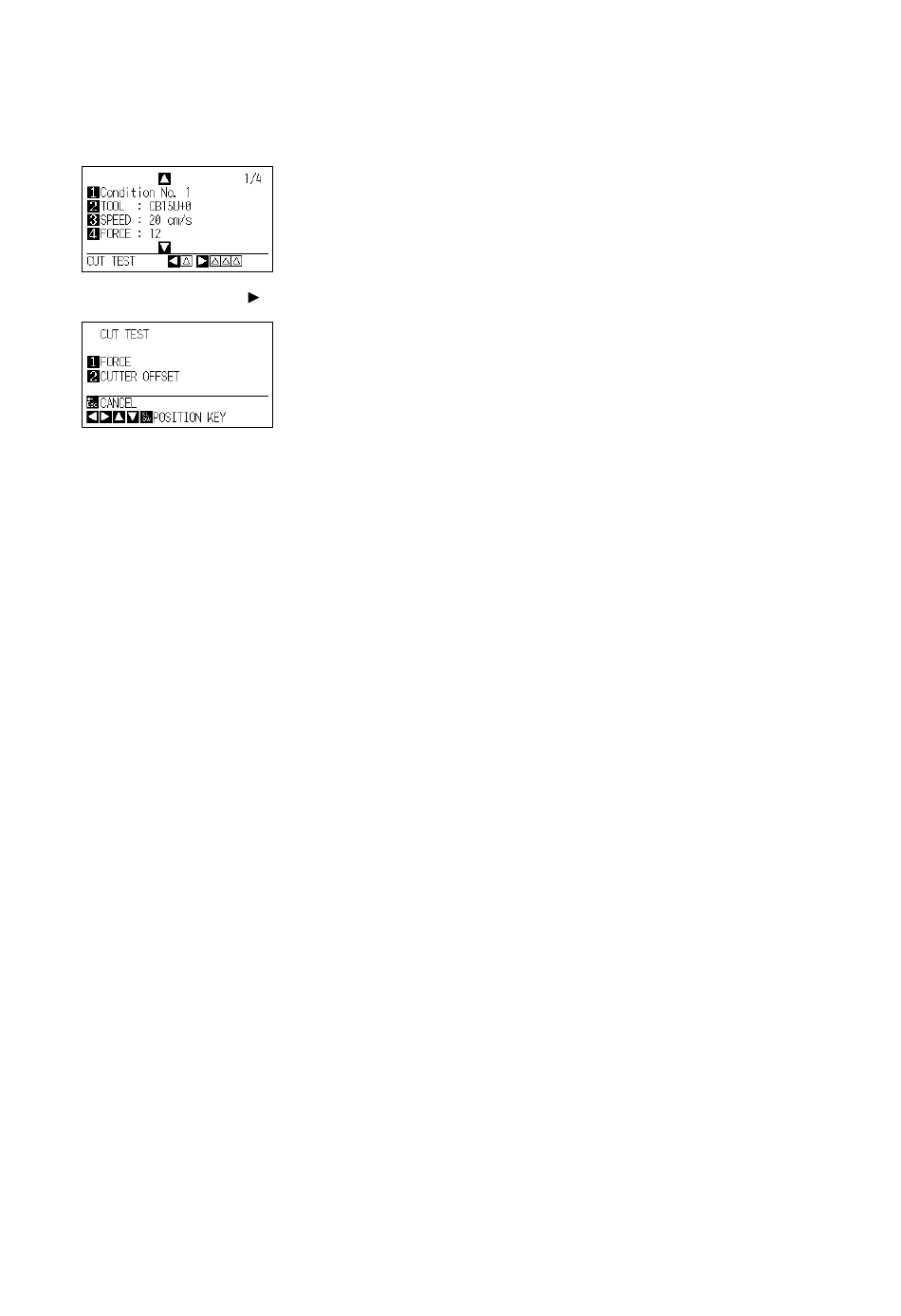

CONDITION setting screen (1/4) is displayed.
(3) Press the POSITION ( ) key (CUT TEST).
(4) Press the POSITION (▲▼▲▼) keys to move tool carriage to the location you wish to perform the test
cutting.
(5) Press the [1] key (FORCE).
3 cutting test patterns are cut, with current FORCE in the center, and 1 each of FORCE increased and
decreased for 1.
(6) Press the [ENTER] key after completion.
It will return to CUT TEST menu screen.
(7) Press the [2] key (CUTTER OFFSET).
3 cutting test patterns are cut, with current CUTTER OFFSET in the center, and 1 each of CUTTER
OFFSET increased and decreased for 1.
(8) Press the [ENTER] key after completion.
It will return to CUT TEST menu screen.
(9) Press the [COND/TEST] key.
It will return to default screen.
