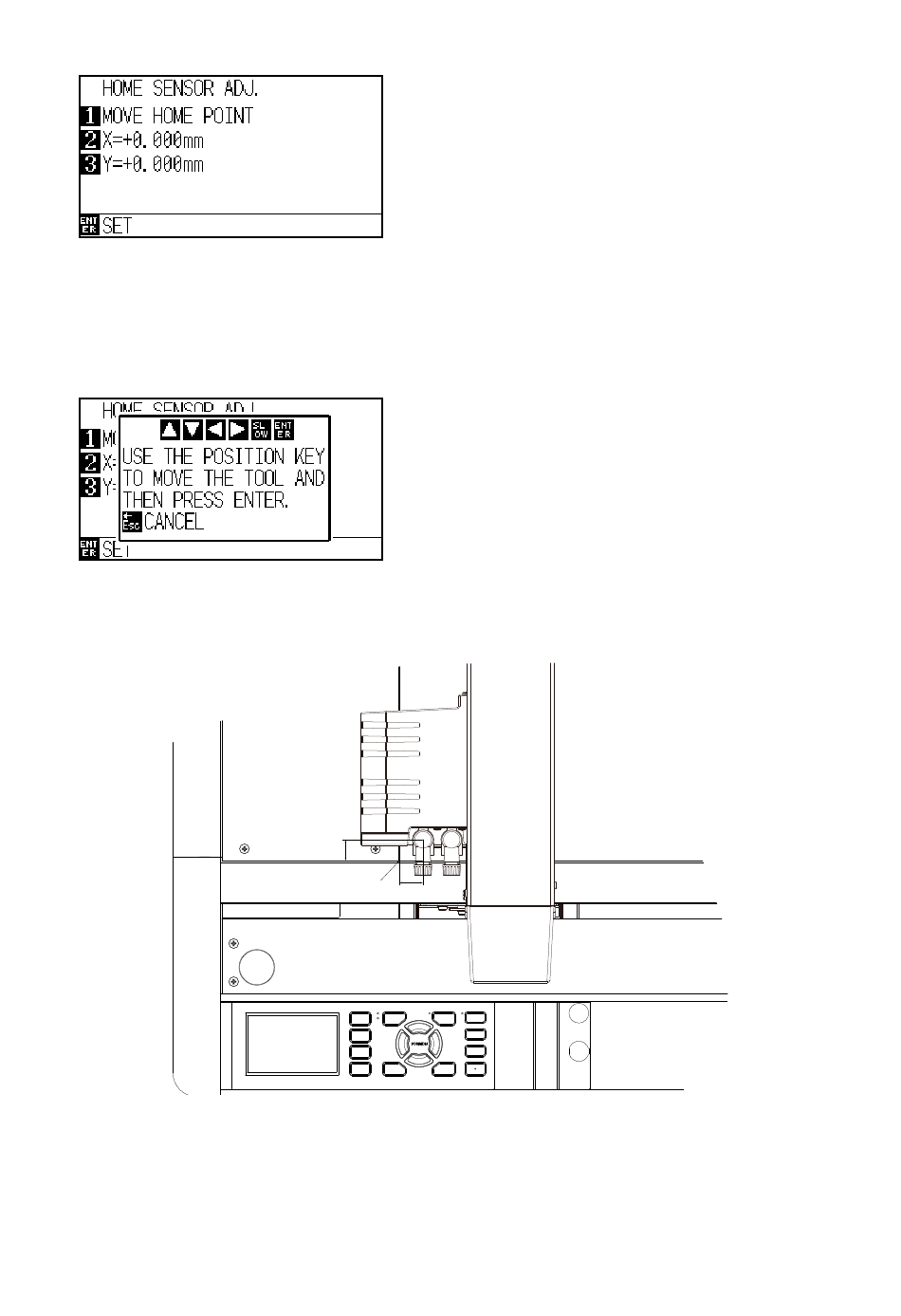

(6) Press the F2 key (HOME SENSOR ADJ.) to display the following menu.
(7) Press the F1 key (MOVE HOME POINT) to set the new home position if the home sensor position or the
home sensor dog position was changed. Follow the Step (8).
Press the F2 key or F3 key to input the home position adjustment value which is shown on the factory
adjustment values label. Skip to the Step (12).
(8) The following menu is displayed when the F1 key (MOVE HOME POINT) is pressed.
(9) Attach a pen-type magnifier to the No.1 tool holder, and then move tool position to the home position as
shown in the picture below by the POSITION keys. (Attach the Fiber tip pen if you don't have a pen-type
magnifier.)
(10) After it positioned to the new home position, press the ENTER key.
(11) Skip to the Step (19)
FCX2000-UM-251-9370
17.5 mm
The lower left corner of writing panel.
20.0 mm
9 ELECTRICAL ADJUSTMENTS
9-17
