GRAPHTEC FCX2000 Service Manual page 164

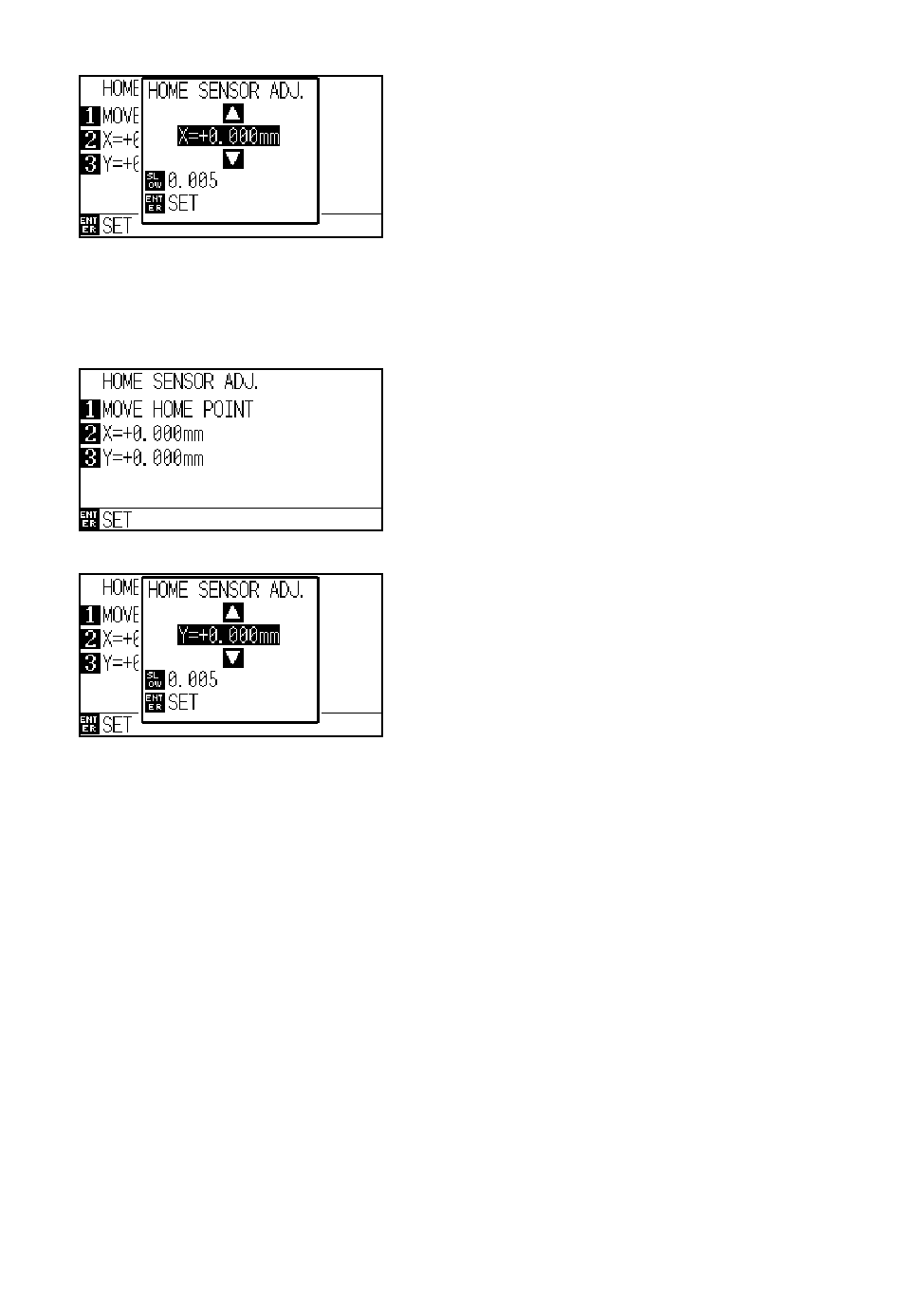

(12) The following menu is displayed when the F2 key is pressed in the step (7).
(13) Input the X home position adjustment value which is shown on the factory adjustment values label.
Use the upper or DOWN ARROW key to change the value.
(14) Press the ENTER key after the X home position adjustment value is input.
(15) Following menu is displayed.
(16) Press the F3 key to display the following menu.
(17) Input the Y home position adjustment value which is shown on the factory adjustment values label.
Use the upper or DOWN ARROW key to change the value.
(18) Press the ENTER key after the Y home position adjustment value is input.
(19) Record the adjusted values to the factory adjustment values label when the adjustment values are
changed.
