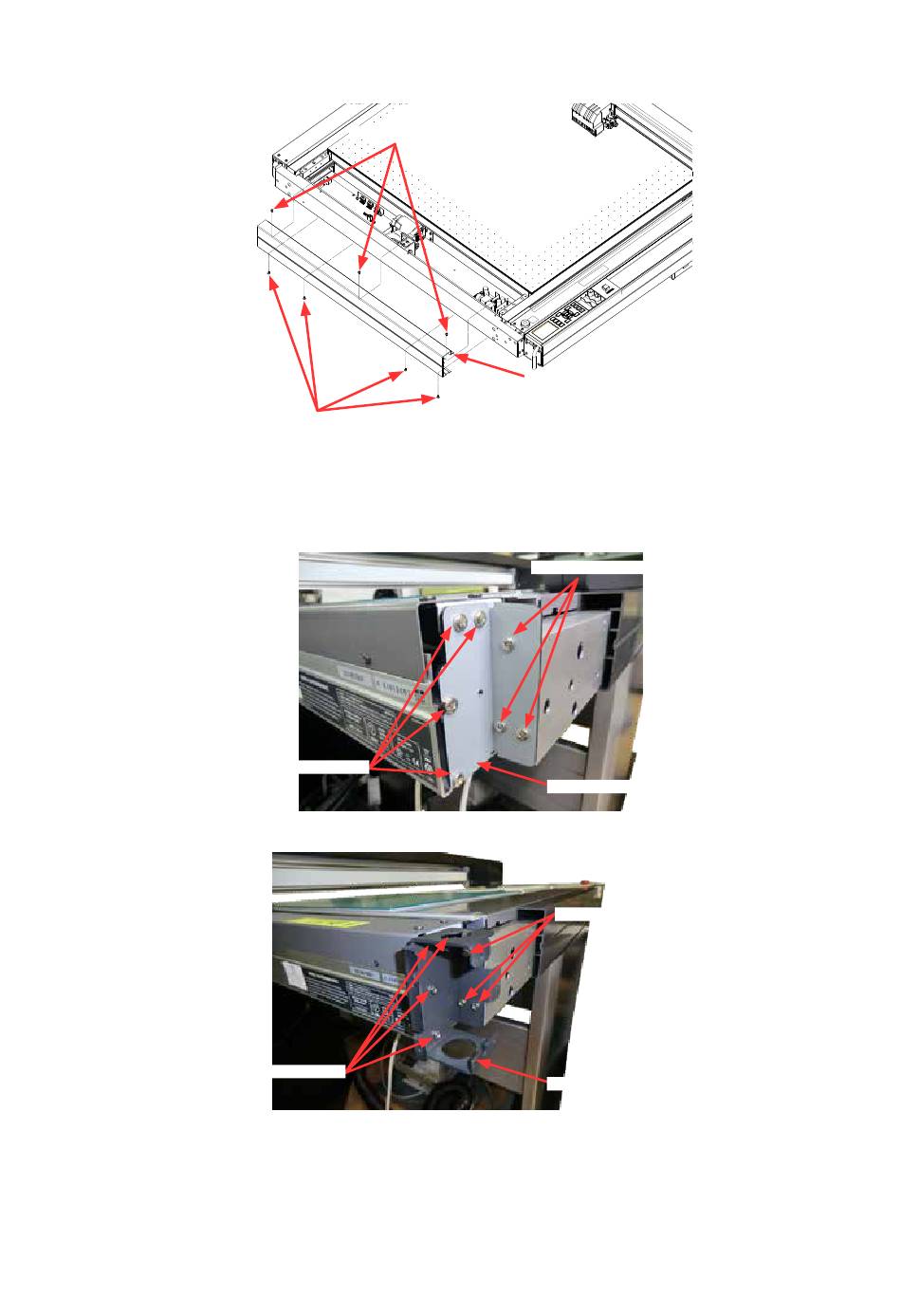

(4) Remove the seven M4L8 binding head screws holding the left side cover, and then detach the left side
cover.
(5) Remove the seven M4L8 binding head screws holding the rear left frame bracket, and then detach the
rear left frame bracket.
(6) Install the FRAME_ANGLE_P by using seven M4L8 binding head screws.
M4L8 binding head screw
FCX2000-UM-251-9370
M4L8 binding head screw
M4L8 binding head screw
M4L8 binding head screw
Left side cover
M4L8 binding head screw
Rear left frame bracket
M4L8 binding head screw
FRAME_ANGLE_P
2-15
2
Setup procedure
