3.3 Replacing the Cutter Blade

Warning : To avoid injury, handle the cutter blades carefully.
Various types of plunger are available which correspond to the diameter and type of the blade used.
Check the cutter blade you are going to use and its appropriate cutter offset value against the table below.
Cutter pen
PHP32-CB09
PHP32-CB15
PHP31-CB15
Replacing the Blade
The procedure for blade replacement varies with the type of cutter pen used.

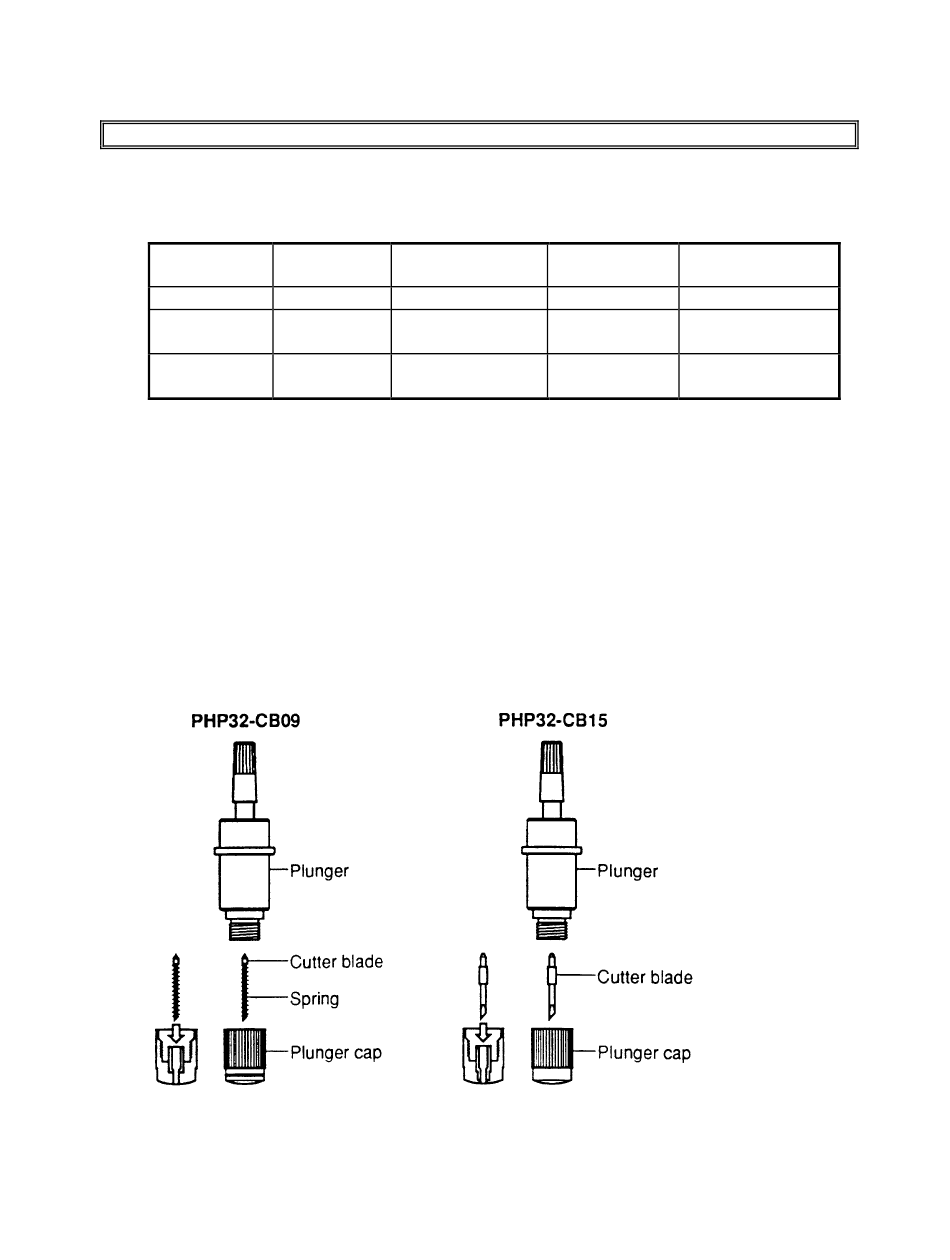

• PHP32-CB09 and PHP32-CB15 cutter pens for super-steel blades
(1) Remove the plunger cap from the plunger by turning it in the counterclockwise direction.
(2) Remove the blade from the cap.
(3) Stand the cap upright, and insert the new blade, together with the spring if the blade is a CB09UA
blade, into the hole.
(4) Reattach the cap with the blade inside to the plunger.
Color Compatible blade
classification types
Blue CB09UA
Red CB15U
CB15U-K30
Red CB15-10C
CB15-05S
3 - 3
FC3100-60 Service Manual
P/N53802-031T Rev. A
Blade material Cutter offset values
18 ± 2
Super-steel
28 ± 2
Super-steel
28 ± 2
Super-steel
18 ± 2
Ceramic
Sapphire
9 ± 2
