Chapter 2 CUTTER BLADES, CUTTER PENS AND PENS

2.3 Replacing the Cutter Blade

Handle cutter blades with care!

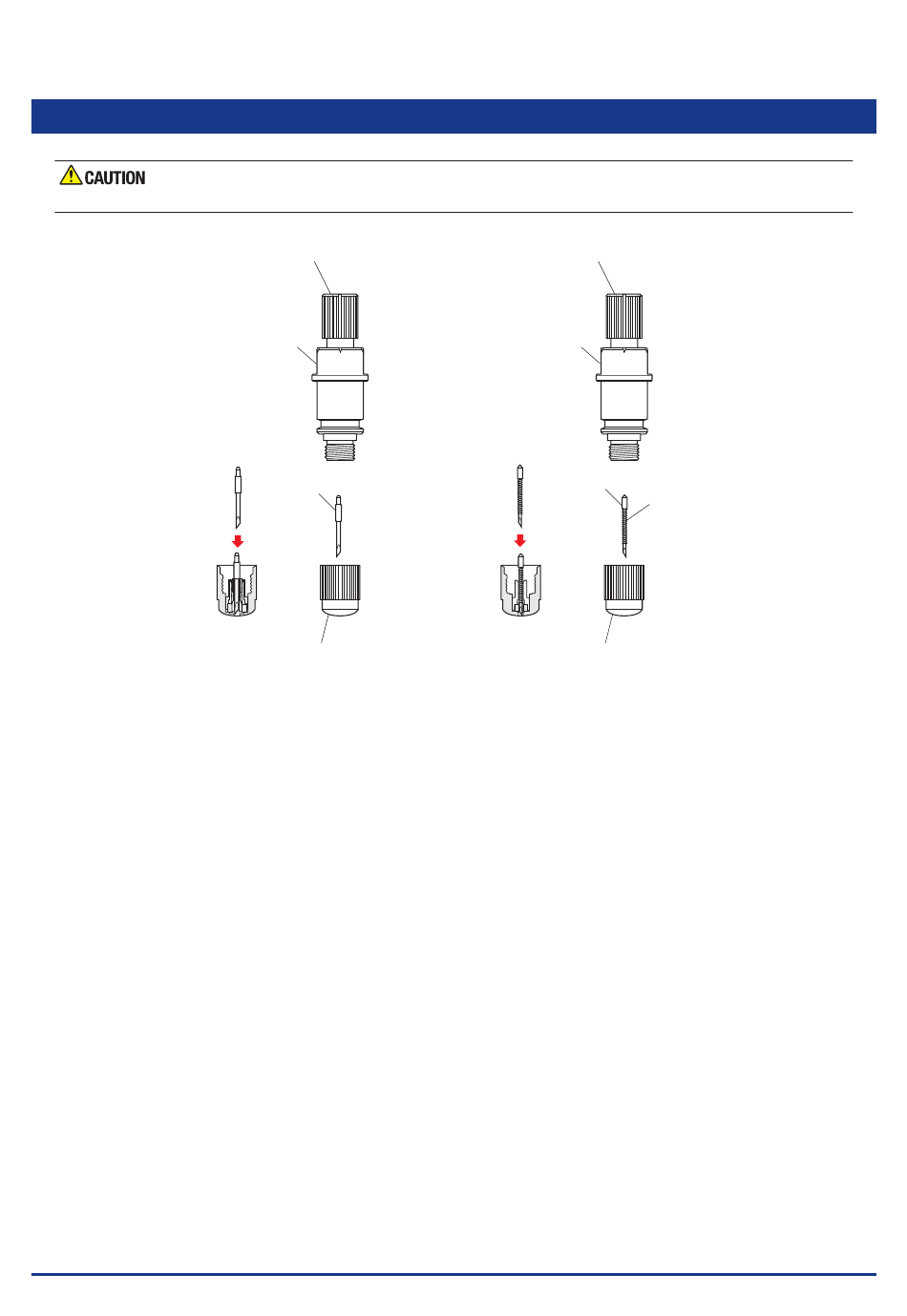

Plunger for φ1.5-mm blade
(1) Turn the blade length adjustment dial to retract the blade inside the plunger.
(2) Turn the plunger cap in the counter-clockwise direction to unscrew it from the plunger.
(3) Remove the blade inside the plunger cap.
(4) Take a new blade and insert it into the opening in the plunger cap.
(5) With the blade inserted into the plunger cap, attach the plunger from above.
2-4
Blade length adjustment dial (red)
φ1.5-mm
cutter blade
Plunger cap for φ1.5-mm blade
Blade length adjustment dial (blue)
Plunger for φ0.9-mm blade
φ0.9-mm
cutter blade
Plunger cap for φ0.9-mm blade
Spring
