Enable Manual Control

Unit [n] > Enable Manual Control
Use to enable the manual control of certain system valves and elevator components. When this option
is enabled, a checkmark appears to the left of the menu item.

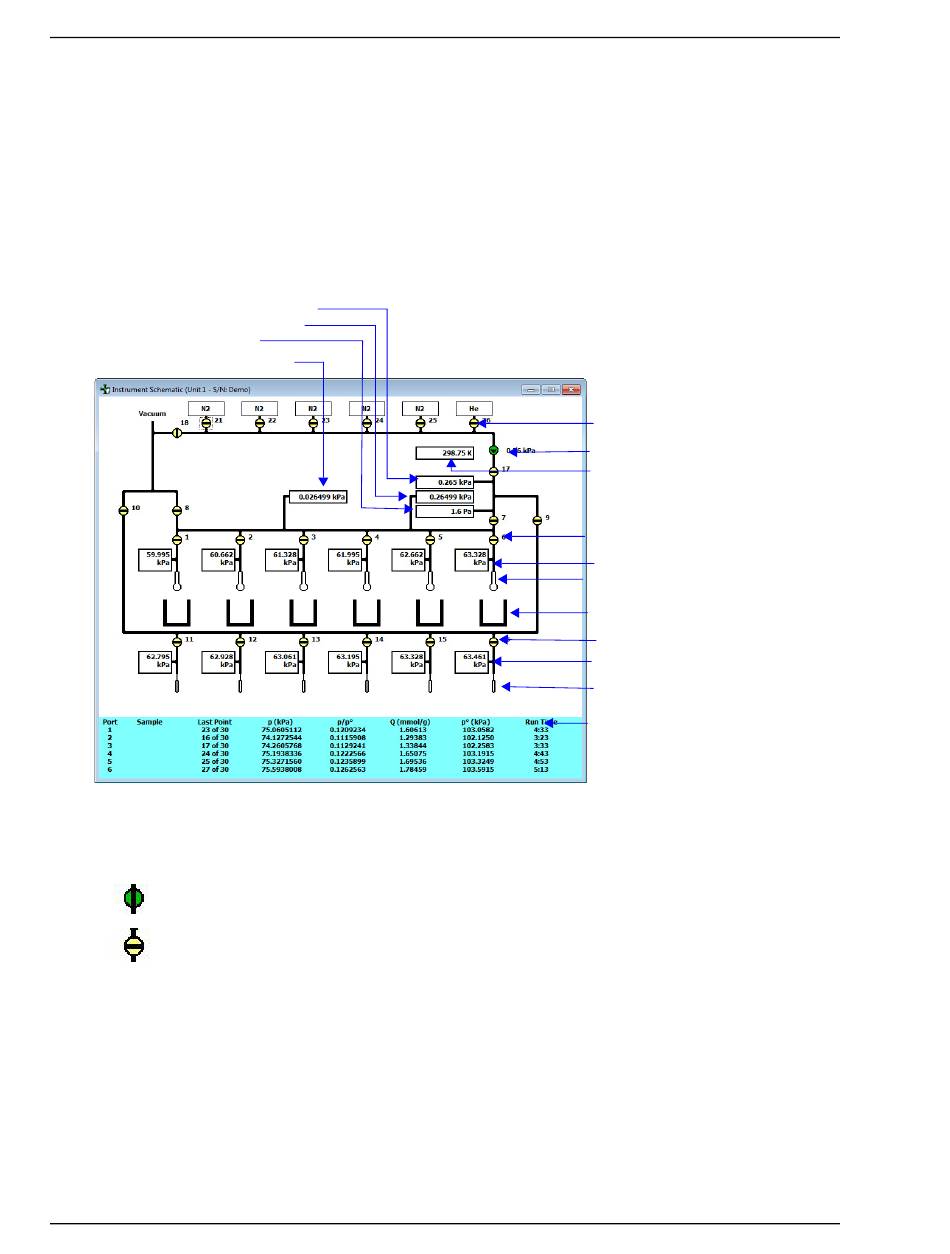

If the analysis schematic is not displayed, select Unit > Show Analysis Schematic, then select Enable
Manual Control.
1000-mmHg transducer
10-mmHg transducer
Vacuum gauge
1-mmHg transducer
When manual control is enabled, the valve symbols change color on the computer screen to indicate
their status.
Green = open
Yellow = closed
Use the mouse pointer to select a component. A component is selected when it is surrounded by a thin
line. Each component has a shortcut menu displaying the operations available for that particular com-
ponent. These menus may be accessed by right-clicking on the desired component.
You can open and close valves, and raise or lower the elevator by using one of the following methods:
• Right-click on the valve or elevator symbol to access the shortcut menu and select the appropriate
action.
4-14
ASAP 2460 Operator's Manual
Gas inlet valves
Servo valve
Analysis manifold temperature
Analysis ports
1000-mmHg transducers
Sample tube
Elevator
o
p
port
1000-mmHg transducers
Po tube
Status window
