RM0033
•
Interrupt service routine for interrupt OUT/IN transactions
a)
Unmask (NAK/TXERR/STALL/XFRC/FRMOR)
if (XFRC)
{
Reset Error Count
Mask ACK
De-allocate Channel
}
else
if (STALL or FRMOR)
{

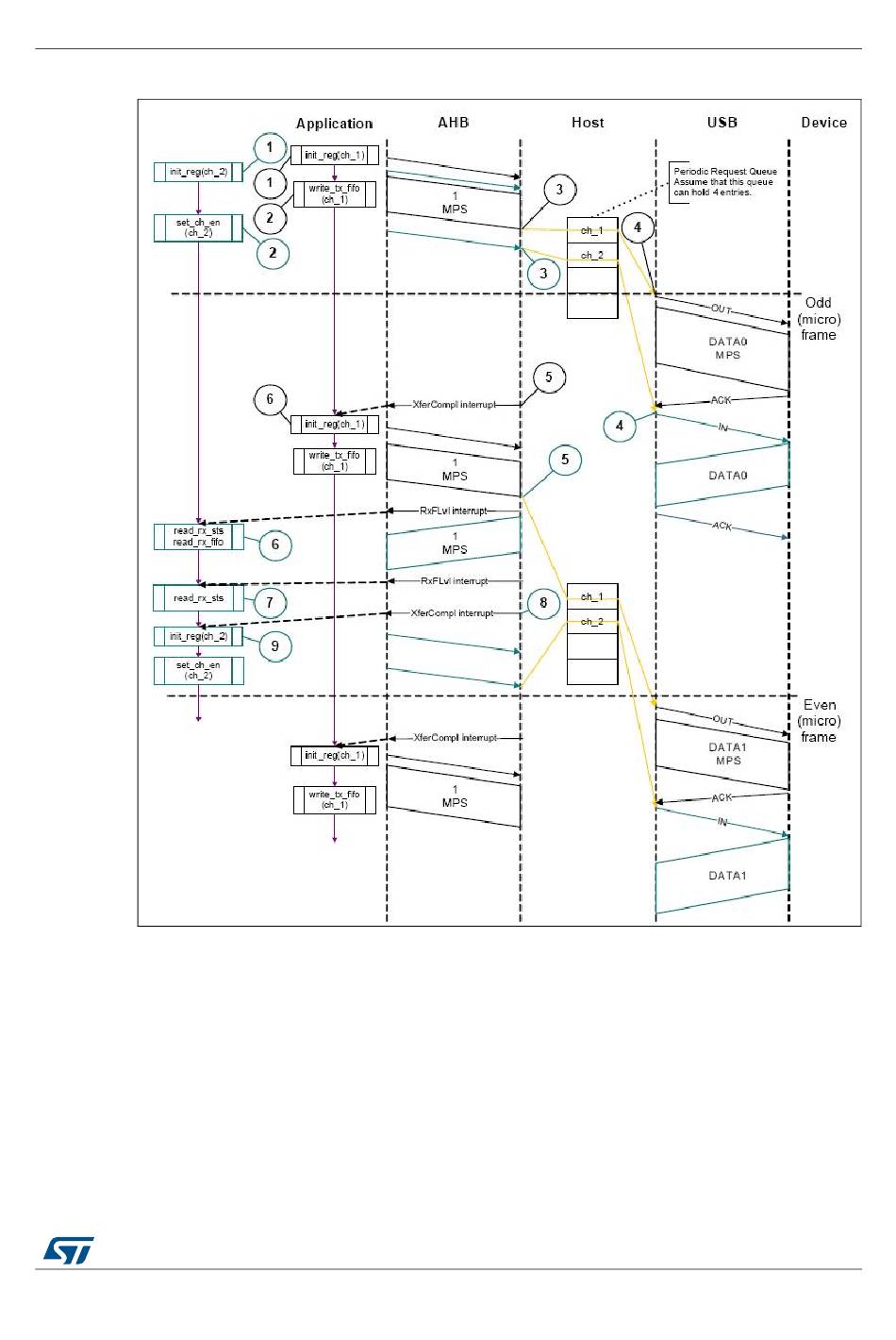

Figure 386. Normal interrupt OUT/IN transactions - Slave mode
Interrupt OUT
USB on-the-go high-speed (OTG_HS)
RM0033 Rev 9
1219/1381
1260
