4.2.14 Replacing the Y Flexible Printed-Circuit Cable

Removing the Y FPC Cable
(1) Remove the right side cover (see Subsection 4.1.1).
(2) Remove the top cover (see Subsection 4.1.3).
(3) Remove the FPC cable bracket.
• Two M3 x L6 bind-head screws
(4) As shown in Fig.4-71, disconnect the Y FPC cable from the PR216013 pen board's J31 connector.
(5) As shown in Fig.4-72, disconnect the other end of the Y FPC cable from the PR216012 relay board's
J201 connector.

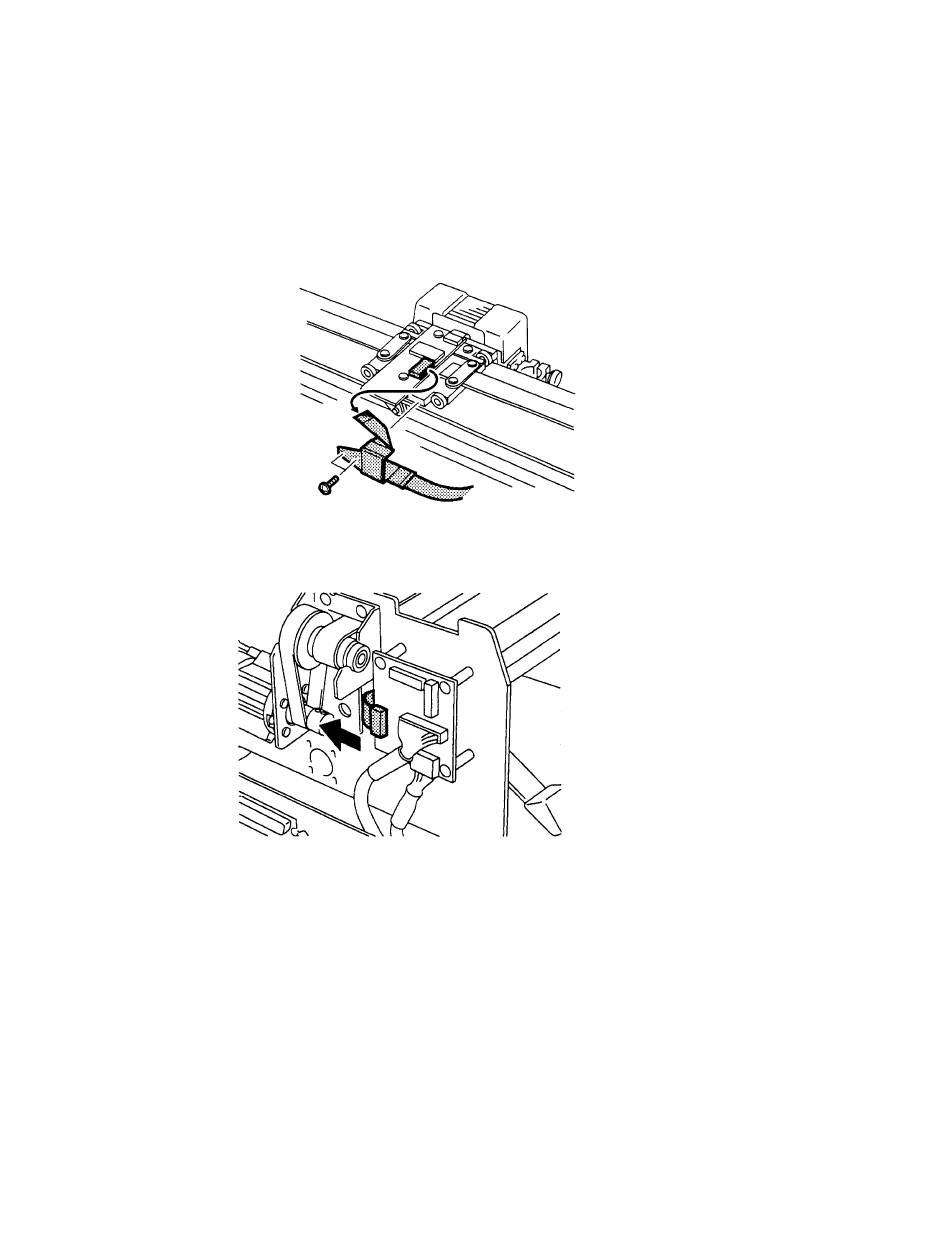

Fig. 4-71
Fig. 4-72
