Chapter 31 Configuring FC-SP and DHCHAP
S e n d d o c u m e n t a t i o n c o m m e n t s t o m d s f e e d b a c k - d o c @ c i s c o . c o m .

Sample Configuration

This section provides the steps to configure the example illustrated in
Figure 31-2
MDS-9216
To configure the authentication setup shown in
Step 1 Obtain the device name of the MDS 9216 Switch in the fabric, The MDS 9216 Switch in the fabric is
identified by the switch WWN.
MDS-9216# show wwn switch
Switch WWN is 20:00:00:05:30:00:54:de
Explicitly enable DHCHAP in this switch.
Step 2
When you disable DHCHAP, all related configurations are automatically discarded.
Note
MDS-9216(config)# fcsp enable
Step 3 Configure a clear text password for this switch. This password will be used by the connecting device.
MDS-9216(config)# fcsp dhchap password rtp9216
Configures a password for another switch in the fabric that is identified by the switch WWN device
Step 4
name.
MDS-9216(config)# fcsp dhchap devicename 20:00:00:05:30:00:38:5e password rtp9509
Enable the DHCHAP mode for the required Fibre Channel interface.
Step 5
Whenever DHCHAP port mode is changed to a mode other than the Off mode, reauthentication is
Note
performed.
MDS-9216(config)# interface fc 1/16
MDS-9216(config-if)# fcsp on
Step 6 Verify the protocol security information configured in this switch by displaying the DHCHAP local
password database.
MDS-9216# show fcsp dhchap database
DHCHAP Local Password:
Other Devices' Passwords:
OL-6973-03, Cisco MDS SAN-OS Release 2.x

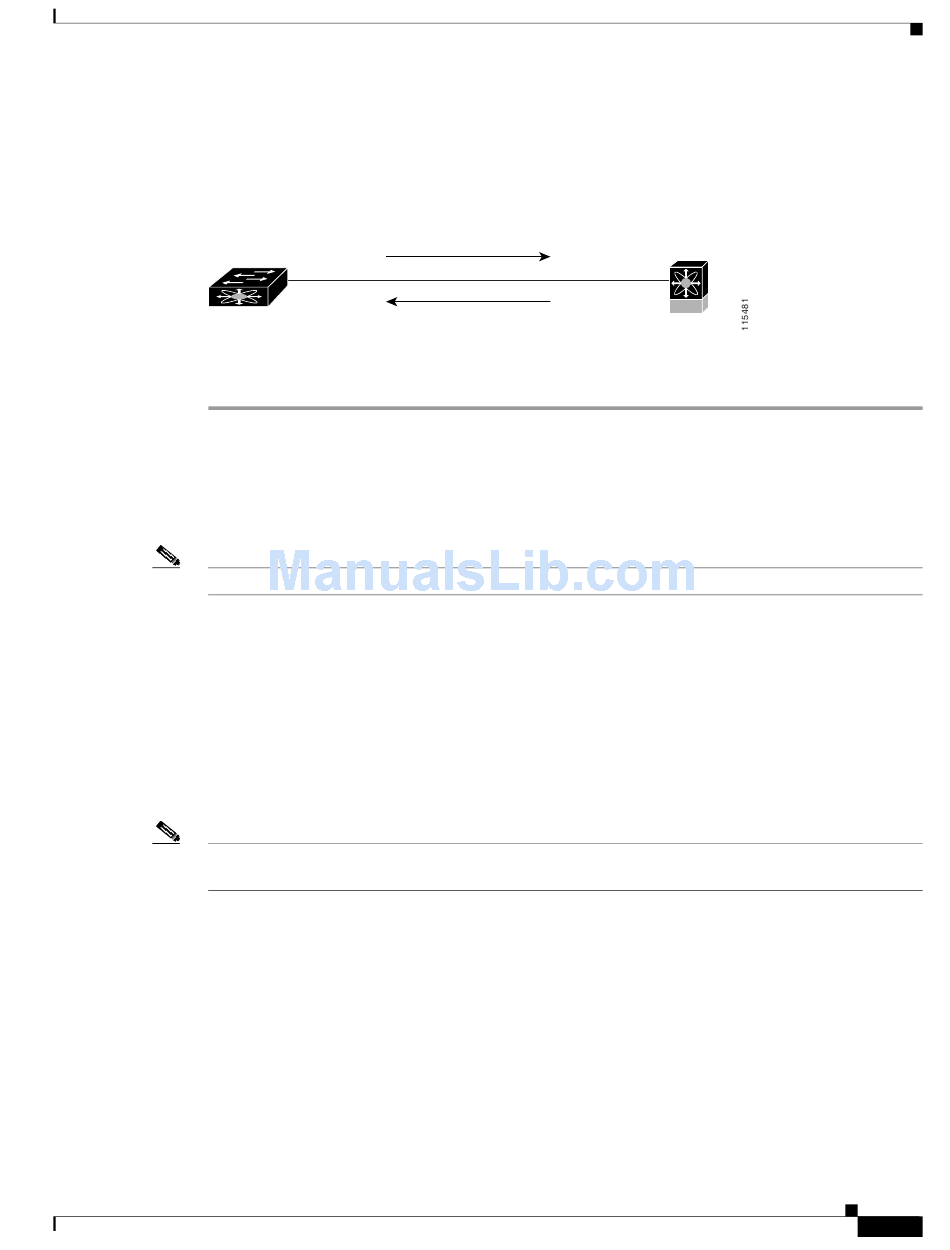

Sample DHCHAP Authentication
Password sent by MDS-9216 to MDS-9509
int fc 1/6
Password sent by MDS-9509 to MDS-9216
Non-device specific password:upt9216
Password for device with WWN:20:00:00:05:30:00:38:5e is upt9509
Figure
int fc 4/5
MDS-9509
Figure 31-2, follow these steps:
Cisco MDS 9000 Family Configuration Guide
Sample Configuration
31-2.
