Multiple VSAN Configuration
More than one VSAN can be used to segment the management network in multiple subnets. An active
interface must be present on the switch for the VSAN interface to be enabled.
To configure multiple VSANs, follow these steps:
Add the VSAN to the VSAN database on any switch in the fabric.
Step 1
Create a VSAN interface for the appropriate VSAN on any switch in the fabric.
Step 2
Assign an IP address on every VSAN interface on the same subnet as the corresponding VSAN.
Step 3
Define the multiple static route on the Fibre Channel switches and the IP cloud (see
Step 4
Figure 36-5
route 10.10.10.10.0 255.255.255.0 next_hop 11.11.11.35
IP default-gateway 10.10.10.35 next_hop 11.12.12.34
Cisco MDS 9000 Family Configuration Guide
36-14

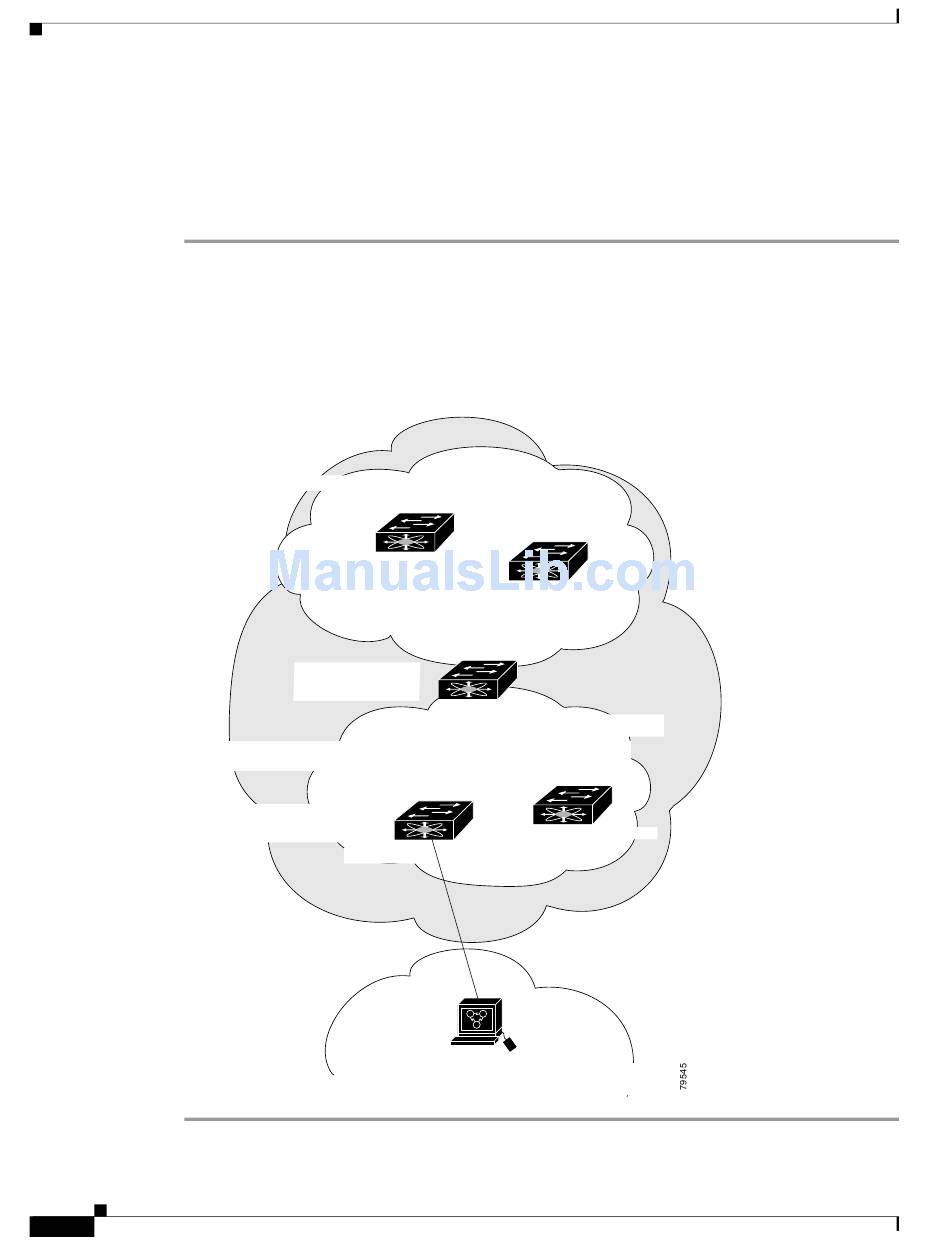

Multiple VSANs Configuration Example
