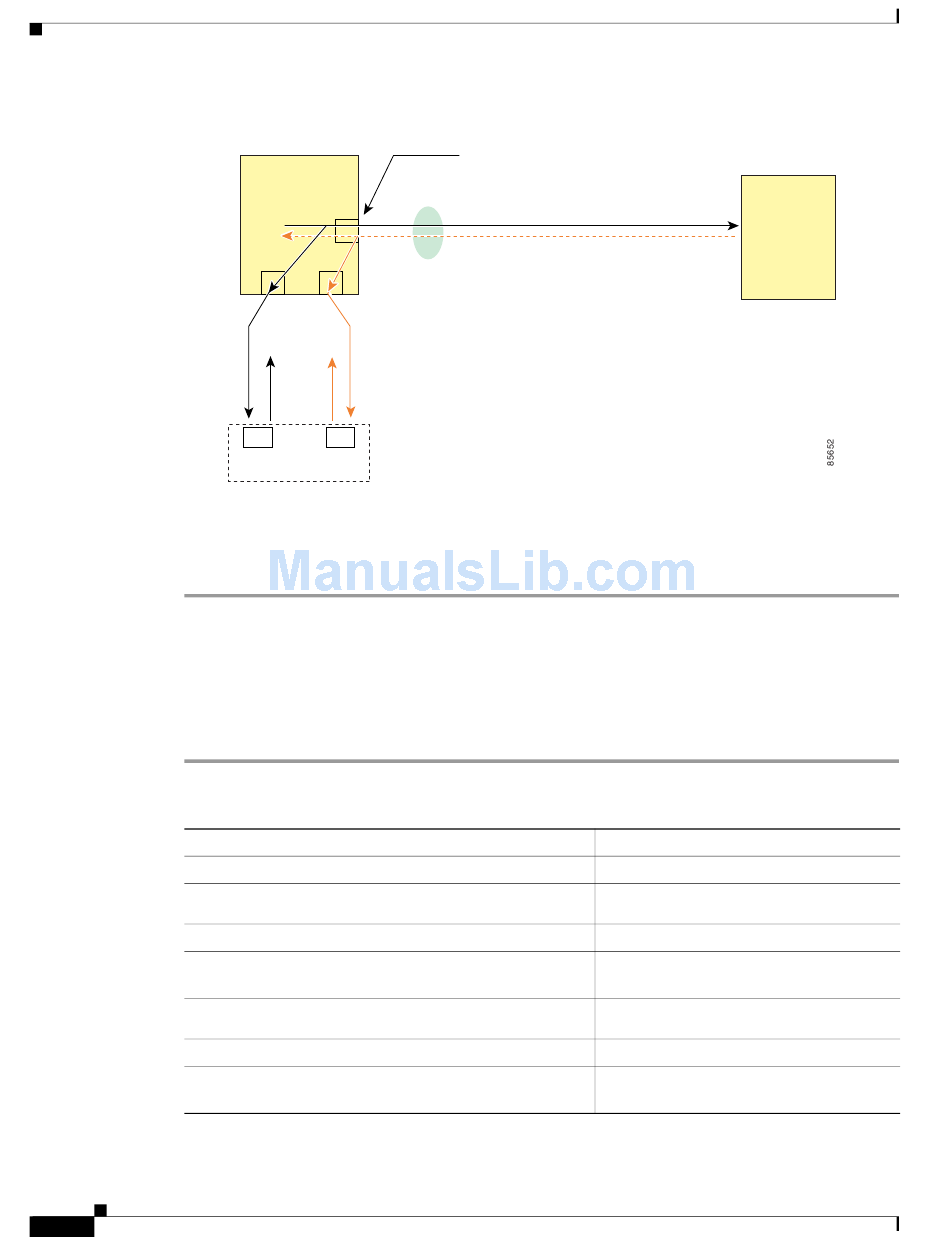

Figure 43-6
SD Port
fc2/1

Configuring Analyzers Using SPAN

To configure Fibre Channel Analyzers using SPAN for the example in
Configure SPAN on interface fc1/1 in the ingress (Rx) direction to send traffic on SD port fc2/1 using
Step 1
session 1.
Configure SPAN on interface fc1/1in the egress (Tx) direction to send traffic on SD port fc2/2 using
Step 2
session 2.
Physically connect fc2/1 to port 1 on the Fibre Channel analyzer.
Step 3
Physically connect fc2/2 to port 2 on the Fibre Channel analyzer.
Step 4
To configure SPAN on the source and destination interfaces, follow these steps:
Command
Step 1
switch# config t
Step 2
switch(config)# span session 1
switch(config-span)#
Step 3
switch(config-span)## destination interface fc2/1
Step 4
switch(config-span)# source interface fc1/1 rx
Step 5
switch(config)# span session 2
switch(config-span)#
Step 6
switch(config-span)## destination interface fc2/2
Step 7
switch(config-span)# source interface fc1/1 tx
Cisco MDS 9000 Family Configuration Guide
43-12
Fibre Channel Analyzer Using SPAN
RX source in session 1 - SD port fc2/1
Cisco
TX source in session 2 - SD port fc2/2
MDS 9000
switch
fc1/1
SD Port
fc2/2
TX TX
Dropped *
* The egress (TX) traffic coming out from
RX RX
TX TX
1 2
FC Analyzer
TX
RX
the analyzer ports will be dropped.
Chapter 43 Monitoring Network Traffic Using SPAN
Storage
device
Figure 43-6, follow these steps:
Purpose
Enters configuration mode.
Creates the SPAN session 1.
Configures the destination interface fc2/1.
Configures the source interface fc1/1 in
the ingress direction.
Creates the SPAN session 2.
Configures the destination interface fc2/2.
Configures the source interface fc1/1 in
the egress direction.
OL-6973-03, Cisco MDS SAN-OS Release 2.x
