Chapter 43 Monitoring Network Traffic Using SPAN
S e n d d o c u m e n t a t i o n c o m m e n t s t o m d s f e e d b a c k - d o c @ c i s c o . c o m .
Creating VSAN Interfaces

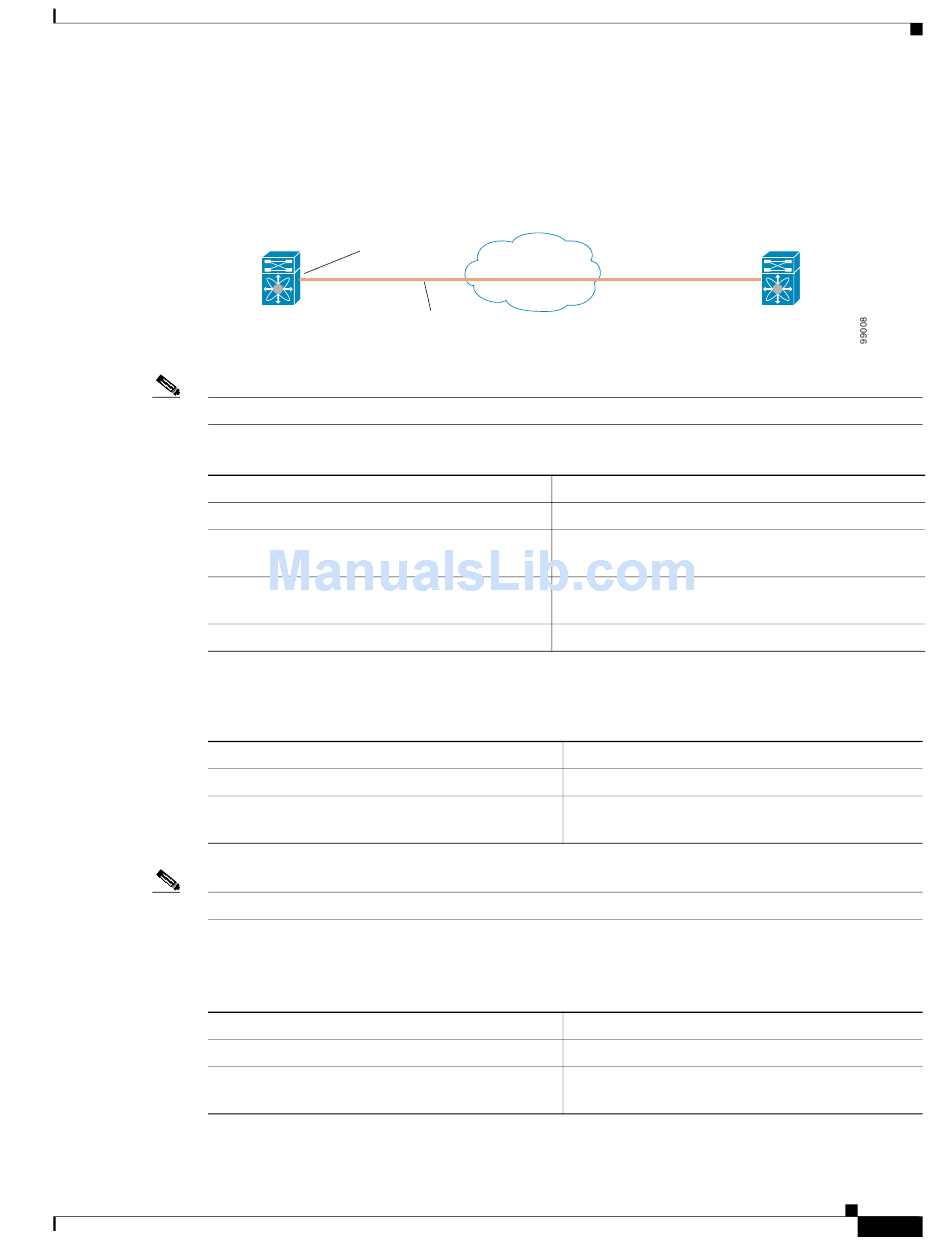

Figure 43-10
Figure 43-10
source switch S
IP address of VSAN 5
interface = 10.10.10 1
This example assumes that VSAN 5 is already configured in the VSAN database.
Note
To create a VSAN interface in the source switch for the scenario in
Command
Step 1
switchS# config t
Step 2
switchS(config)# interface vsan 5
switchS(config-if)#
Step 3
switchS(config-if)# ip address 10.10.10.1
255.255.255.0
Step 4
switchS(config-if)# no shutdown
Enabling FC Tunnels
To enable the FC tunnel feature, follow these steps:
Command
Step 1
switchS# config t
Step 2
switchS(config)# fc-tunnel enable
Be sure to enable this feature in each switch in the end-to-end path in the fabric.
Note
Initiating the FC Tunnel
To initiate the FC tunnel in the source switch for the scenario in
Command
Step 1
switchS# config t
Step 2
switchS(config)# interface fc-tunnel 100
switchS(config-if)#
OL-6973-03, Cisco MDS SAN-OS Release 2.x
depicts a basic FC tunnel configuration.
FC Tunnel Configuration
Cisco MDS
FC tunnel source
FC tunnel 100
Cisco MDS
Fibre Channel
fabric
Purpose
Enters configuration mode.
Configures the specified VSAN interface (VSAN 5)
in the source switch (switch S).
Configures the IP address and subnet for the VSAN
interface 5 in the source switch (switch S).
Enables traffic flow through this interface.
Purpose
Enters configuration mode.
Enables the FC tunnel feature (disabled by
default).
Figure
Purpose
Enters configuration mode.
Initiates the FC tunnel (100) in the source switch
(switch S). The tunnel IDs range from 1 to 255.
Cisco MDS 9000 Family Configuration Guide
Remote SPAN
Cisco MDS
destination switch D
IP address of VSAN 5
interface = 10.10.10 2
Figure 43-10, follow these steps:
43-10, follow these steps:
43-19
