Chapter 40 Configuring SANTap
About SANTap
S e n d d o c u m e n t a t i o n c o m m e n t s t o m d s f e e d b a c k - d o c @ c i s c o . c o m .
Proxy mode-1
•
Proxy mode-1 assigns Cisco-specific WWNs to the virtual initiators (VIs) and digital virtual targets
(DVTs). The benefit of this mode is that it eliminates the requirement of transparent mode that a host
initiator or a target be connected directly to an SSM. In proxy mode-1, the SSM can be anywhere in
the SAN. However, this mode requires reconfiguration of legacy applications. See Figure 40-3.

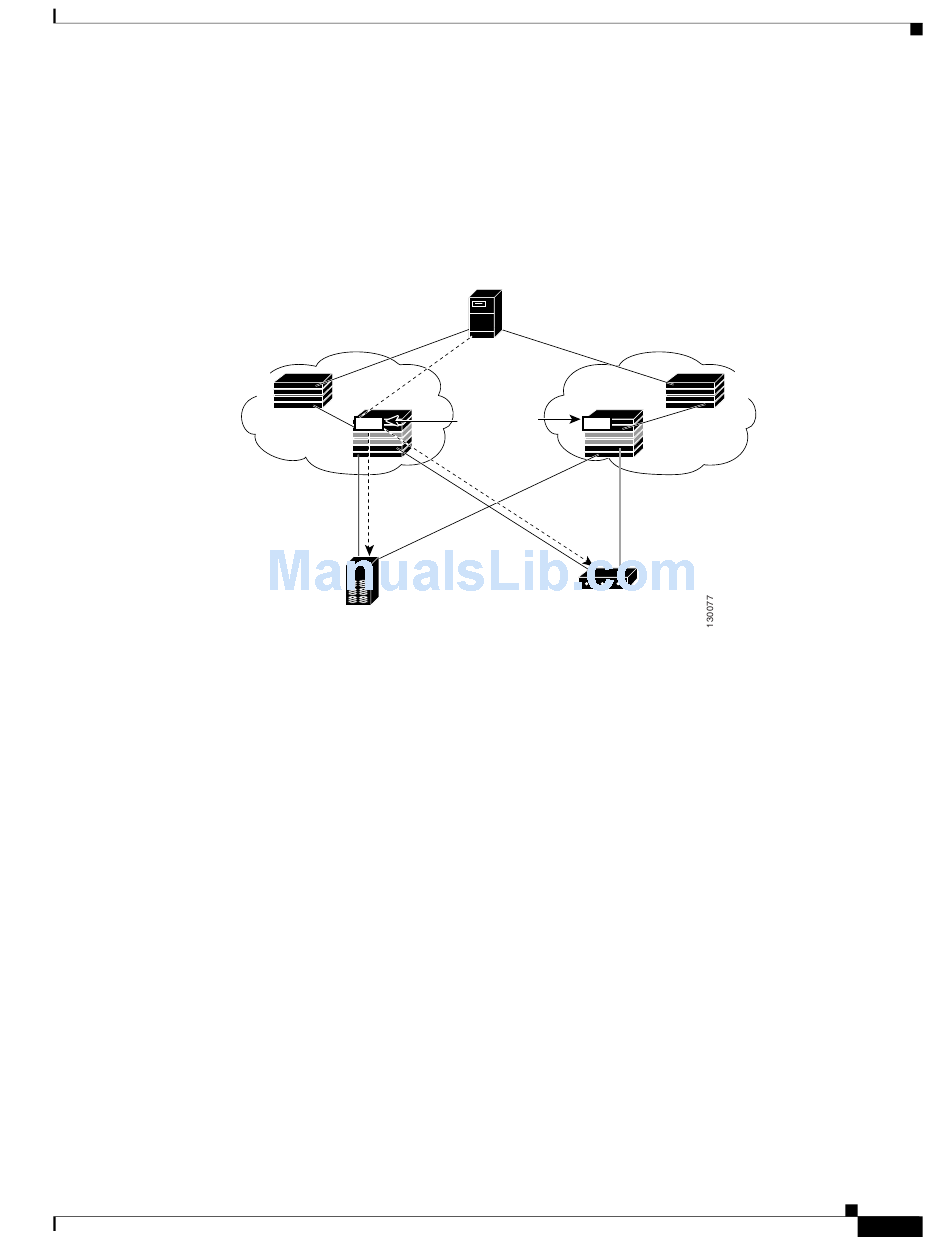

Figure 40-3 SANTap Proxy Mode-1 Example
Host initiators
SAN 1 SAN 2
Not MDS Not MDS
SSM
D V T D V T
with SANTap
capability
Appliance
Target
