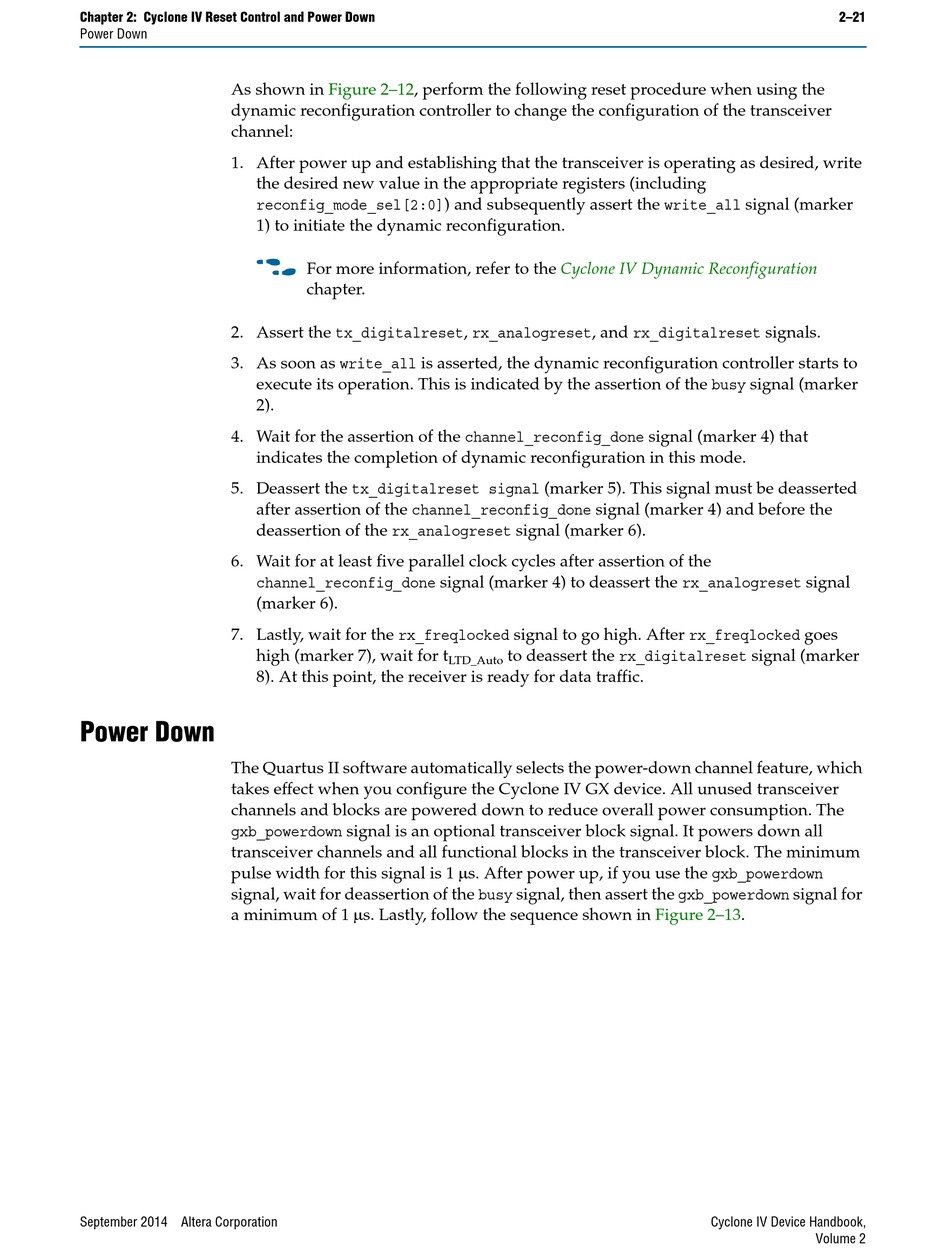

Chapter 2: Cyclone IV Reset Control and Power Down

Power Down

As shown in
dynamic reconfiguration controller to change the configuration of the transceiver
channel:
1. After power up and establishing that the transceiver is operating as desired, write
the desired new value in the appropriate registers (including
reconfig_mode_sel[2:0]) and subsequently assert the write_all signal (marker
1) to initiate the dynamic reconfiguration.
f
2. Assert the tx_digitalreset, rx_analogreset, and rx_digitalreset signals.
3. As soon as write_all is asserted, the dynamic reconfiguration controller starts to
execute its operation. This is indicated by the assertion of the busy signal (marker
2).
4. Wait for the assertion of the channel_reconfig_done signal (marker 4) that
indicates the completion of dynamic reconfiguration in this mode.
5. Deassert the tx_digitalreset signal (marker 5). This signal must be deasserted
after assertion of the channel_reconfig_done signal (marker 4) and before the
deassertion of the rx_analogreset signal (marker 6).
6. Wait for at least five parallel clock cycles after assertion of the
channel_reconfig_done signal (marker 4) to deassert the rx_analogreset signal
(marker 6).
7. Lastly, wait for the rx_freqlocked signal to go high. After rx_freqlocked goes
high (marker 7), wait for t
8). At this point, the receiver is ready for data traffic.
Power Down
The Quartus II software automatically selects the power-down channel feature, which
takes effect when you configure the Cyclone IV GX device. All unused transceiver
channels and blocks are powered down to reduce overall power consumption. The
gxb_powerdown signal is an optional transceiver block signal. It powers down all
transceiver channels and all functional blocks in the transceiver block. The minimum
pulse width for this signal is 1 s. After power up, if you use the gxb_powerdown
signal, wait for deassertion of the busy signal, then assert the gxb_powerdown signal for
a minimum of 1 s. Lastly, follow the sequence shown in
September 2014 Altera Corporation
Figure 2–12, perform the following reset procedure when using the
For more information, refer to the
chapter.
LTD_Auto
Cyclone IV Dynamic Reconfiguration
to deassert the rx_digitalreset signal (marker
Figure
2–21
2–13.
Cyclone IV Device Handbook,
Volume 2
