8–32
The default configuration boot address allows the system to use special parameter
blocks in the flash memory map. Parameter blocks are at the top or bottom of the
memory map.
configuration scheme. You can change the default configuration default boot address
0×010000 to any desired address using the APFC_BOOT_ADDR JTAG instruction. For
more information about the APFC_BOOT_ADDR JTAG instruction, refer to
Instructions" on page

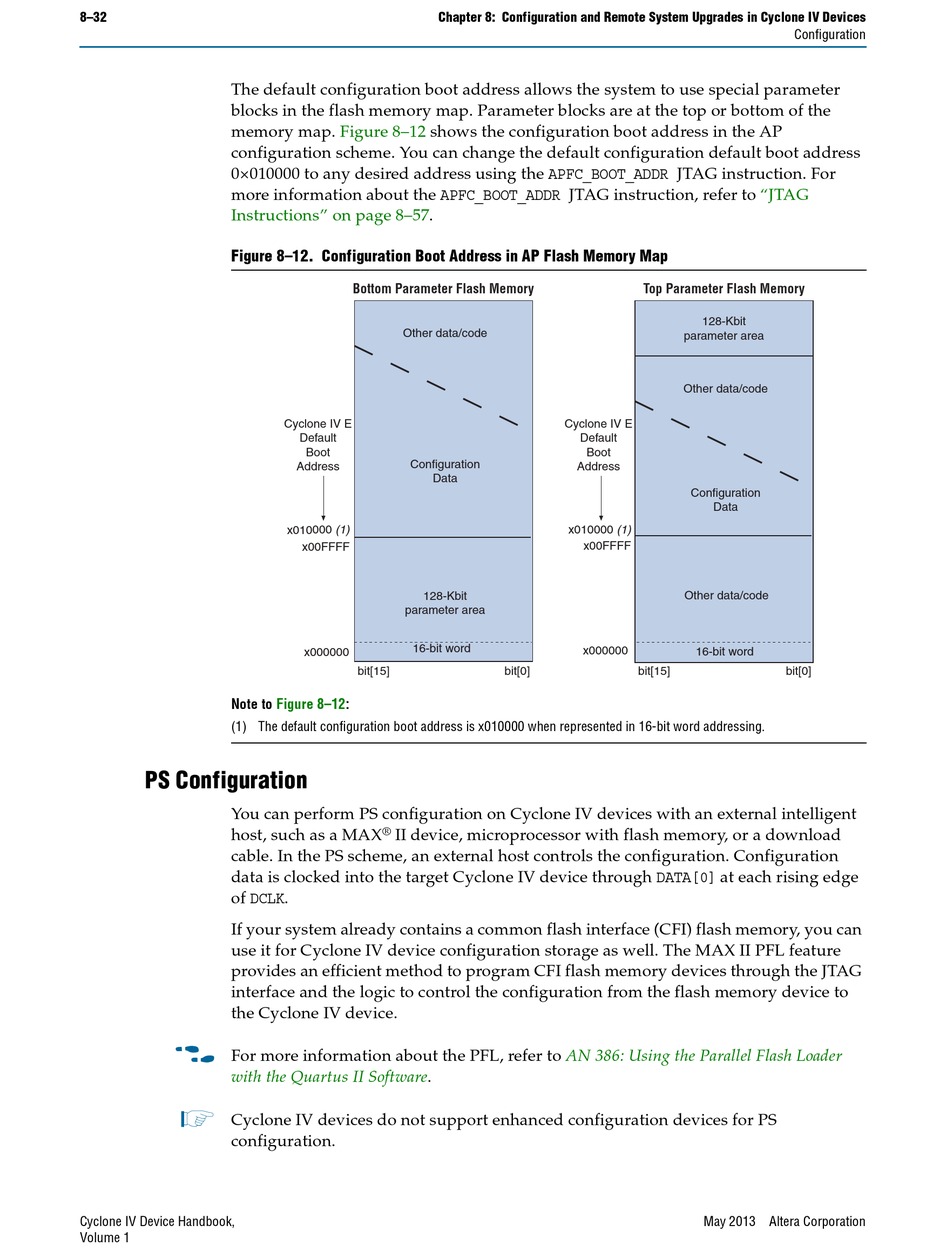

Figure 8–12. Configuration Boot Address in AP Flash Memory Map
Note to
(1) The default configuration boot address is x010000 when represented in 16-bit word addressing.

PS Configuration

You can perform PS configuration on Cyclone IV devices with an external intelligent
host, such as a MAX
cable. In the PS scheme, an external host controls the configuration. Configuration
data is clocked into the target Cyclone IV device through DATA[0] at each rising edge
of DCLK.
If your system already contains a common flash interface (CFI) flash memory, you can
use it for Cyclone IV device configuration storage as well. The MAX II PFL feature
provides an efficient method to program CFI flash memory devices through the JTAG
interface and the logic to control the configuration from the flash memory device to
the Cyclone IV device.
f
For more information about the PFL, refer to
with the Quartus II
1
Cyclone IV devices do not support enhanced configuration devices for PS
configuration.
Cyclone IV Device Handbook,
Volume 1
Chapter 8: Configuration and Remote System Upgrades in Cyclone IV Devices
Figure 8–12 shows the configuration boot address in the AP
8–57.
Bottom Parameter Flash Memory
Other data/code
Cyclone IV E
Default
Boot
Configuration
Address
Data
x00FFFF
128-Kbit
parameter area
16-bit word
x000000
bit[15]
Figure 8–12:
®
II device, microprocessor with flash memory, or a download
Software.
Top Parameter Flash Memory
Cyclone IV E
Default
Boot
Address
x010000 (1)
x00FFFF
x000000
bit[0] bit[15]
AN 386: Using the Parallel Flash Loader
Configuration
"JTAG
128-Kbit
parameter area
Other data/code
Configuration
Data
Other data/code
16-bit word
bit[0]
May 2013 Altera Corporation
