2–2
Figure 2–1

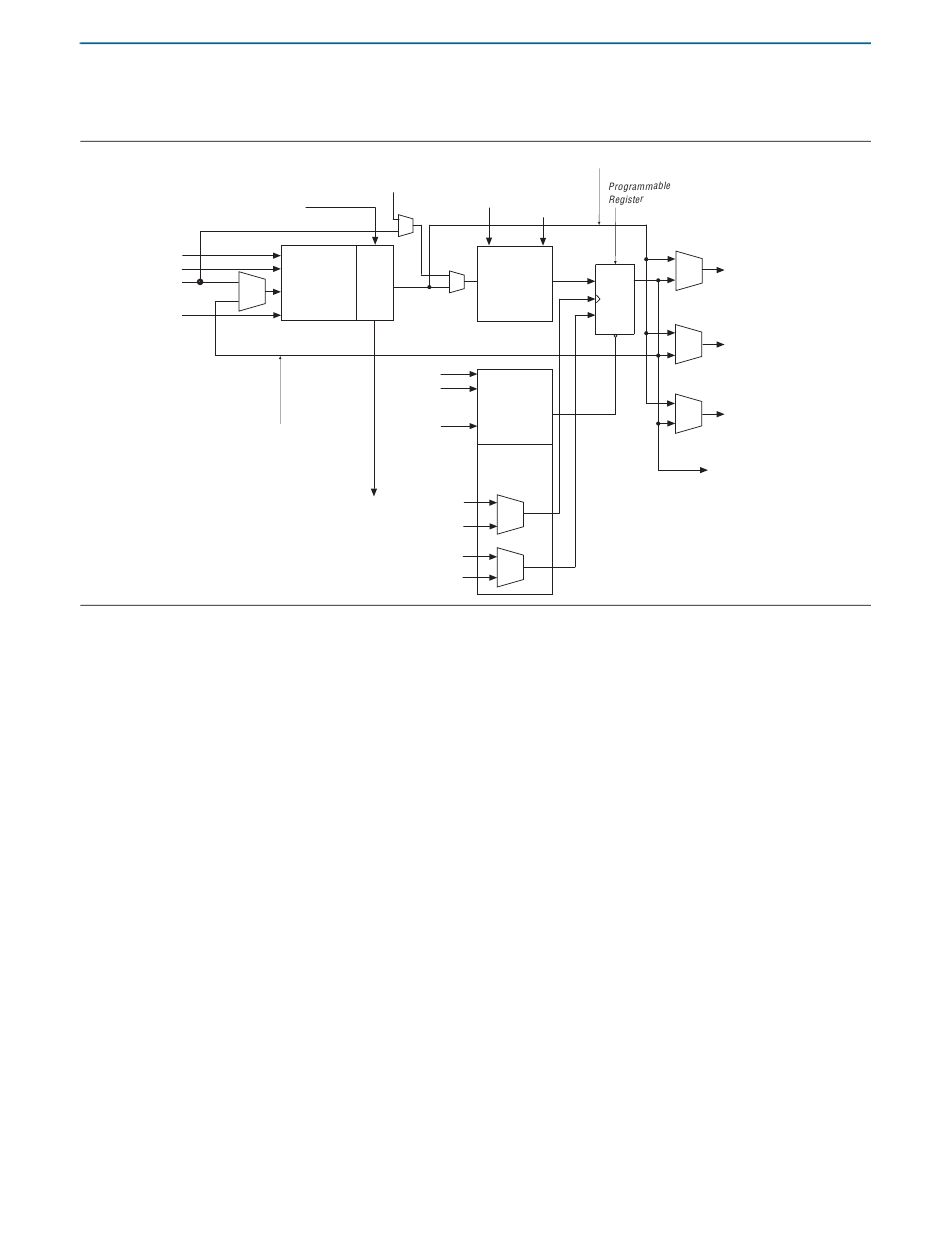

Figure 2–1. Cyclone IV Device LEs
LE Carry-In
data 1
data 2
data 3
data 4
Register Feedback

LE Features

You can configure the programmable register of each LE for D, T, JK, or SR flipflop
operation. Each register has data, clock, clock enable, and clear inputs. Signals that
use the global clock network, general-purpose I/O pins, or any internal logic can
drive the clock and clear control signals of the register. Either general-purpose I/O
pins or the internal logic can drive the clock enable. For combinational functions, the
LUT output bypasses the register and drives directly to the LE outputs.
Each LE has three outputs that drive the local, row, and column routing resources. The
LUT or register output independently drives these three outputs. Two LE outputs
drive the column or row and direct link routing connections, while one LE drives the
local interconnect resources. This allows the LUT to drive one output while the
register drives another output. This feature, called register packing, improves device
utilization because the device can use the register and the LUT for unrelated
functions. The LAB-wide synchronous load control signal is not available when using
register packing. For more information about the synchronous load control signal,
refer to
The register feedback mode allows the register output to feed back into the LUT of the
same LE to ensure that the register is packed with its own fan-out LUT, providing
another mechanism for improved fitting. The LE can also drive out registered and
unregistered versions of the LUT output.
Cyclone IV Device Handbook,
Volume 1
shows the LEs for Cyclone IV devices.
Register Chain
LAB-Wide
Routing from
Synchronous
previous LE
Look-Up Table Carry
(LUT) Chain
labclr1
labclr2
Chip-Wide
Reset
(DEV_CLRn)
labclk1
LE Carry-Out
labclk2
labclkena1
labclkena2
"LAB Control Signals" on page
Chapter 2: Logic Elements and Logic Array Blocks in Cyclone IV Devices
Register Bypass
LAB-Wide
Load Synchronous
Clear
Synchronous
D Q
Load and
Clear Logic
ENA
CLRN
Asynchronous
Clear Logic
Clock &
Clock Enable
Select
2–6.
Logic Elements
Row, Column,
And Direct Link
Routing
Row, Column,
And Direct Link
Routing
Local
Routing
Register Chain
Output
