2–8
Receiver and Transmitter Channel—Receiver CDR in Automatic Lock Mode
This configuration contains both a transmitter and receiver channel. When the
receiver CDR is in automatic lock mode, use the reset sequence shown in

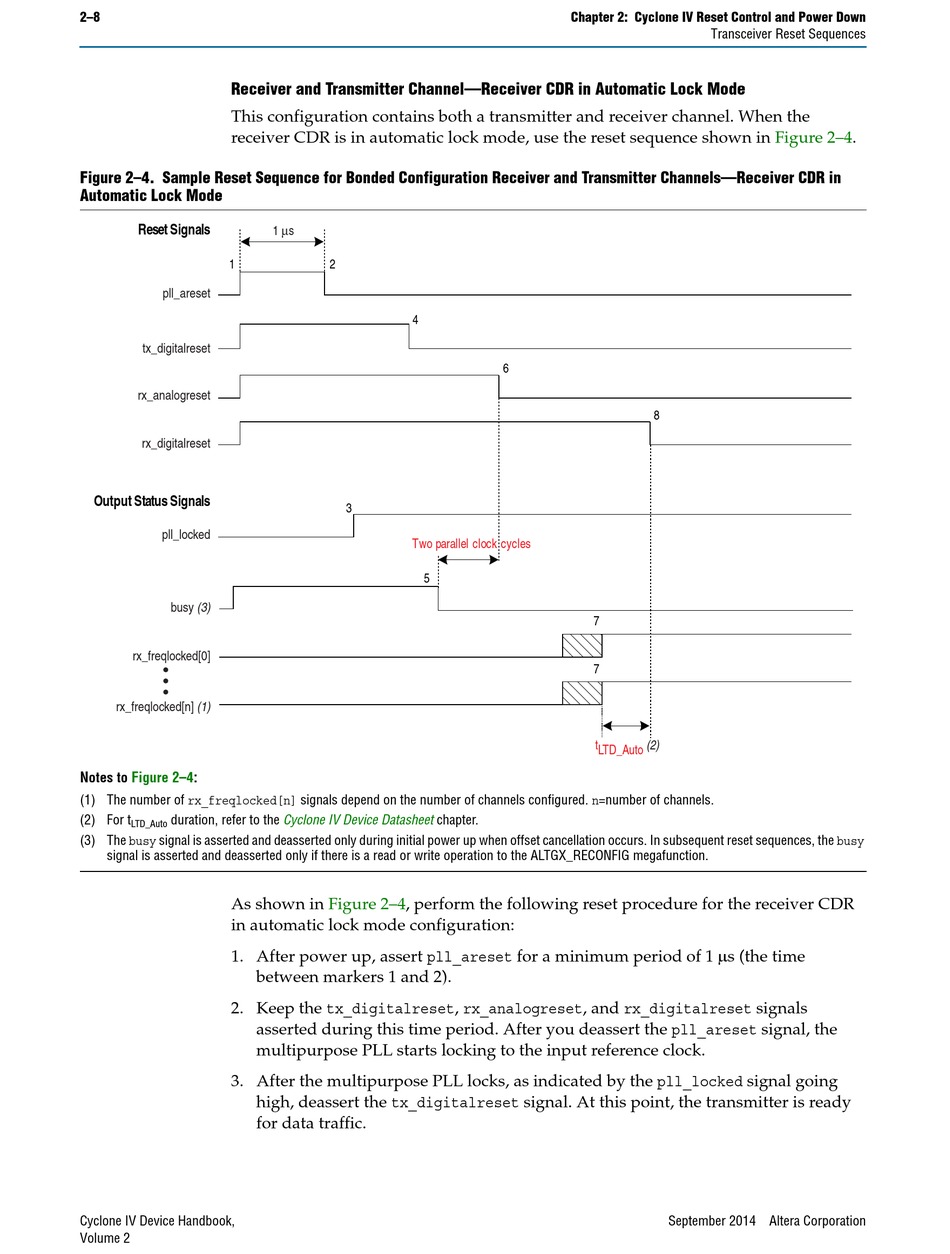

Figure 2–4. Sample Reset Sequence for Bonded Configuration Receiver and Transmitter Channels—Receiver CDR in
Automatic Lock Mode
Reset Signals
1
pll_areset
tx_digitalreset
rx_analogreset
rx_digitalreset
Output Status Signals
pll_locked
busy (3)
rx_freqlocked[0]
rx_freqlocked[n] (1)
Notes to Figure 2–4:
(1) The number of rx_freqlocked[n] signals depend on the number of channels configured. n=number of channels.
(2) For t duration, refer to the
LTD_Auto
(3) The busy signal is asserted and deasserted only during initial power up when offset cancellation occurs. In subsequent reset sequences, the busy
signal is asserted and deasserted only if there is a read or write operation to the ALTGX_RECONFIG megafunction.
As shown in
in automatic lock mode configuration:
1. After power up, assert pll_areset for a minimum period of 1 s (the time
between markers 1 and 2).
2. Keep the tx_digitalreset, rx_analogreset, and rx_digitalreset signals
asserted during this time period. After you deassert the pll_areset signal, the
multipurpose PLL starts locking to the input reference clock.
3. After the multipurpose PLL locks, as indicated by the pll_locked signal going
high, deassert the tx_digitalreset signal. At this point, the transmitter is ready
for data traffic.
Cyclone IV Device Handbook,
Volume 2
1 µs
2
4
3
Two parallel clock cycles
5
Cyclone IV Device Datasheet chapter.
Figure 2–4, perform the following reset procedure for the receiver CDR
Chapter 2: Cyclone IV Reset Control and Power Down
6
8
7
7
t LTD_Auto (2)
September 2014 Altera Corporation
Transceiver Reset Sequences
Figure 2–4.
