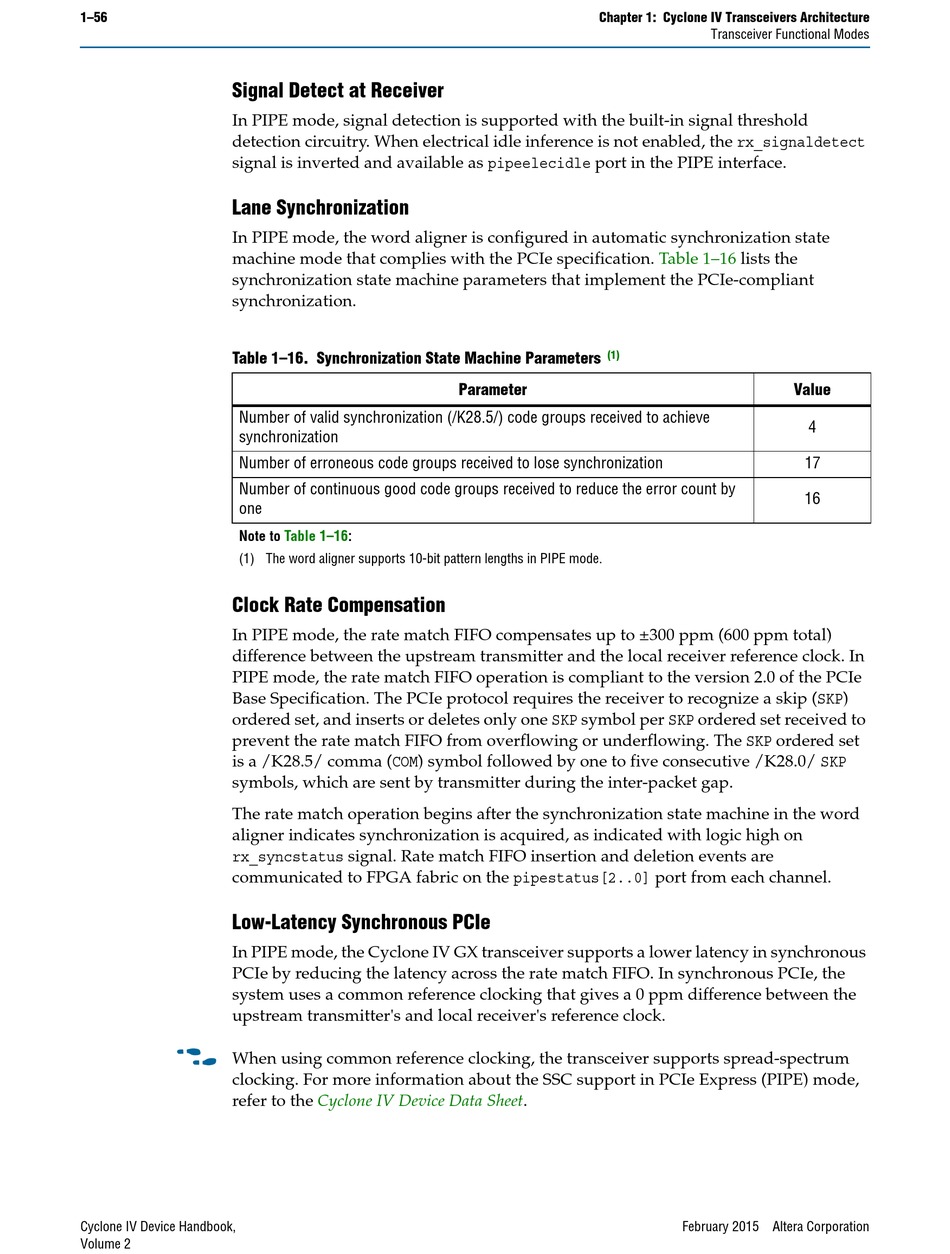

1–56

Signal Detect at Receiver

In PIPE mode, signal detection is supported with the built-in signal threshold
detection circuitry. When electrical idle inference is not enabled, the rx_signaldetect
signal is inverted and available as pipeelecidle port in the PIPE interface.

Lane Synchronization

In PIPE mode, the word aligner is configured in automatic synchronization state
machine mode that complies with the PCIe specification.
synchronization state machine parameters that implement the PCIe-compliant
synchronization.
Table 1–16. Synchronization State Machine Parameters
Number of valid synchronization (/K28.5/) code groups received to achieve
synchronization
Number of erroneous code groups received to lose synchronization
Number of continuous good code groups received to reduce the error count by
one
Note to
(1) The word aligner supports 10-bit pattern lengths in PIPE mode.

Clock Rate Compensation

In PIPE mode, the rate match FIFO compensates up to ±300 ppm (600 ppm total)
difference between the upstream transmitter and the local receiver reference clock. In
PIPE mode, the rate match FIFO operation is compliant to the version 2.0 of the PCIe
Base Specification. The PCIe protocol requires the receiver to recognize a skip (SKP)
ordered set, and inserts or deletes only one SKP symbol per SKP ordered set received to
prevent the rate match FIFO from overflowing or underflowing. The SKP ordered set
is a /K28.5/ comma (COM) symbol followed by one to five consecutive /K28.0/ SKP
symbols, which are sent by transmitter during the inter-packet gap.
The rate match operation begins after the synchronization state machine in the word
aligner indicates synchronization is acquired, as indicated with logic high on
rx_syncstatus signal. Rate match FIFO insertion and deletion events are
communicated to FPGA fabric on the pipestatus[2..0] port from each channel.

Low-Latency Synchronous PCIe

In PIPE mode, the Cyclone IV GX transceiver supports a lower latency in synchronous
PCIe by reducing the latency across the rate match FIFO. In synchronous PCIe, the
system uses a common reference clocking that gives a 0 ppm difference between the
upstream transmitter's and local receiver's reference clock.
f
When using common reference clocking, the transceiver supports spread-spectrum
clocking. For more information about the SSC support in PCIe Express (PIPE) mode,
refer to the
Cyclone IV Device Handbook,
Volume 2
Parameter
Table 1–16:
Cyclone IV Device Data
Chapter 1: Cyclone IV Transceivers Architecture
Table 1–16
(1)
Sheet.
Transceiver Functional Modes
lists the
Value
4
17
16
February 2015 Altera Corporation
