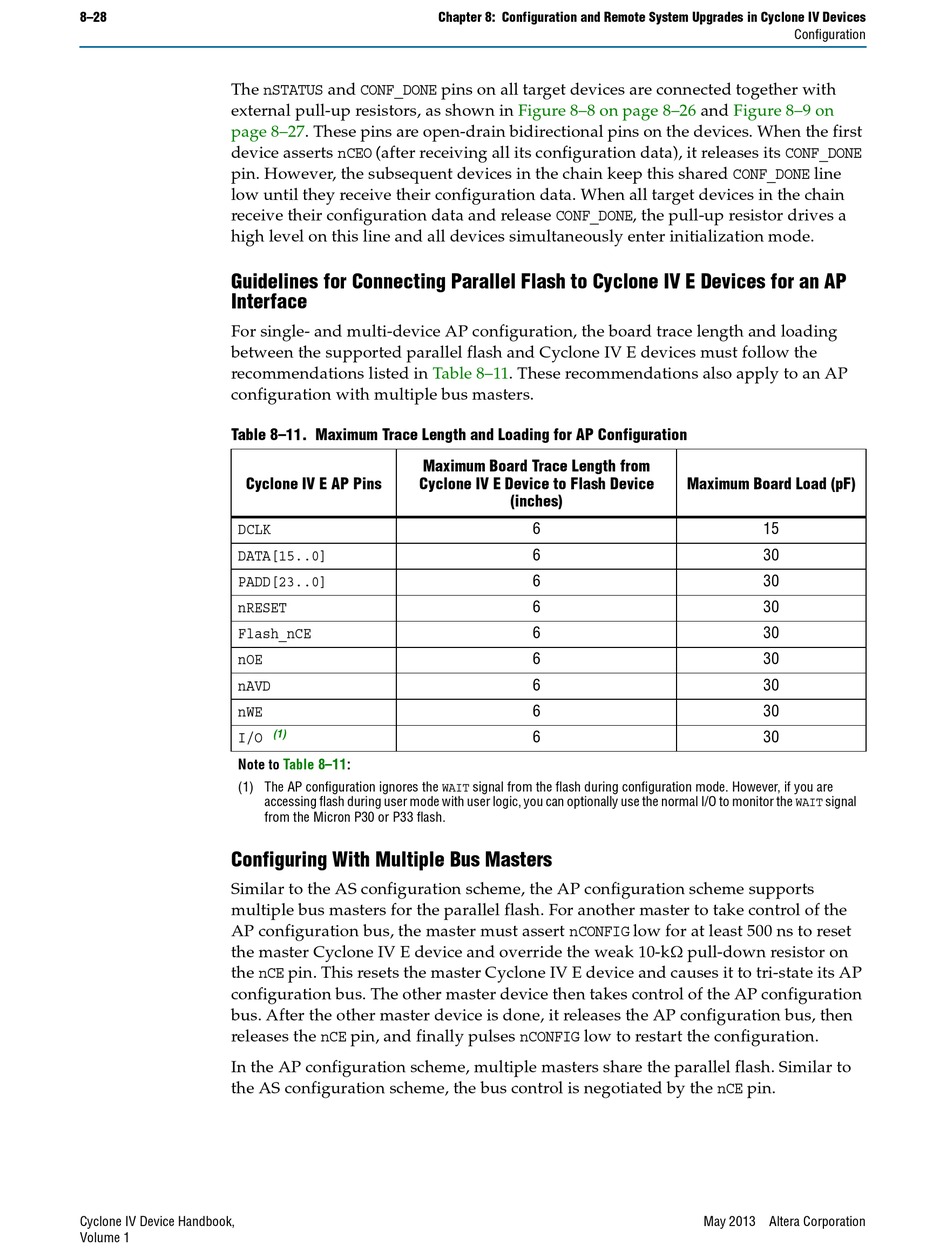

The nSTATUS and CONF_DONE pins on all target devices are connected together with
external pull-up resistors, as shown in
page
device asserts nCEO (after receiving all its configuration data), it releases its CONF_DONE
pin. However, the subsequent devices in the chain keep this shared CONF_DONE line
low until they receive their configuration data. When all target devices in the chain
receive their configuration data and release CONF_DONE, the pull-up resistor drives a
high level on this line and all devices simultaneously enter initialization mode.
Guidelines for Connecting Parallel Flash to Cyclone IV E Devices for an AP
Interface
For single- and multi-device AP configuration, the board trace length and loading
between the supported parallel flash and Cyclone IV E devices must follow the
recommendations listed in
configuration with multiple bus masters.
Table 8–11. Maximum Trace Length and Loading for AP Configuration
Cyclone IV E AP Pins
DCLK
DATA[15..0]
PADD[23..0]
nRESET
Flash_nCE
nOE
nAVD
nWE
I/O
Note to
(1) The AP configuration ignores the WAIT signal from the flash during configuration mode. However, if you are

Configuring With Multiple Bus Masters

Similar to the AS configuration scheme, the AP configuration scheme supports
multiple bus masters for the parallel flash. For another master to take control of the
AP configuration bus, the master must assert nCONFIG low for at least 500 ns to reset
the master Cyclone IV E device and override the weak 10-k pull-down resistor on
the nCE pin. This resets the master Cyclone IV E device and causes it to tri-state its AP
configuration bus. The other master device then takes control of the AP configuration
bus. After the other master device is done, it releases the AP configuration bus, then
releases the nCE pin, and finally pulses nCONFIG low to restart the configuration.
In the AP configuration scheme, multiple masters share the parallel flash. Similar to
the AS configuration scheme, the bus control is negotiated by the nCE pin.
