Chapter 1: Cyclone IV Transceivers Architecture
Transceiver Functional Modes
transmitter in electrical idle
receiver signal detect
receiver spread spectrum clocking
Low-Latency PCS Operation
When configured in low-latency PCS operation, the following blocks in the
transceiver PCS are bypassed, resulting in a lower latency PCS datapath:
8B/10B encoder and decoder
word aligner
rate match FIFO
byte ordering
Figure 1–47
PCS operation.
.

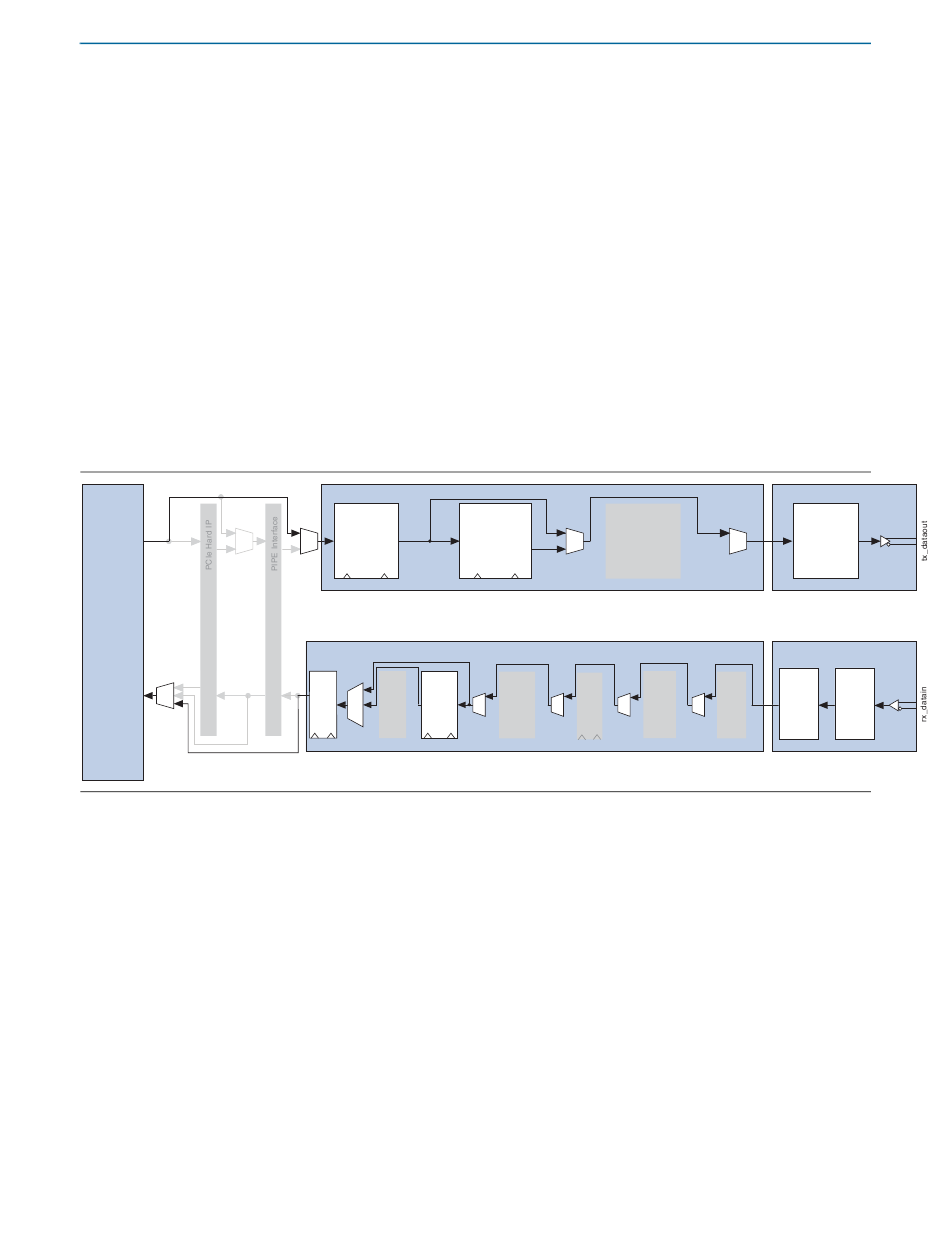

Figure 1–47. Transceiver Channel Datapath in Basic Mode with Low-Latency PCS Operation
FPGA
Fabric
Transmitter in Electrical Idle
The transmitter buffer supports electrical idle state, where when enabled, the
differential output buffer driver is tri-stated. During electrical idle, the output buffer
assumes the common mode output voltage levels. For details about the electrical idle
features, refer to
1
The transmitter in electrical idle feature is required for compliance to the version 2.00
of PHY Interface for the PCI Express (PIPE) Architecture specification for PCIe
protocol implementation.
Signal Detect at Receiver
Signal detect at receiver is only supported when 8B/10B encoder/decoder block is
enabled.
