the device, must be stored in the external host device.
configuration interface connections between the Cyclone IV devices and an external
device for single-device configuration.

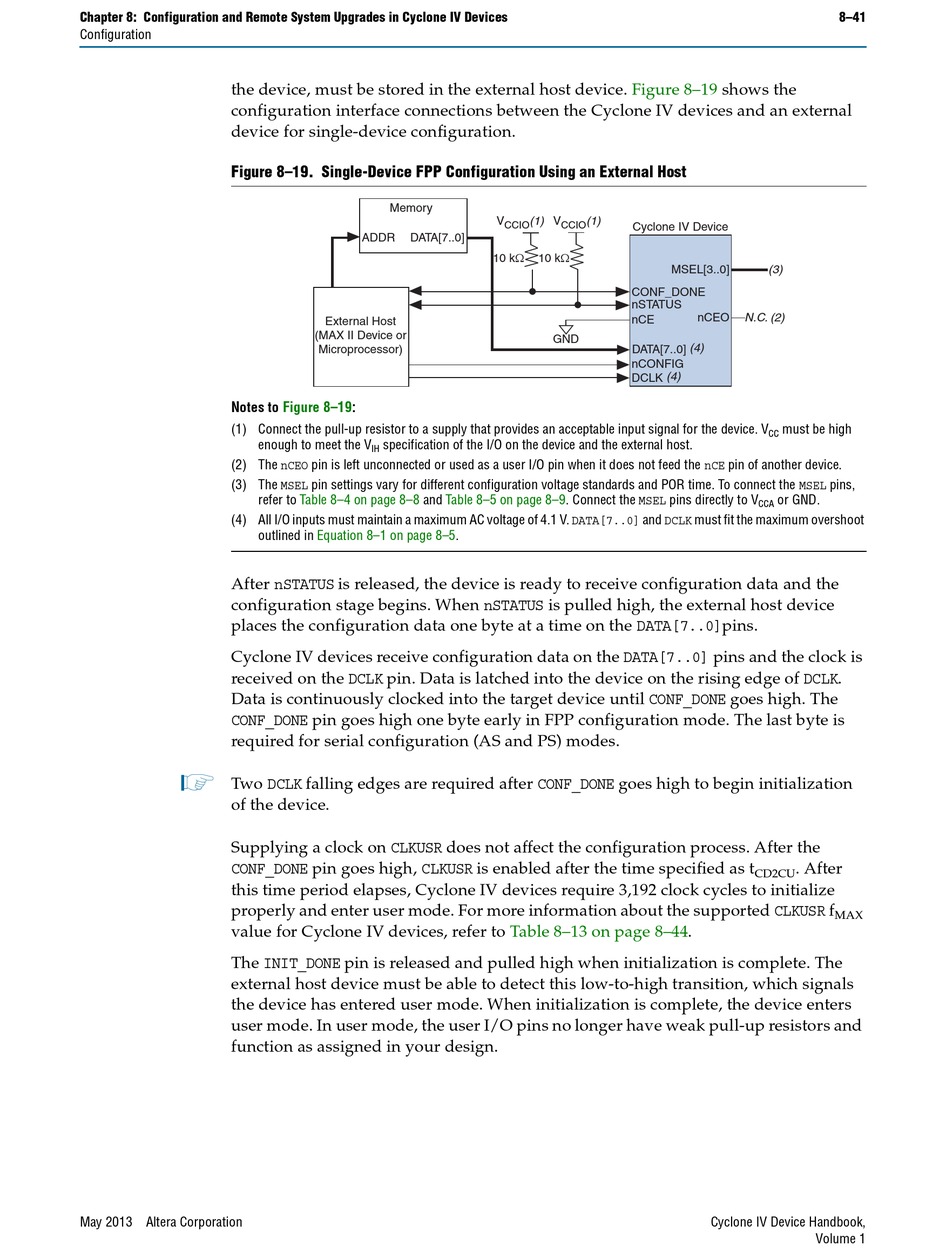

Figure 8–19. Single-Device FPP Configuration Using an External Host
Notes to
(1) Connect the pull-up resistor to a supply that provides an acceptable input signal for the device. V
enough to meet the V
(2) The nCEO pin is left unconnected or used as a user I/O pin when it does not feed the nCE pin of another device.
(3) The MSEL pin settings vary for different configuration voltage standards and POR time. To connect the MSEL pins,
refer to
(4) All I/O inputs must maintain a maximum AC voltage of 4.1 V. DATA[7..0] and DCLK must fit the maximum overshoot
outlined in
After nSTATUS is released, the device is ready to receive configuration data and the
configuration stage begins. When nSTATUS is pulled high, the external host device
places the configuration data one byte at a time on the DATA[7..0]pins.
Cyclone IV devices receive configuration data on the DATA[7..0] pins and the clock is
received on the DCLK pin. Data is latched into the device on the rising edge of DCLK.
Data is continuously clocked into the target device until CONF_DONE goes high. The
CONF_DONE pin goes high one byte early in FPP configuration mode. The last byte is
required for serial configuration (AS and PS) modes.
1
Two DCLK falling edges are required after CONF_DONE goes high to begin initialization
of the device.
Supplying a clock on CLKUSR does not affect the configuration process. After the
CONF_DONE pin goes high, CLKUSR is enabled after the time specified as t
this time period elapses, Cyclone IV devices require 3,192 clock cycles to initialize
properly and enter user mode. For more information about the supported CLKUSR f
value for Cyclone IV devices, refer to
The INIT_DONE pin is released and pulled high when initialization is complete. The
external host device must be able to detect this low-to-high transition, which signals
the device has entered user mode. When initialization is complete, the device enters
user mode. In user mode, the user I/O pins no longer have weak pull-up resistors and
function as assigned in your design.
