Chapter 5: Clock Networks and PLLs in Cyclone IV Devices
Hardware Features
■ When using manual clock switchover, the difference between inclk0 and inclk1
can be more than 20%. However, differences between the two clock sources
(frequency, phase, or both) can cause the PLL to lose lock. Resetting the PLL
ensures that the correct phase relationships are maintained between the input and
output clocks.
■ Both inclk0 and inclk1 must be running when the clkswitch signal goes high to
start the manual clock switchover event. Failing to meet this requirement causes
the clock switchover to malfunction.
■ Applications that require a clock switchover feature and a small frequency drift
must use a low-bandwidth PLL. When referencing input clock changes, the
low-bandwidth PLL reacts slower than a high-bandwidth PLL. When the
switchover happens, the low-bandwidth PLL propagates the stopping of the clock
to the output slower than the high-bandwidth PLL. The low-bandwidth PLL
filters out jitter on the reference clock. However, the low-bandwidth PLL also
increases lock time.
■ After a switchover occurs, there may be a finite resynchronization period for the
PLL to lock onto a new clock. The exact amount of time it takes for the PLL to
re-lock is dependent on the PLL configuration.
■ If the phase relationship between the input clock to the PLL and output clock from
the PLL is important in your design, assert areset for 10 ns after performing a
clock switchover. Wait for the locked signal (or gated lock) to go high before
re-enabling the output clocks from the PLL.
■ Figure 5–20
clock is lost and then increases as the VCO locks on to the secondary clock. After
the VCO locks on to the secondary clock, some overshoot can occur (an
over-frequency condition) in the VCO frequency.

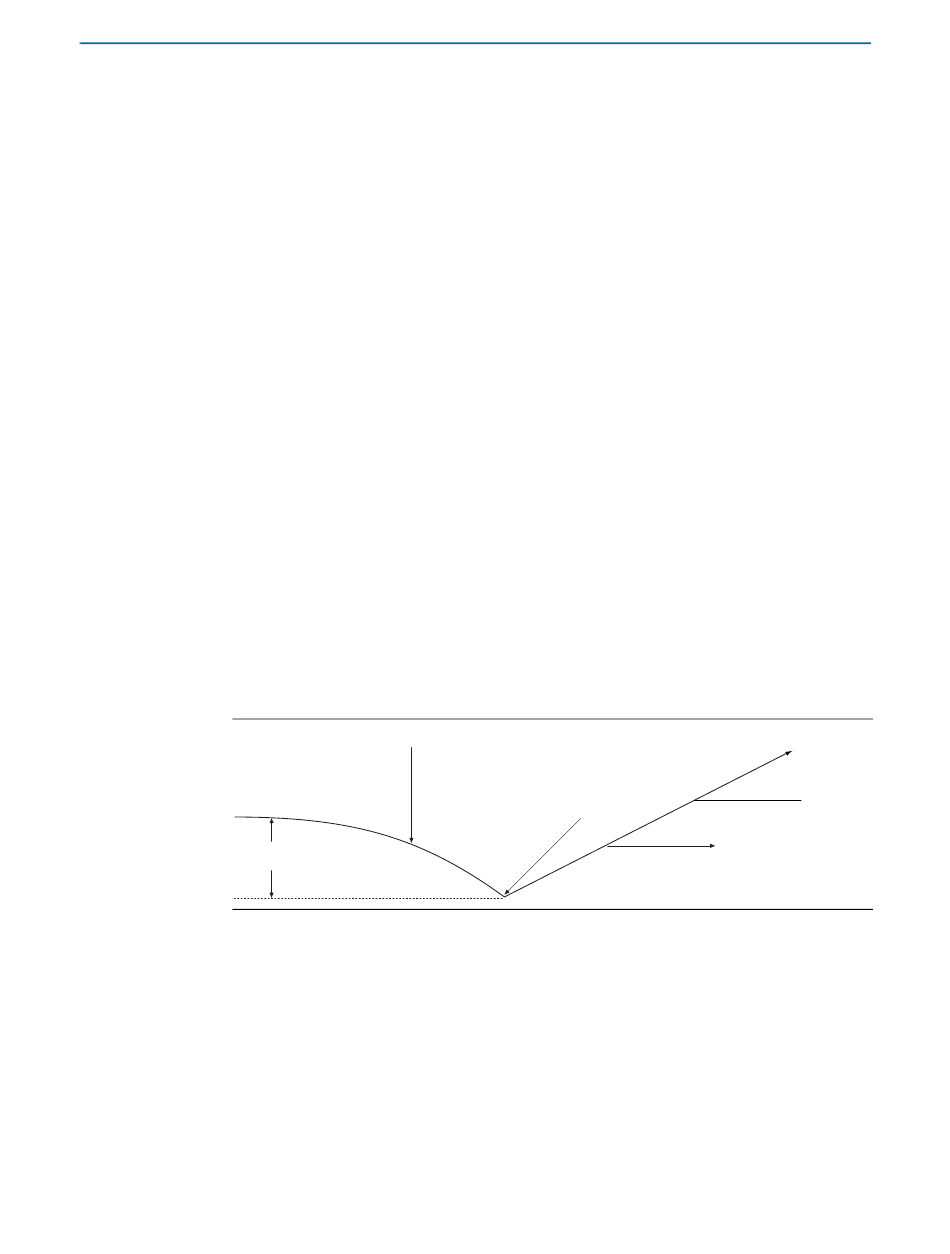

Figure 5–20. VCO Switchover Operating Frequency
■ Disable the system during switchover if the system is not tolerant to frequency
variations during the PLL resynchronization period. You can use the clkbad0 and
clkbad1 status signals to turn off the PFD (pfdena = 0) so the VCO maintains its
last frequency. You can also use the switchover state machine to switch over to the
secondary clock. Upon enabling the PFD, output clock enable signals (clkena) can
disable clock outputs during the switchover and resynchronization period. After
the lock indication is stable, the system can re-enable the output clock or clocks.
October 2012 Altera Corporation
shows how the VCO frequency gradually decreases when the primary
Primary Clock Stops Running
F vco
Switchover Occurs
5–31
Frequency Overshoot
VCO Tracks Secondary Clock
