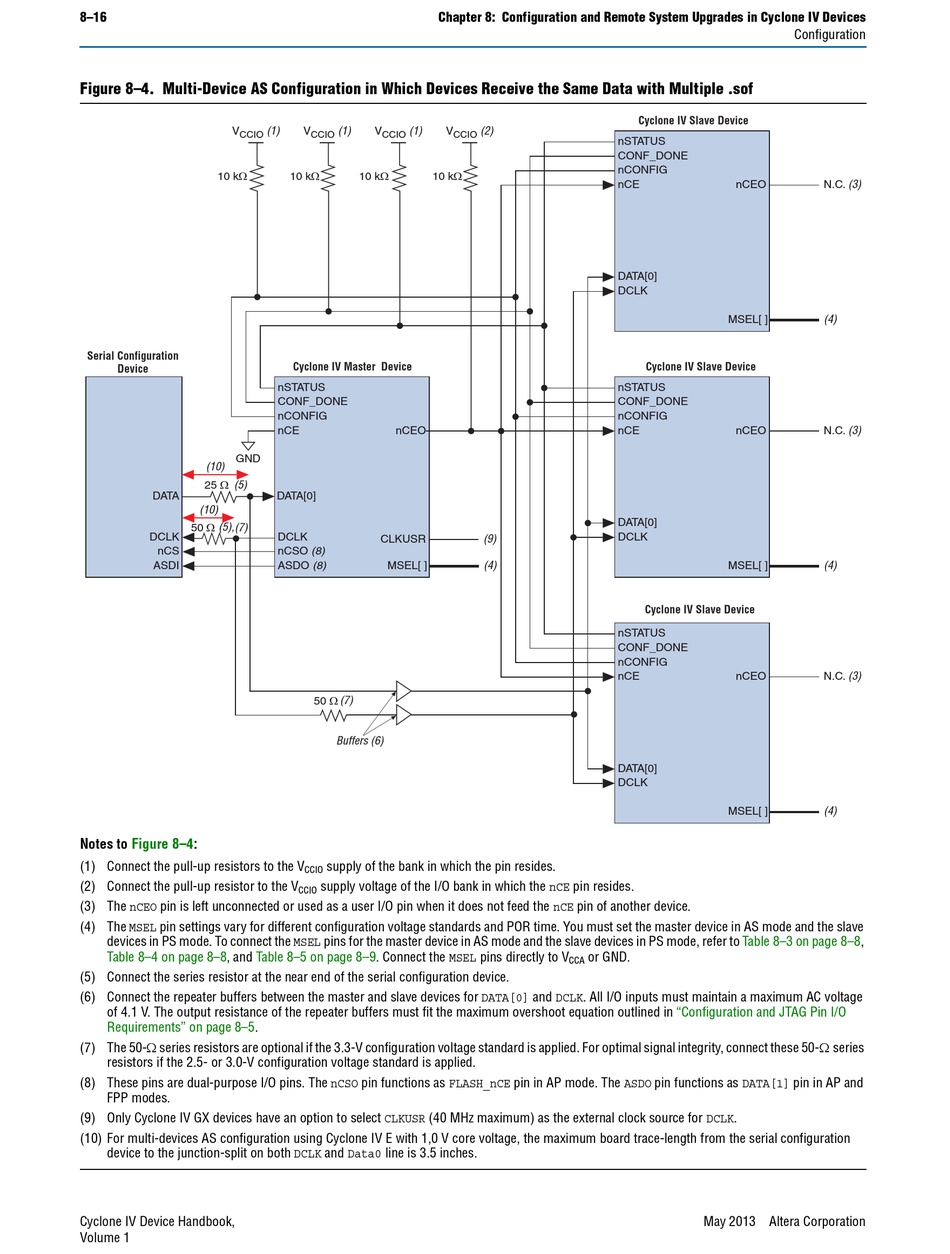

Figure 8–4. Multi-Device AS Configuration in Which Devices Receive the Same Data with Multiple .sof
V
CCIO
10 kΩ
Serial Configuration
Device
GND
(10)
25 Ω
(5)
DATA
(10)
50 Ω
(5), (7)
DCLK
nCS
ASDI
Notes to Figure 8–4:
(1) Connect the pull-up resistors to the V
(2) Connect the pull-up resistor to the V
(3) The nCEO pin is left unconnected or used as a user I/O pin when it does not feed the nCE pin of another device.
(4) The MSEL pin settings vary for different configuration voltage standards and POR time. You must set the master device in AS mode and the slave
devices in PS mode. To connect the MSEL pins for the master device in AS mode and the slave devices in PS mode, refer to
Table 8–4 on page 8–8, and Table 8–5 on page
(5) Connect the series resistor at the near end of the serial configuration device.
(6) Connect the repeater buffers between the master and slave devices for DATA[0] and DCLK. All I/O inputs must maintain a maximum AC voltage
of 4.1 V. The output resistance of the repeater buffers must fit the maximum overshoot equation outlined in
Requirements" on page 8–5.
(7) The 50- series resistors are optional if the 3.3-V configuration voltage standard is applied. For optimal signal integrity, connect these 50- series
resistors if the 2.5- or 3.0-V configuration voltage standard is applied.
(8) These pins are dual-purpose I/O pins. The nCSO pin functions as FLASH_nCE pin in AP mode. The ASDO pin functions as DATA[1] pin in AP and
FPP modes.
(9) Only Cyclone IV GX devices have an option to select CLKUSR (40 MHz maximum) as the external clock source for DCLK.
(10) For multi-devices AS configuration using Cyclone IV E with 1,0 V core voltage, the maximum board trace-length from the serial configuration
device to the junction-split on both DCLK and Data0 line is 3.5 inches.
