Transceiver Clocking Architecture

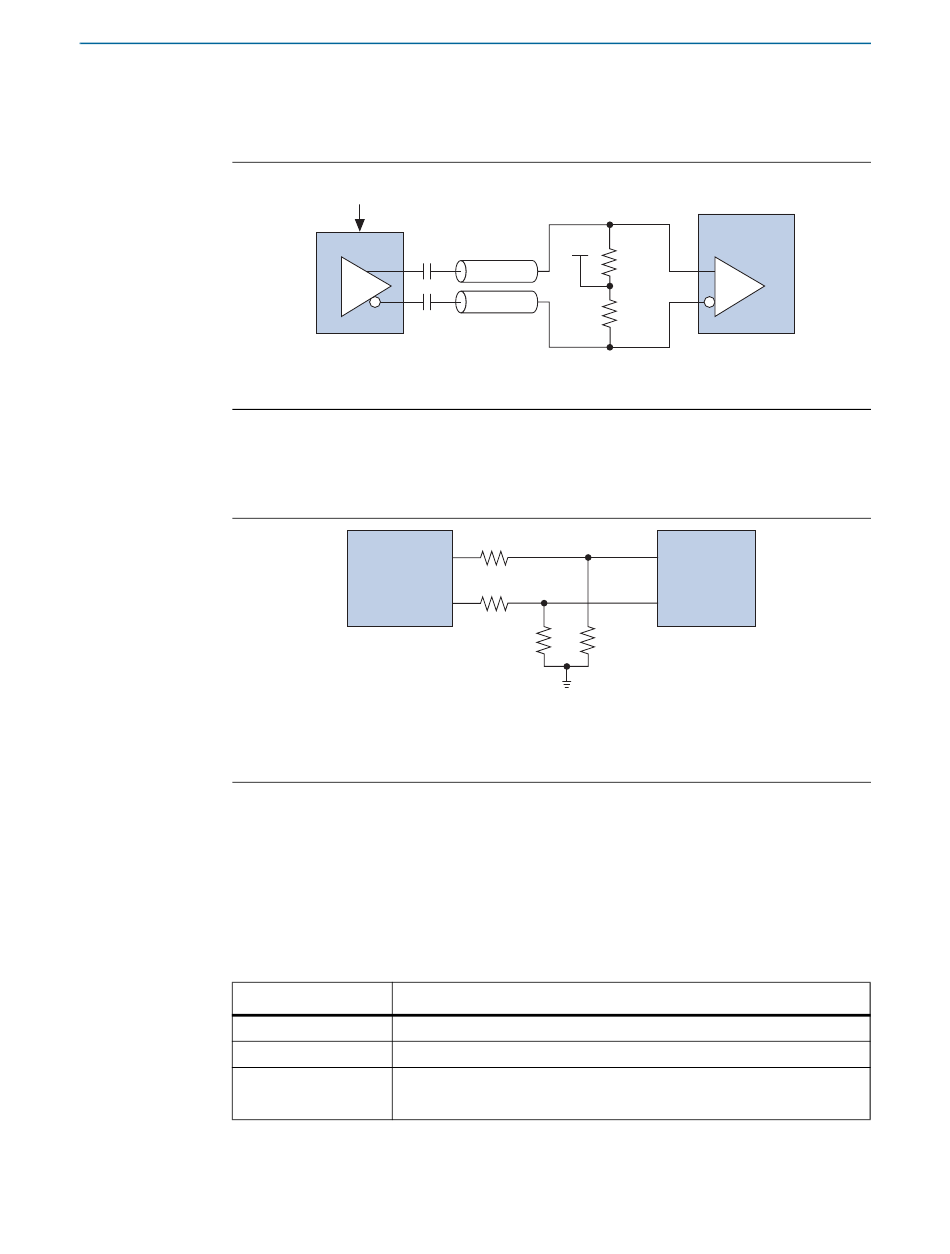

Figure 1–27
for REFCLK pins.
Figure 1–27. AC-Coupled Termination Scheme for a Reference Clock
Note to
(1) For more information about the V
Figure 1–28
configured as a HCSL input.
Figure 1–28. Termination Scheme for a Reference Clock When Configured as HCSL
Notes to
(1) No biasing is required if the reference clock signals are generated from a clock source that conforms to the PCIe
specification.
(2) Select values as recommended by the PCIe clock source vendor.

Transceiver Channel Datapath Clocking

Channel datapath clocking varies with channel configuration options and PCS
configurations. This section describes the clock distribution from the left PLLs for
transceiver channels and the datapath clocking in various supported configurations.
Table 1–7
Table 1–7. PLL Clocks for Transceiver Datapath
CDR clocks
High-speed clock
Low-speed clock
