3–4

Dynamic Reconfiguration Controller Port List

Table 3–2
reconfiguration controller.

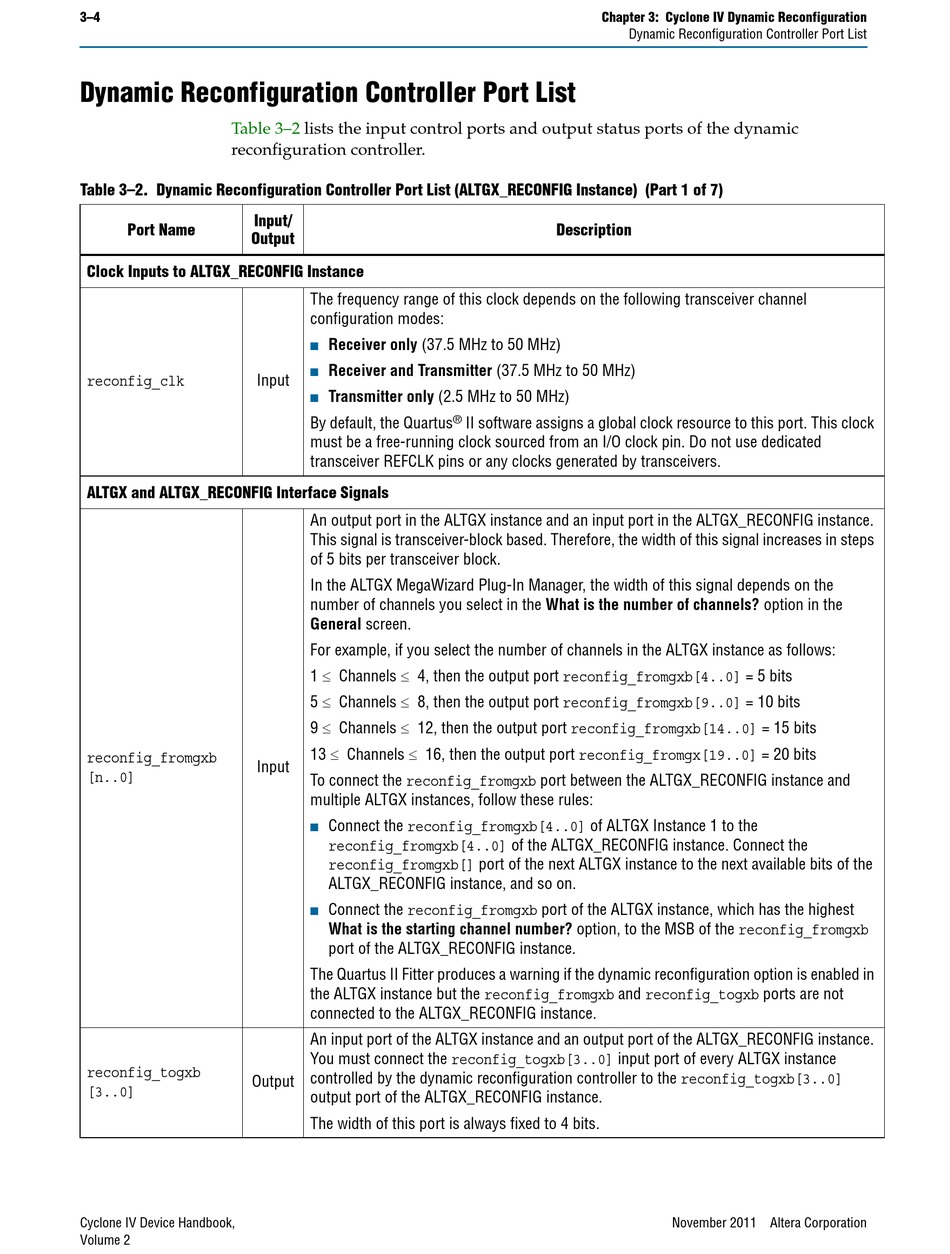

Table 3–2. Dynamic Reconfiguration Controller Port List (ALTGX_RECONFIG Instance) (Part 1 of 7)
Input/
Port Name
Output
Clock Inputs to ALTGX_RECONFIG Instance
Input
reconfig_clk
ALTGX and ALTGX_RECONFIG Interface Signals
reconfig_fromgxb
Input
[n..0]
reconfig_togxb
Output
[3..0]
Cyclone IV Device Handbook,
Volume 2
lists the input control ports and output status ports of the dynamic
The frequency range of this clock depends on the following transceiver channel
configuration modes:
Receiver only (37.5 MHz to 50 MHz)
■
Receiver and Transmitter (37.5 MHz to 50 MHz)
■
Transmitter only (2.5 MHz to 50 MHz)
■
®
By default, the Quartus II software assigns a global clock resource to this port. This clock
must be a free-running clock sourced from an I/O clock pin. Do not use dedicated
transceiver REFCLK pins or any clocks generated by transceivers.
An output port in the ALTGX instance and an input port in the ALTGX_RECONFIG instance.
This signal is transceiver-block based. Therefore, the width of this signal increases in steps
of 5 bits per transceiver block.
In the ALTGX MegaWizard Plug-In Manager, the width of this signal depends on the
number of channels you select in the What is the number of channels? option in the
General screen.
For example, if you select the number of channels in the ALTGX instance as follows:
1  Channels  4, then the output port reconfig_fromgxb[4..0] = 5 bits
5  Channels  8, then the output port reconfig_fromgxb[9..0] = 10 bits
9  Channels  12, then the output port reconfig_fromgxb[14..0] = 15 bits
13  Channels  16, then the output port reconfig_fromgx[19..0] = 20 bits
To connect the reconfig_fromgxb port between the ALTGX_RECONFIG instance and
multiple ALTGX instances, follow these rules:
Connect the reconfig_fromgxb[4..0] of ALTGX Instance 1 to the
■
reconfig_fromgxb[4..0] of the ALTGX_RECONFIG instance. Connect the
reconfig_fromgxb[] port of the next ALTGX instance to the next available bits of the
ALTGX_RECONFIG instance, and so on.
Connect the reconfig_fromgxb port of the ALTGX instance, which has the highest
■
What is the starting channel number? option, to the MSB of the reconfig_fromgxb
port of the ALTGX_RECONFIG instance.
The Quartus II Fitter produces a warning if the dynamic reconfiguration option is enabled in
the ALTGX instance but the reconfig_fromgxb and reconfig_togxb ports are not
connected to the ALTGX_RECONFIG instance.
An input port of the ALTGX instance and an output port of the ALTGX_RECONFIG instance.
You must connect the reconfig_togxb[3..0] input port of every ALTGX instance
controlled by the dynamic reconfiguration controller to the reconfig_togxb[3..0]
output port of the ALTGX_RECONFIG instance.
The width of this port is always fixed to 4 bits.
Chapter 3: Cyclone IV Dynamic Reconfiguration
Dynamic Reconfiguration Controller Port List
Description
November 2011 Altera Corporation
