Table 1–2

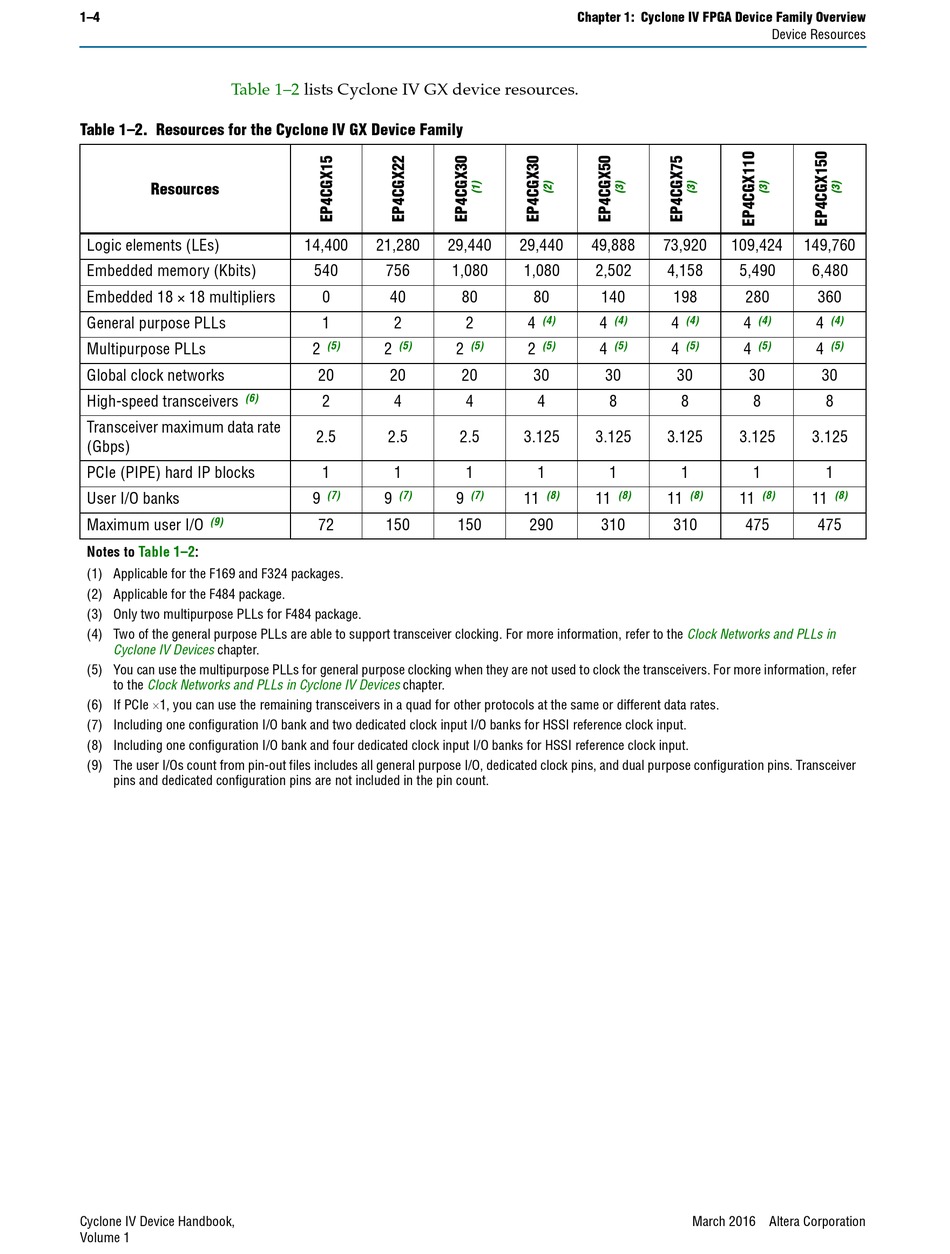

Table 1–2. Resources for the Cyclone IV GX Device Family
Resources
Logic elements (LEs)
Embedded memory (Kbits)
Embedded 18 × 18 multipliers
General purpose PLLs
Multipurpose PLLs
Global clock networks
(6)
High-speed transceivers
Transceiver maximum data rate
(Gbps)
PCIe (PIPE) hard IP blocks
User I/O banks
(9)
Maximum user I/O
Notes to Table 1–2:
(1) Applicable for the F169 and F324 packages.
(2) Applicable for the F484 package.
(3) Only two multipurpose PLLs for F484 package.
(4) Two of the general purpose PLLs are able to support transceiver clocking. For more information, refer to the
Cyclone IV Devices chapter.
(5) You can use the multipurpose PLLs for general purpose clocking when they are not used to clock the transceivers. For more information, refer
to the Clock Networks and PLLs in Cyclone IV Devices
(6) If PCIe 1, you can use the remaining transceivers in a quad for other protocols at the same or different data rates.
(7) Including one configuration I/O bank and two dedicated clock input I/O banks for HSSI reference clock input.
(8) Including one configuration I/O bank and four dedicated clock input I/O banks for HSSI reference clock input.
(9) The user I/Os count from pin-out files includes all general purpose I/O, dedicated clock pins, and dual purpose configuration pins. Transceiver
pins and dedicated configuration pins are not included in the pin count.
Cyclone IV Device Handbook,
Volume 1
lists Cyclone IV GX device resources.
14,400 21,280 29,440
540 756 1,080
0 40 80
1 2 2
(5) (5) (5)
2 2 2
20 20 20
2 4 4
2.5 2.5 2.5
1 1 1
(7) (7) (7)
9 9 9
72 150 150
chapter.
Chapter 1: Cyclone IV FPGA Device Family Overview
29,440 49,888 73,920
1,080 2,502 4,158
80 140 198
(4) (4) (4)
4 4 4
(5) (5) (5)
2 4 4
30 30 30
4 8 8
3.125 3.125 3.125
1 1 1
(8) (8) (8)
11 11 11
290 310 310
Clock Networks and PLLs in
