Using the Broadcast Option

5.23.4 Monitor Circuit

With the monitor circuit, the data test center (by remote access) creates a "hitless" monitor
connection (i.e.,one that can be created, maintained and dropped without affecting the
information on the circuit being tested) between the data test center and the Node_1 Device.
Highlighting the desired circuit and pressing the "N" key brings up the add monitor circuit
screen shown in Figure 5-66.
5-80

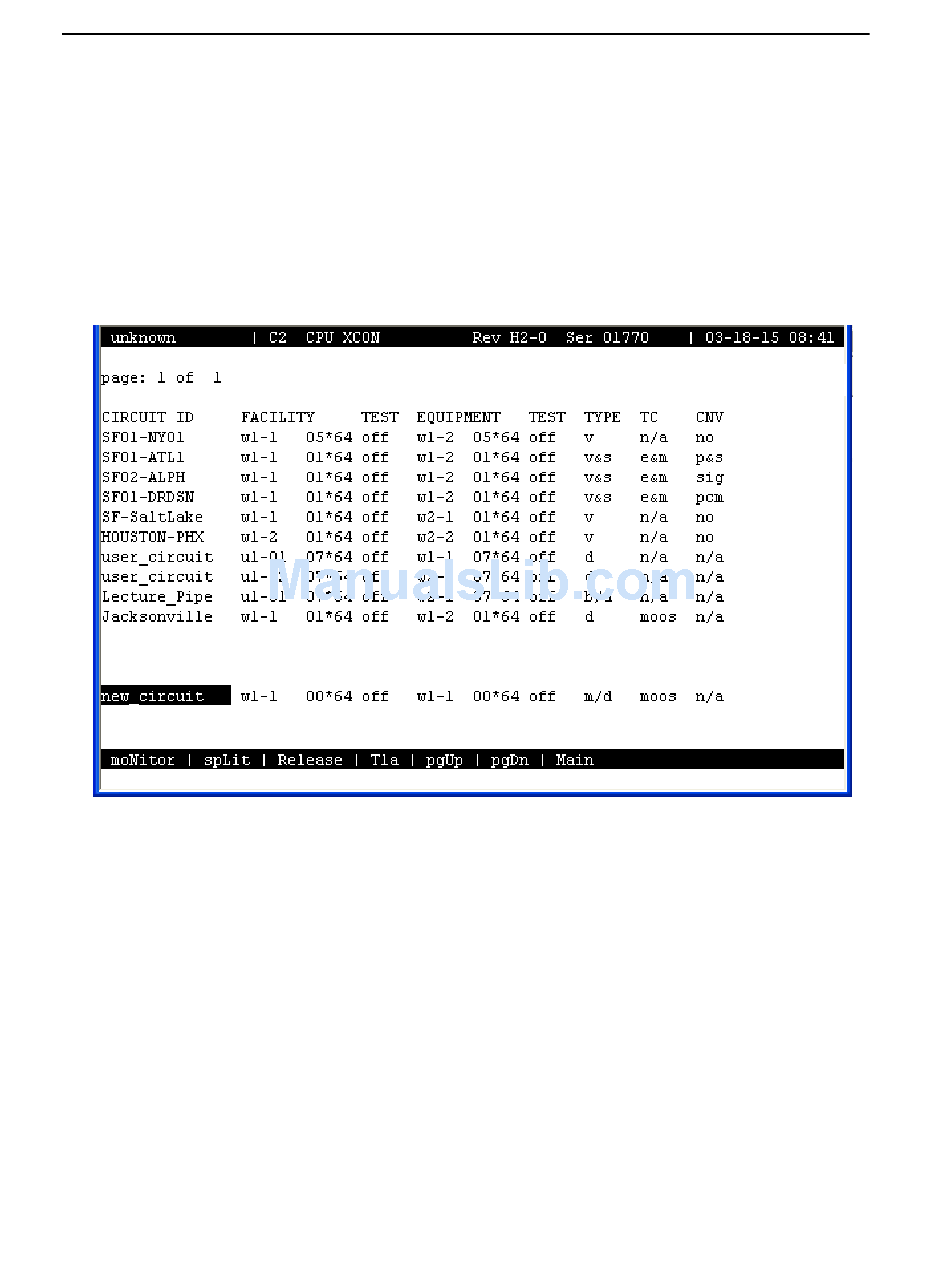

Figure 5-66.The Add Monitor Circuit Screen
