OHSU-4P Card
OHSU
C37.94
4 PORT
P1
P2
P3
P4

15.3.1.1 Installing the Four-Port OHSU Card

Install the Four-Port OHSU Card into any user card slot. These slots are U1 to U8 on the
two-sided chassis and front-loading chassis with power supplies on top, or P1 to P4 and W1
to W4 on the front-loading chassis with power supplies on the side.

15.3.2 OHSU card cables

The OHSU card utilizes duplex 50 um or 62.5 um optical fiber cables with BFOC12.5 (ST)
connectors. A separate transmit and receive fiber is required for each port.
Data Cards

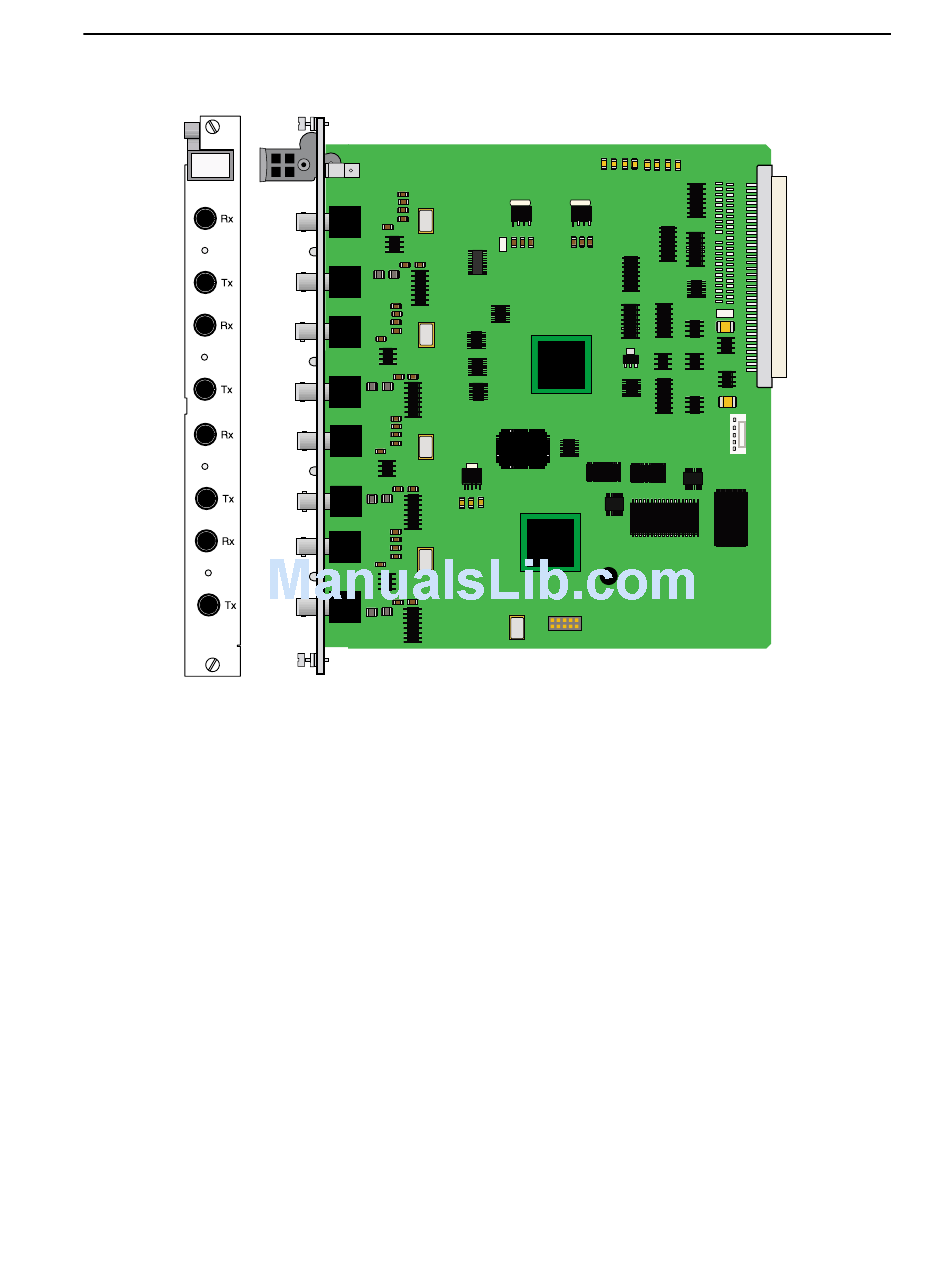

Figure 15-2.8000-OHSU-4P OHSU Card
OHSU Card Description
15-3
