Zhone 6388-A1-XXX Technical Specifications

Revolutionary
combination of standards
based ADSL and ReachDSL
on a single platform
DELT - Dual Ended Loop
Testing
Automatically selects
technology with best
performance - ADSL,
ADSL2, ADSL2+, or
ReachDSL 2.2
Speeds beyond 24 Mbps
using ADSL2+
Compatible with all
DSLAMs providing
standard ADSL, ADSL2,
and ADSL2+
802.11b/g Wireless Access
Point
Integrated telephone
filter

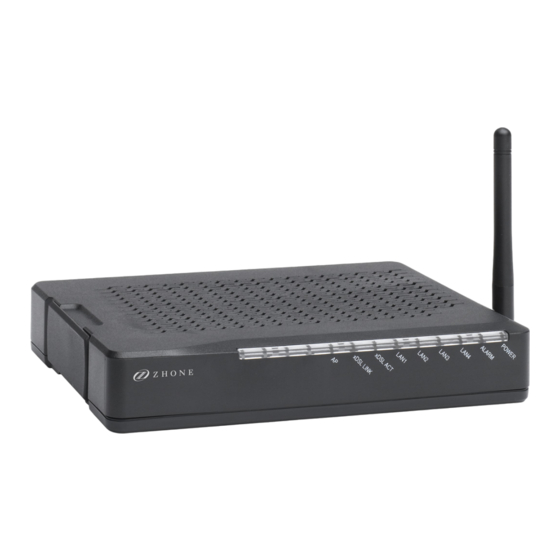

ADSL2+/ReachDSL 4 Port WiFi Modem
6388-A1-xxx
ADSL2+/ReachDSL 4 Port Switch Bridge/Router with
WiFi
With Zhone's innovative, easy to use ADSL2+/R CPE family, service
providers can provide ADSL2+ service and ReachDSL service in the same
unit, ensuring coverage to the entire subscriber base.
The Zhone 6300 enhanced CPE are easily user-installed. The embedded
web-based user interface is designed to simplify ADSL deployment. All
products provide an Ethernet connection that is auto-sensing, eliminating the
worry about connection cable type (straight-through vs crossover). All units
include a built in POTS filter that eliminates the expense of an external filter as
well as reduces installation errors.
The 6300 enhanced CPE all default to a simple bridge. This and other default
settings make for a quick and easy installation that doesn't require any
configuration.
When operating in router mode, these gateways support DHCP
Server/Relay/Client, NAPT, as well as RIP, dynamic routing, port forwarding,
static routing, and ping initiation. For security, firewall functions including
PAP/CHAP and Packet Filtering are supported.
In addition, all of the CPE that make up the 6300 family support DELT, or Dual
End Loop Test. Because DELT is a dual-ended test, it requires equipment that
supports the DELT feature at both ends of the copper loop.
DELT is primarily used for reactive tests on a loop after a modem has been
deployed—either to help troubleshoot a line or to capture a baseline of loop
characteristics at the time of installation.
