Zhone 6652-A2 Technical Specifications

Programmable support of
plan 997, 998, FX and
China plan, and capable
of supporting VDSL2
profiles 8a/b/c/d, 12a/b,
17a and 30a
Optional US0 band for
long reach applications
DMT based packet mode
supports Ethernet-over
VDSL (EoVDSL) symmetric
line data rates up to 100
Mbps downstream and
100Mbps upstream at
short loop
Auto sensing Ethernet
ports
Supports packet transfer
mode with HDLC or EFM
framing for EoVDSL
Integrated Layer 2 switch
with traffic classification
and QoS support,
including IP QoS based on
IP, physical port
IP routing, NAT, PAT, SPI
firewall and packet
filtering
VDSL2 Bridged/Router
6652-A2
VDSL2 Bridged/Router 4-Port Modem

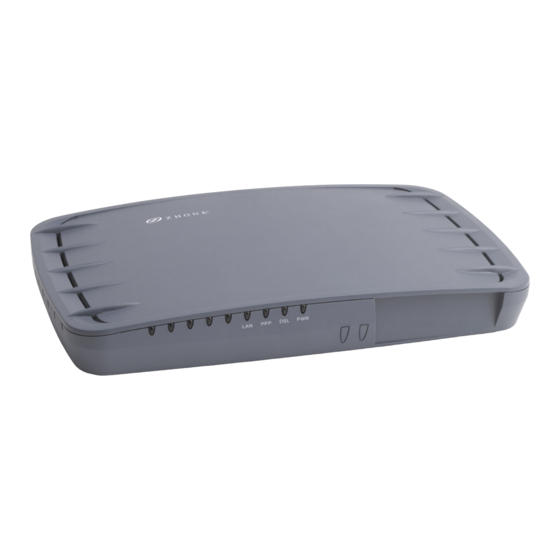

The 6652-A2 is a VDSL2 modem utilizing the Ikanos chipset with bridged
and router mode that complies with various VDSL2 standards, and
provides unprecedented broadband service over a single pair of copper
wire. The four 10/100 Base-T Ethernet Ports can easily connect to any PC
or LAN in a home or small office environment. Quality and multimedia
service is ensured with its powerful traffic control and management over
layer 2 or layer 3. While the NAT/PAT technologies share the broadband
connection to all its LAN clients for all prevailing internet applications,
the embedded firewall keeps out those malicious attacks and intrusions.
Network management is implemented so it can be easily configured and
managed by the service provider.
