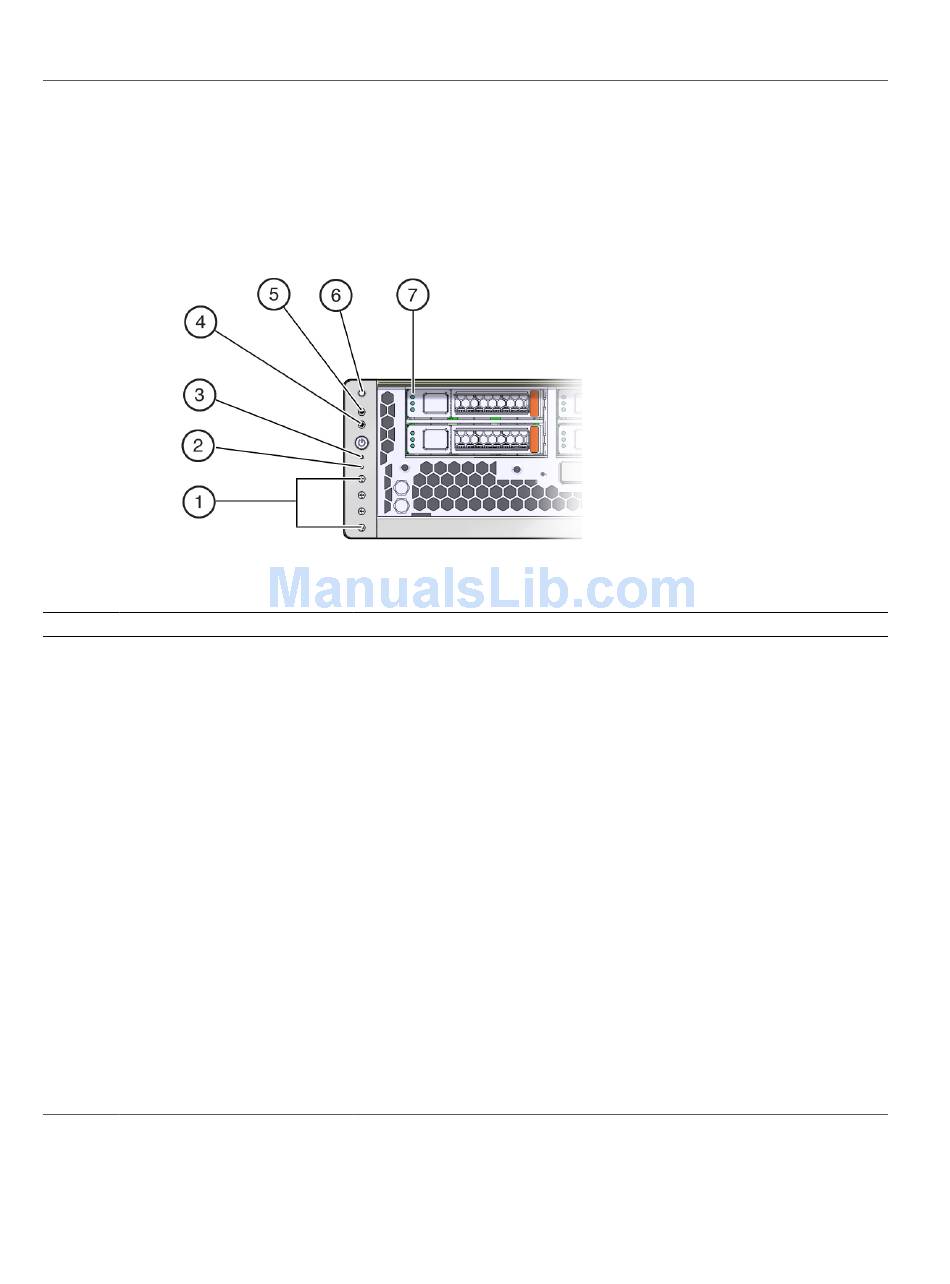

Front Panel LEDs

No. LED
1 Alarm LEDs:
■ Critical Alarm LED (red)
■ Major Alarm LED (red)
■ Minor Alarm LED (amber)
■ User Alarm LED (amber)
2 Rear PS Status LED (amber)
3 SP Status LED
4 OK LED (green)
Description
Indicates a critical alarm condition.
Indicates a major alarm condition.
Indicates a minor alarm condition.
Indicates a user alarm condition.
Indicates the state of the power supplies:
■ Off – Steady state, no service action is required.
■ On – Fault with one of the power supplies.
Indicates the state of the SP:
■ Green flashing –SP is booting.
■ Green steady –SP booted and OK , no service action is required.
Indicates these conditions:
■ Off – Server is not running in its normal state. Server power might be off. The SP
might be running.
■ Steady on – Server is powered on and is running in its normal operating state. No
service actions are required.
■ Fast blink – Server is running in Standby mode and can be quickly returned to full
function.
■ Slow blink – Normal but transitory activity is taking place. Slow blinking might
indicate that system diagnostics are running or that the server is booting.
