4. Disconnect all remaining cables from the motherboard, and move them out of
the way.

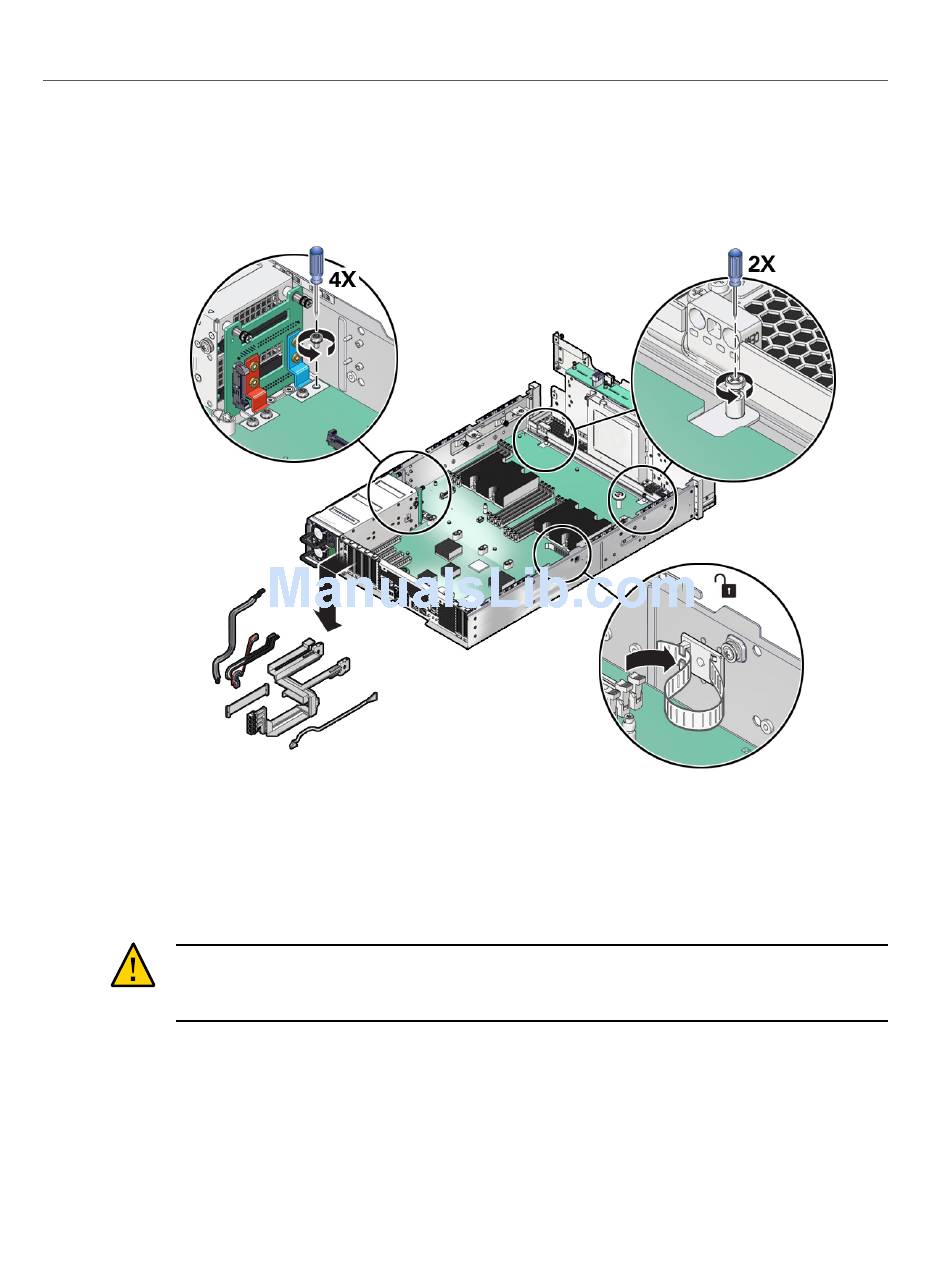

5. Remove the right thumb screw bracket.
6. Remove the four bus bar screws.
7. Fully loosen the two captive screws at the front of the motherboard.
As you are removing the motherboard, take extra care not to flex or dislodge the
Caution -
DIMMs. Leaving them in place ensures that you can populate the new motherboard with the
same configuration.
Grasp the two motherboard handles, slide the motherboard forward off of the
8.
alignment pins, then tilt the motherboard to clear the cable tie mounted on the
left.
Remove the Motherboard
Servicing the Motherboard 229
