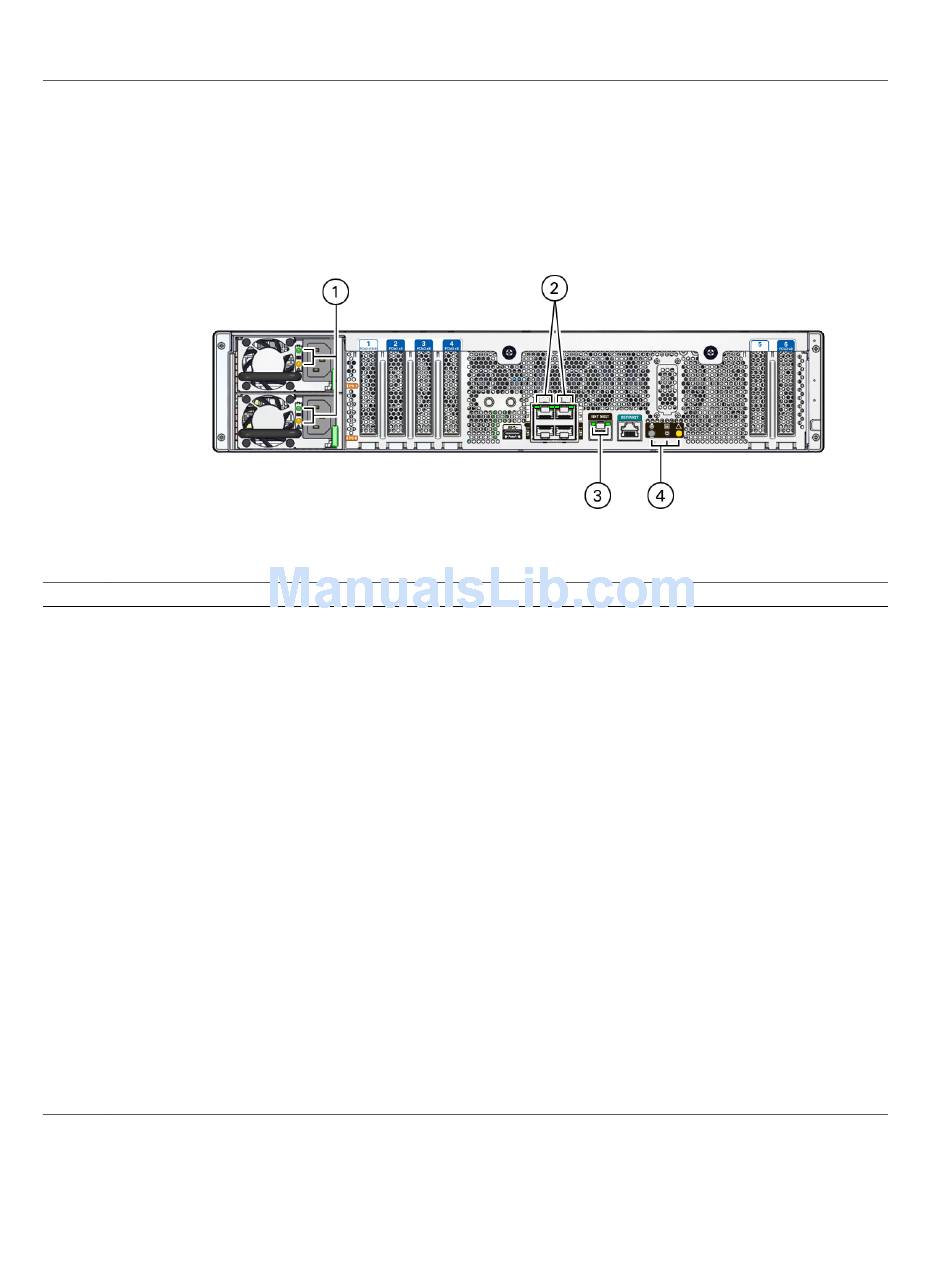

Rear Panel LEDs

No. LED
1 Power supply status LEDs
(note AC supply shown):
■ OK LED (top, green)
■ Service Required LED
(amber)
2 NET 0 to NET 3 Status
LEDs
Link and Activity LED
(green)
3 NET MGT status LEDs:
■ Link and Activity LED
(green)
■ Speed LED (amber/
green)
4 Chassis status LEDs:
Description
Indicates that power supply is functional (on) or with fault (off).
On indicates that service for the power supply is required. POST and Oracle ILOM are two
diagnostic tools that can detect a fault or failure resulting in this indication.
The Oracle ILOM show faulty command provides details about any faults that cause this
indicator to light.
Indicates these conditions:
■ On or blinking – A link is established.
■ Off – No link is established.
Indicates these conditions:
■ On – A link is established.
■ Blinking– There is activity on the link.
■ Off – No link is established.
Indicates these conditions:
■ Green – The link is operating as a 10000-Mbps connection.
■ Amber – The link is operating as a Gigabit connection (1000-Mbps).
■ Off – The link is operating as a 100-Mbps connection or there is no link.
