Oracle Netra SPARC S7-2 Service Manual page 70

Remove the Fan Tray
Note -
If servicing the components below the fan tray, such as the motherboard,
4.
remove the air ducts.
See "Remove the Air Duct" on page

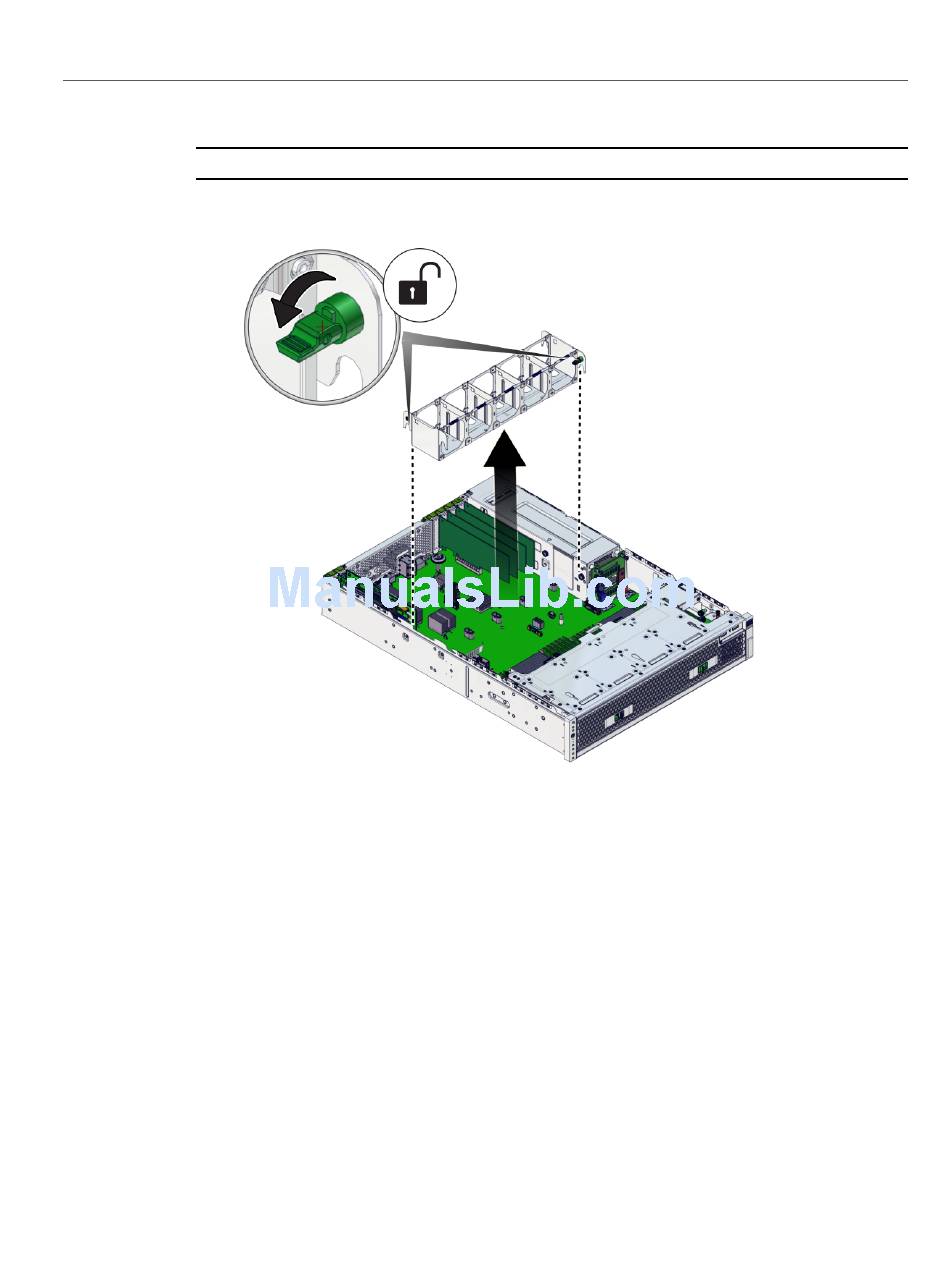

Remove the fan tray bracket that is attached to the chassis.
5.
6. Consider your next step.
Service the hard drive signal, hard drive power, or cables.
■
See
Pivot the drive cage.
■
70 Netra SPARC S7-2 Server Service Manual • February 2017
Be aware of all cable routing with respect to duct alignment pins.
"Servicing the Cables" on page
75.
193.
