Install the LED Board and Cable
Installing the LED board is a cold-service operation. You must power off the server before
installing the LED board.
Connect the LED cable to the LED assembly.
1.

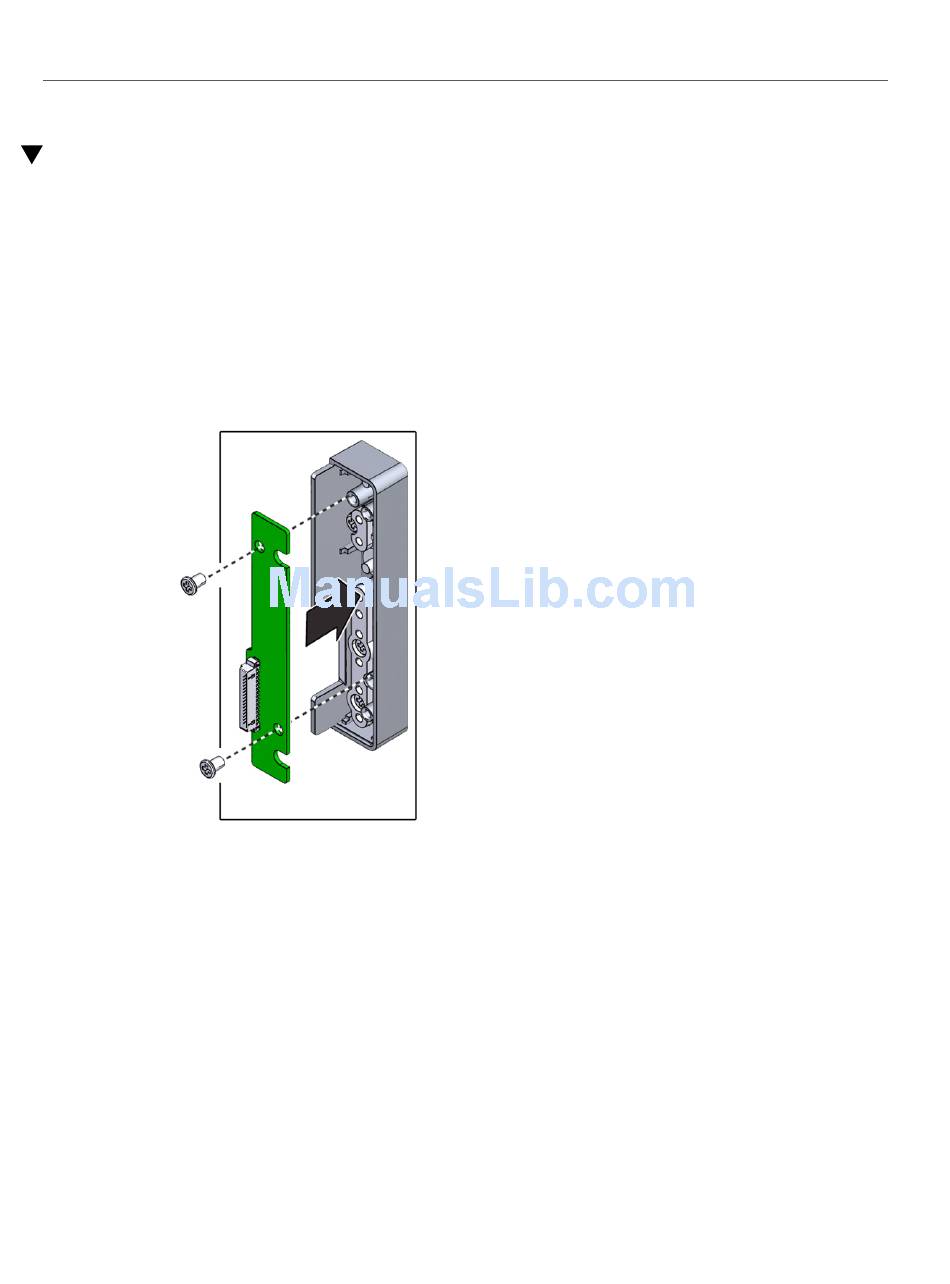

Set the LED board into the LED assembly.
2.
3.
Install and tighten the two screws.
Install the LED Board and Cable
Servicing the LED Board
221
