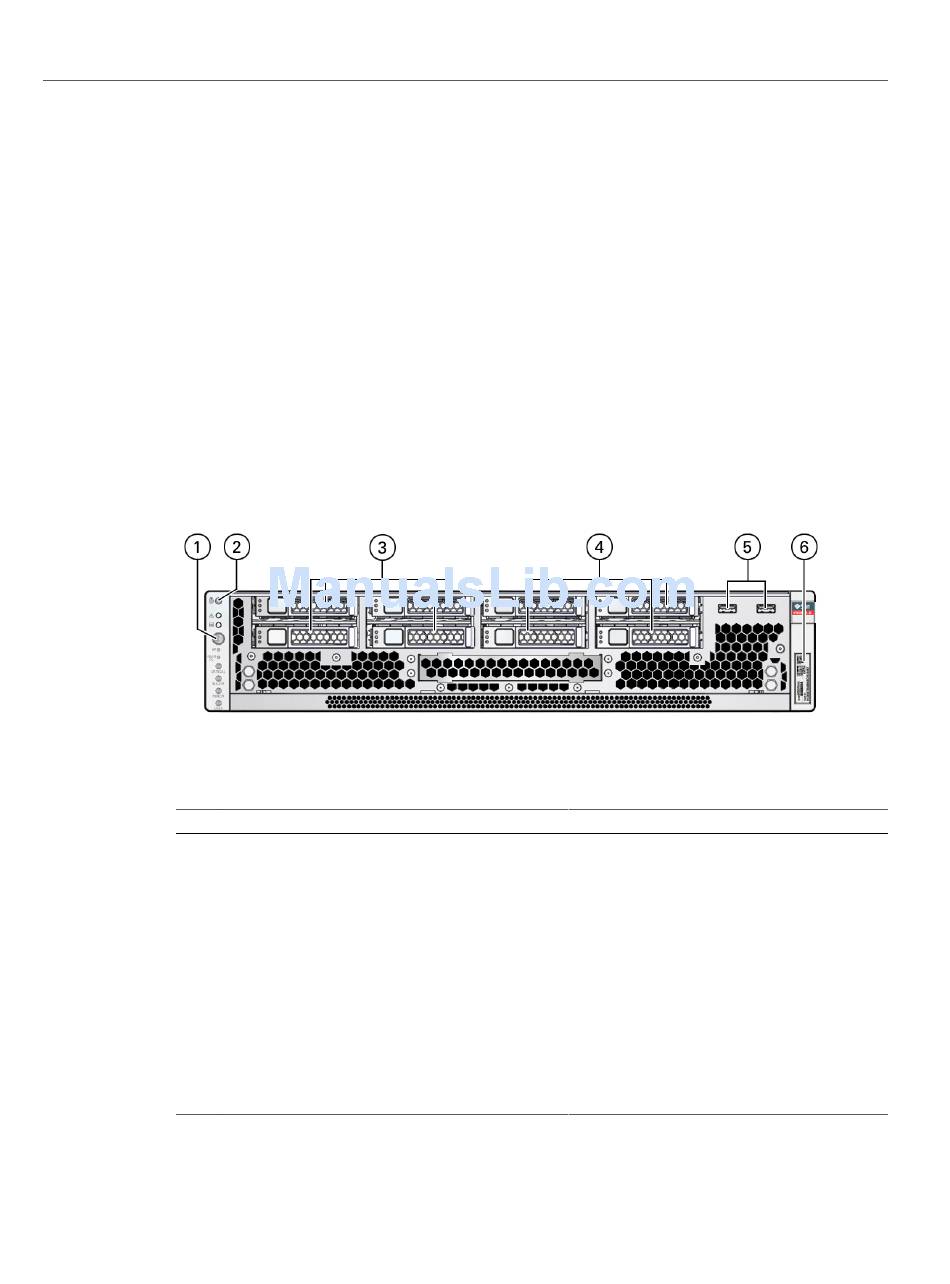

Front Panel Components (Service)

No.
1
2
3
and
4
Description
Power button
Locator button
HDD/SSD and NVMe drives
HDD/SDD are supported in all slots.
NVMe is supported only in slots 0-3.
■ Bottom row – Slots 0, 2, 4, and 6.
■ Top row – Slots 1, 3, 5, and 7.
Front Panel Components (Service)
Links
"Power Off the Server (Power Button -
Graceful)" on page 51
"Power On the Server (Power
Button)" on page 250
"Front Panel Components
(Service)" on page 17
"Servicing SAS Drives" on page 85
"Servicing NVMe Storage Drives" on page 97
