Interpreting LEDs
Step
2.
Related Information
"Checking for Faults" on page 29
■
"Performing Advanced Troubleshooting" on page 40
■
"Clear a Fault Manually" on page 45
■

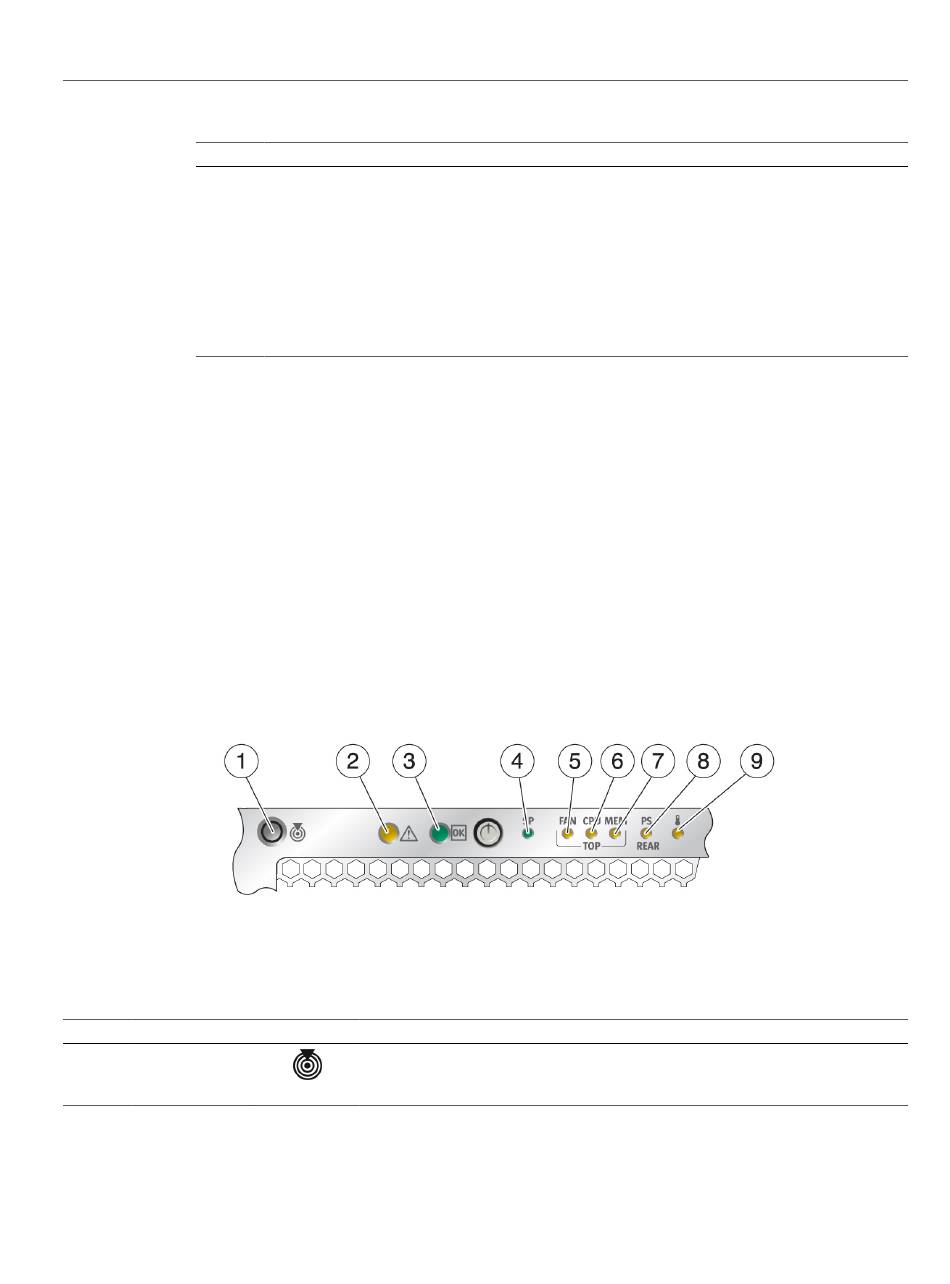

Front Panel Controls and LEDs

No. LED
1 System Server
Locator LED and
button (white)
36 SPARC T7-2 Server Service Manual • July 2019
Description
Check the LEDs on the individual components.
Component LEDs might not be lit even though the
component is faulty. Rely on software to determine
if a component is faulty, see "Identify Faulted
Components" on page 31.
Icon or Label Description
You can turn on the Locator LED to identify a particular server. When lit, the LED blinks
rapidly. Turn on the Locator LED by pressing the Locator button with a stylus, or see
"Locate the Server" on page
Links
■ "Rear Panel Controls and
LEDs" on page 38
■ "Servicing Drives" on page 65
■ "Servicing Fan Modules" on page 77
■ "Servicing Power Supplies" on page 85
■ "Servicing Memory Risers and
DIMMs" on page 91
■ "Servicing PCIe Cards" on page 125
■ "Servicing the Motherboard" on page 147
