Remove the Air Duct

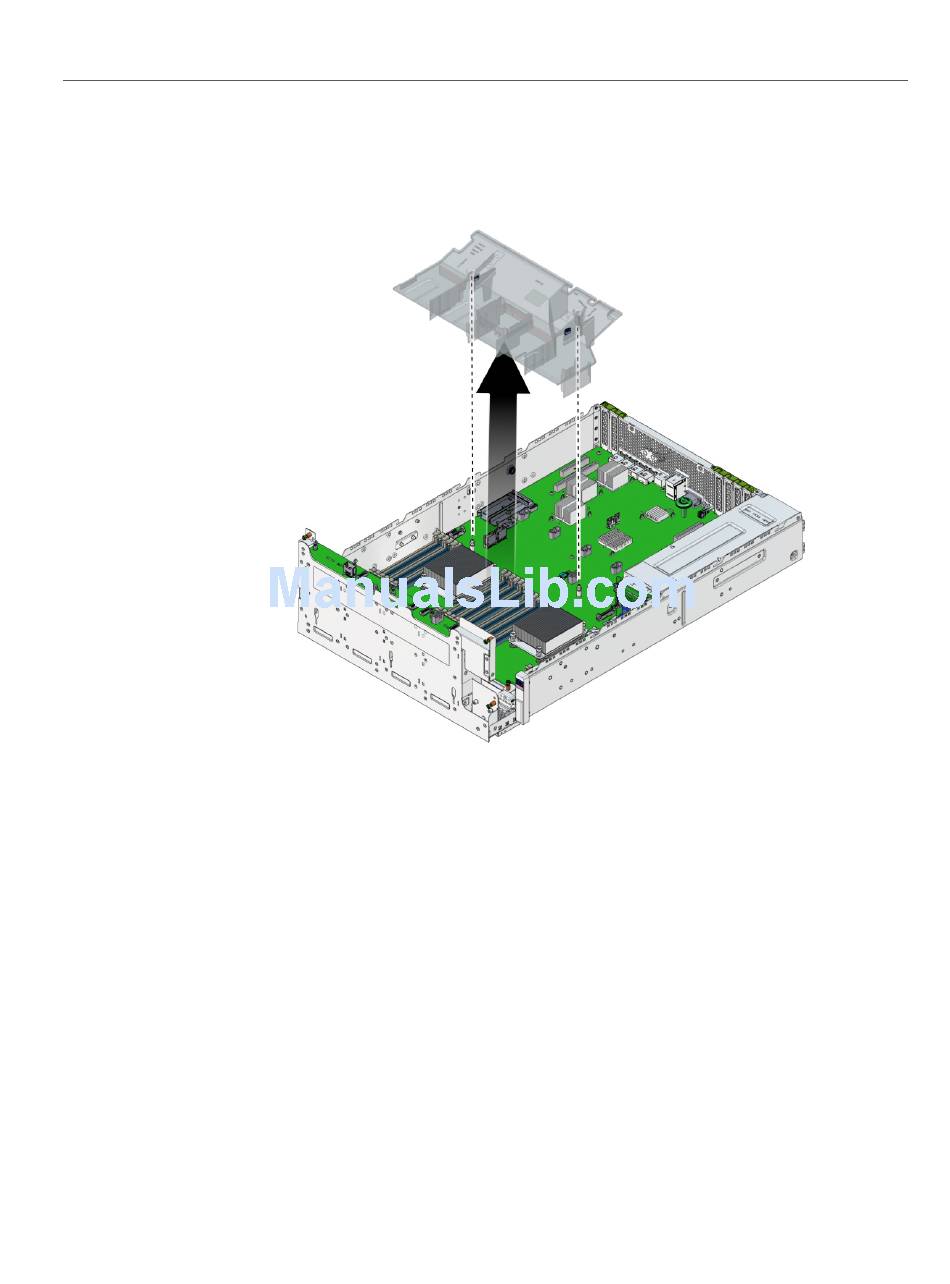

7. Lift the air duct straight up and off the alignment pins.
8. Set the air duct aside.
Consider your next step.
9.
See:
"Servicing DIMMs" on page 159
■
"Servicing the LED Board" on page 217
■
Related Information
"Rotate the Drive Cage to the Service Position" on page 71
■
"Install the PSU Duct" on page 240
■
"Install the Air Duct" on page 236
■
