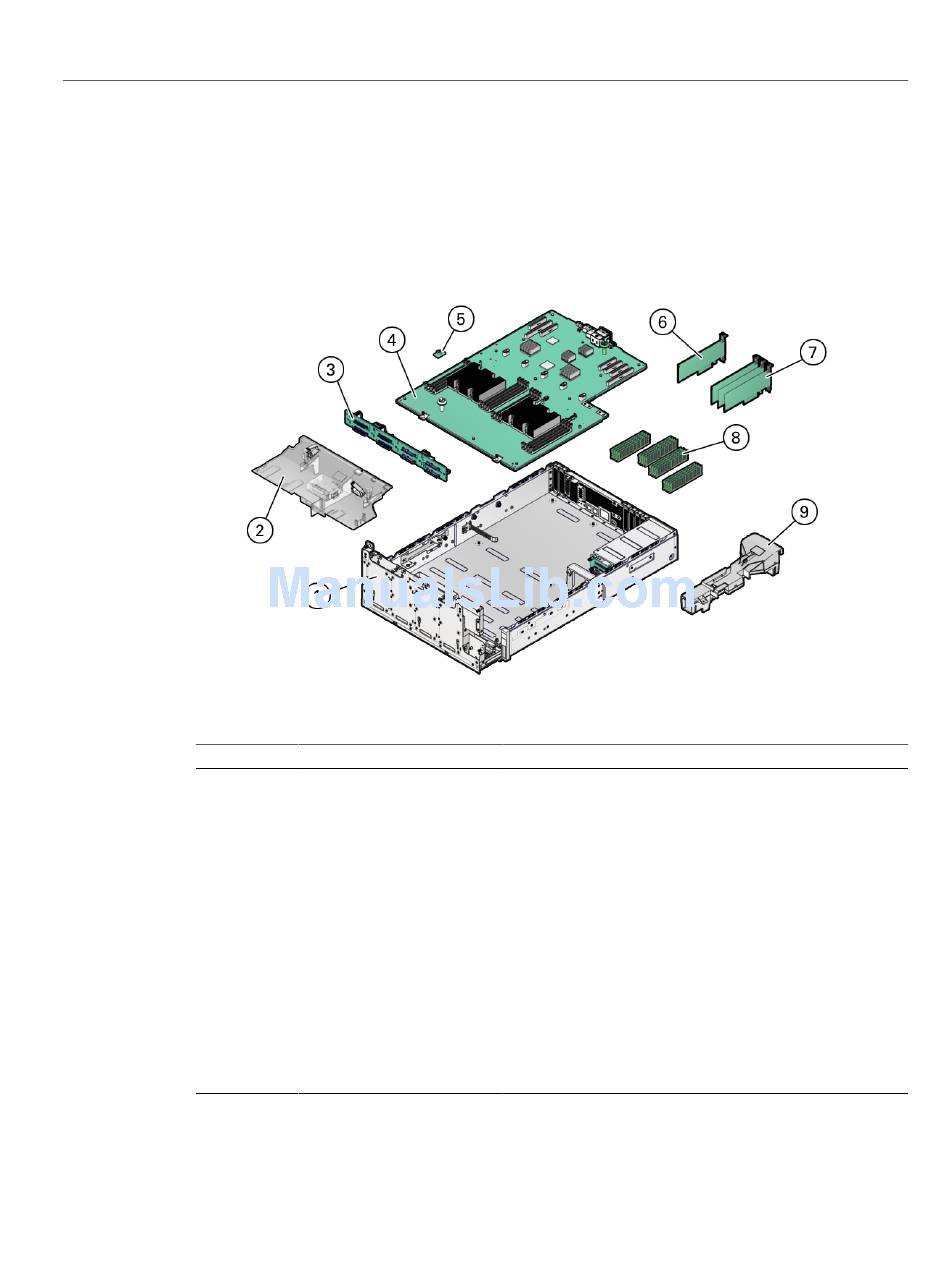

Component Locations (Motherboard, Memory, and PCIe Cards)

Component Locations (Motherboard, Memory, and PCIe
Cards)
No.
1
2
3
4
5
6
7
8
9
16 Netra SPARC S7-2 Server Service Manual • February 2017
Name
Drive cage
Air duct
Drive backplane
Motherboard
eUSB board
HBA PCIe card
PCIe cards
DIMMs
PSU duct
Service Links
"Rotate the Drive Cage to the Service Position" on page 71
"Secure the Drive Cage" on page 241
"Remove the Air Duct" on page 75
"Install the Air Duct" on page 236
"Servicing the Drive Backplane" on page 117
"Servicing the Motherboard" on page 225
"Servicing the eUSB Drive" on page 103
"Servicing the Internal HBA PCIe Card" on page 179
"Servicing PCIe Cards" on page 169
"Servicing DIMMs" on page 159
"Remove the PSU Duct" on page 74
"Install the PSU Duct" on page 240
