Oracle Netra SPARC S7-2 Service Manual page 126

Remove the DVD Drive
1. Prepare for service, including powering down the server.
See "Preparing for Service" on page
2. Remove any media from the DVD drive.
3. Follow the steps in
4. Remove the filter.
See "Remove the Filter" on page
Disconnect the HDD backplane cables.
5.

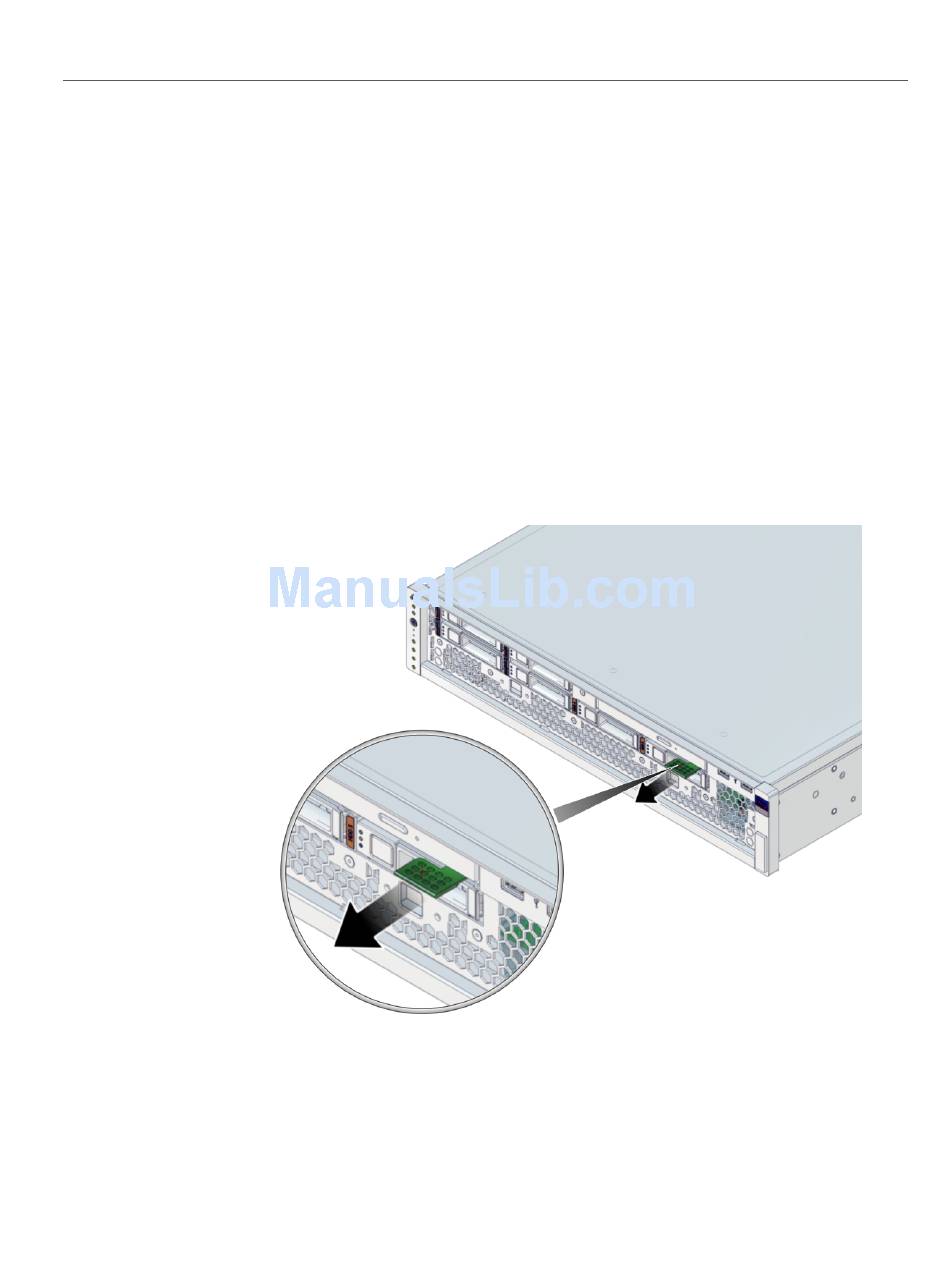

6. Pull the plunger on the DVD component, then remove the DVD component.
126 Netra SPARC S7-2 Server Service Manual • February 2017
43.
"Rotate the Drive Cage to the Service Position" on page
79.
71.
