Install the Filter

Install the Filter
Installing the air filter is a hot-swap operation. You do not need to power off the server before
installing the air filter.
1. If you need to remove an existing air filter, go to
Filter" on page

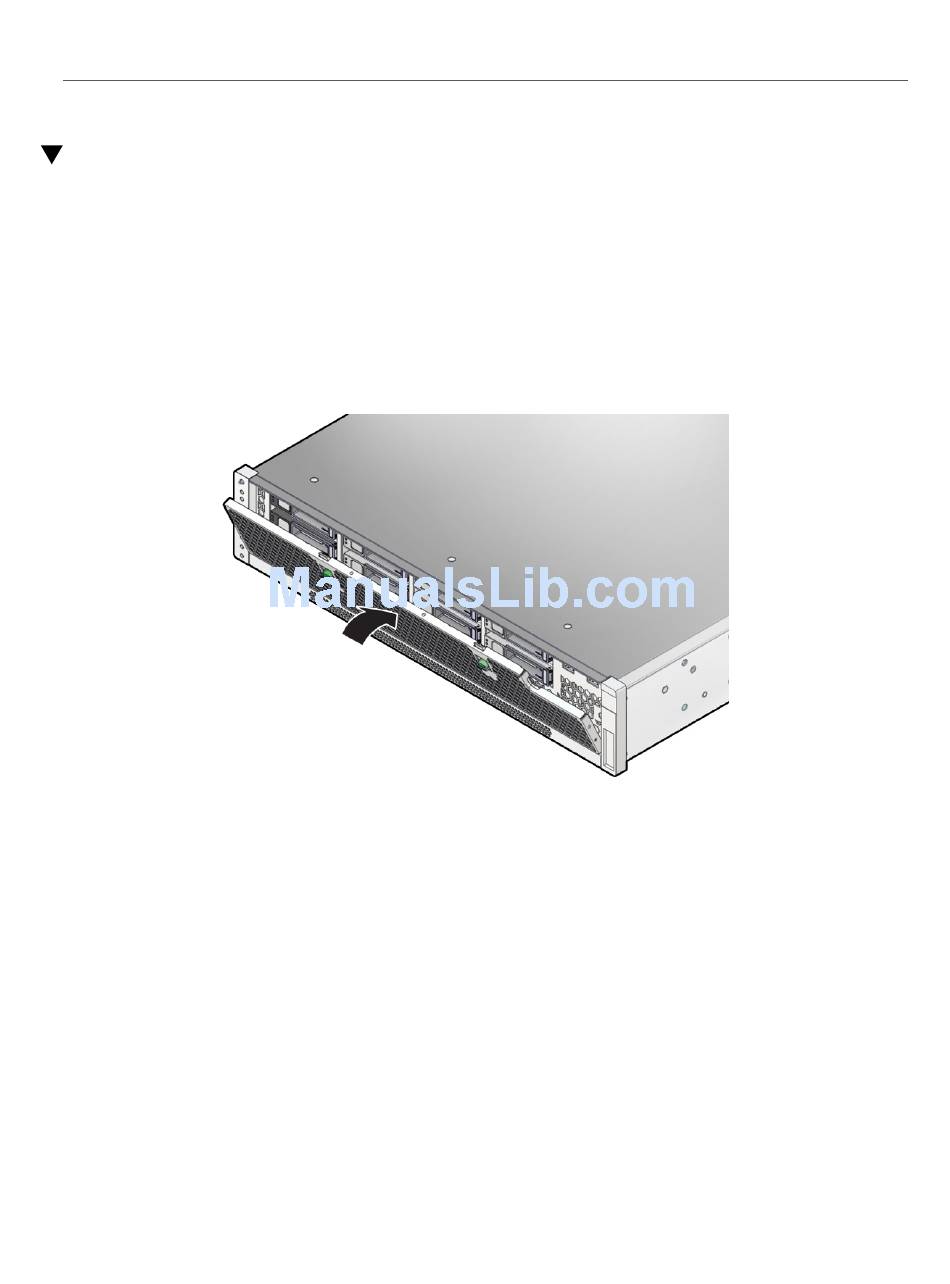

2. Set the bottom edge of the air filter into the lip at the front of the server.
The left and right release levers are facing forward.
Tilt and pivot the air filter to vertical position.
3.
The release levers snap the air filter into place.
4. If you installed the air filter as part of another component's removal or
installation procedure, return to that procedure.
See "Component Service Task Reference" on page 47
Related Information
"Remove the Filter" on page 79
■
82 Netra SPARC S7-2 Server Service Manual • February 2017
79.
"Remove the
for assistance.
