Remove HBA SAS Cables

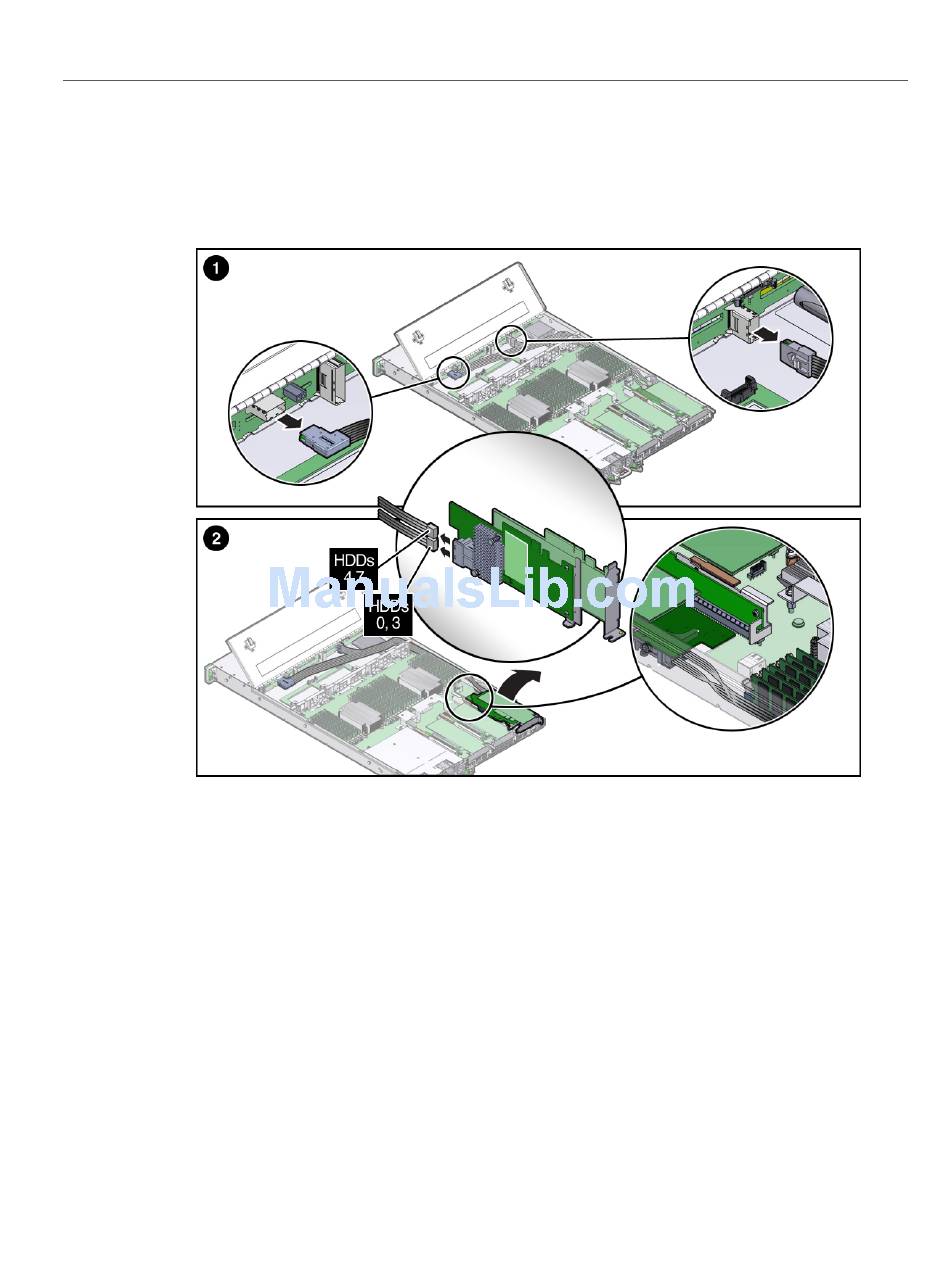

3. To disconnect each SAS cable from the disk backplane, press the latch on the
cable connectors and pull the connectors out (panel 1).
Disconnect the SAS cables from the internal HBA.
4.
On the under side of the HBA card, press the SAS cable connector latches, then pull out the
connectors (panel 2).
Carefully remove the SAS cables and the super capacitor cable from the server.
5.
Related Information
"Install HBA SAS Cables" on page 213
■
