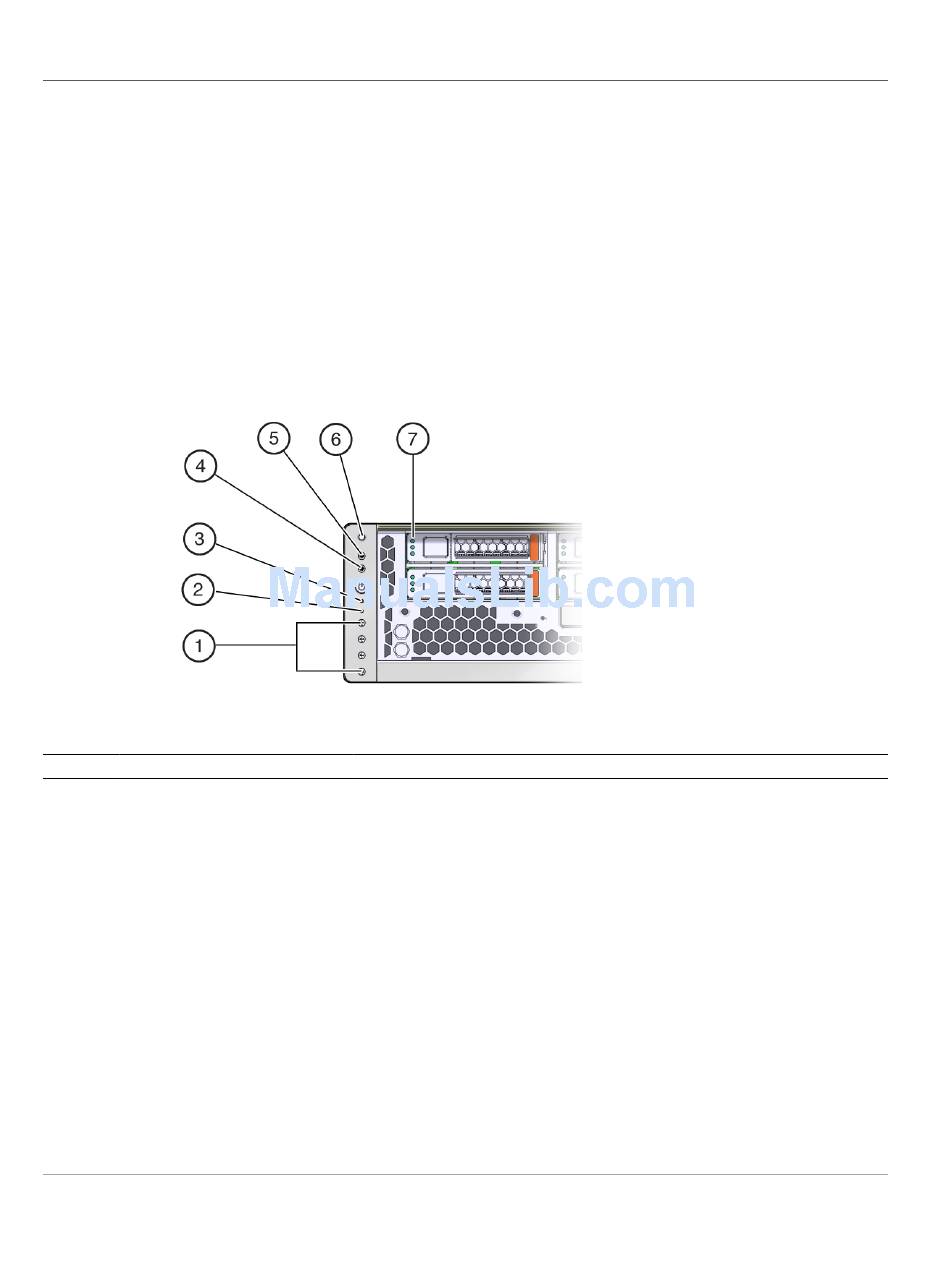

Front Panel LEDs

No. LED
1 Alarm LEDs:
■ Critical Alarm LED (red)
■ Major Alarm LED (red)
■ Minor Alarm LED (amber)
■ User Alarm LED (amber)
2 Rear Power Supply Status LED
(amber)
3 SP Status LED
4 OK LED (green)
Description
Indicates a critical alarm condition.
Indicates a major alarm condition.
Indicates a minor alarm condition.
Indicates a user alarm condition.
Indicates the state of the power supplies:
■ Off – Indicates a steady state, no service action is required.
■ On – Indicates a fault with one of the power supplies.
Indicates the state of the SP:
■ Green flashing – Indicates the SP is booting.
■ Green steady – Indicates the SP booted and OK , no service action is required.
Indicates these conditions:
■ Off – Indicates that the server is not running in its normal state. Server power might
be off. The SP might be running.
■ Steady on – Indicates that the server is powered on and is running in its normal
operating state. No service actions are required.
Interpreting Diagnostic LEDs
