Remove NVMe Cables

Remove NVMe Cables
Replacing the cable assembly is a cold-service procedure that must be performed by qualified
service personnel. The server must be completely powered down before performing this
procedure.
1. Prepare for service.
See "Preparing for Service" on page
2. Disconnect the NVMe cables from the motherboard and front storage drive
backplane.
Take a photograph or note the cable routing and order, for use later when installing the
Tip -
cables.

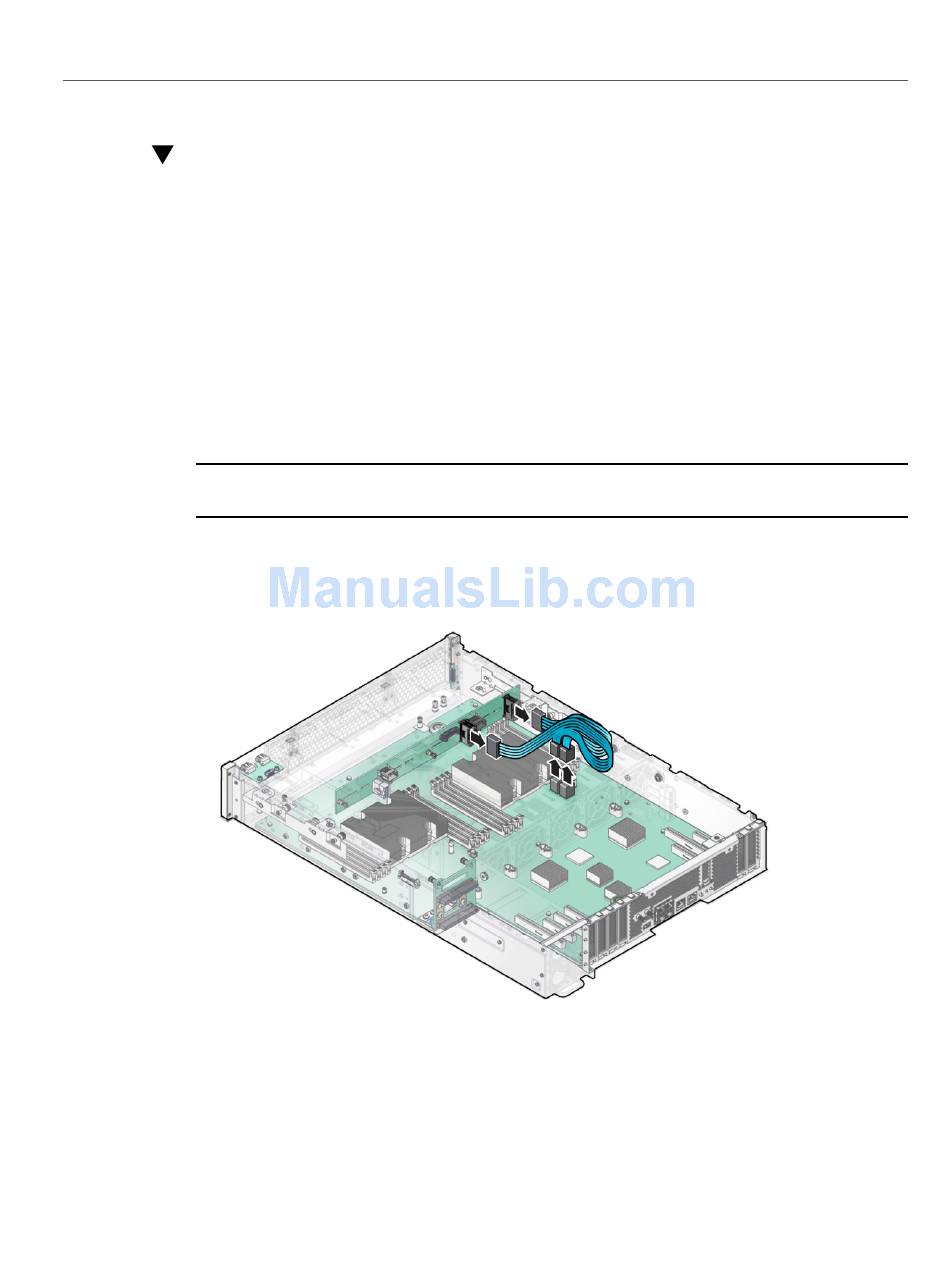

Press each latch, then pull out to disengage the cable from each connector.
3. Remove the SAS cables from the backplane.
See "Remove the SAS Drive Signal Cable" on page 196
Cables" on page
208 Netra SPARC S7-2 Server Service Manual • February 2017
43.
211.
and "Remove HBA SAS
